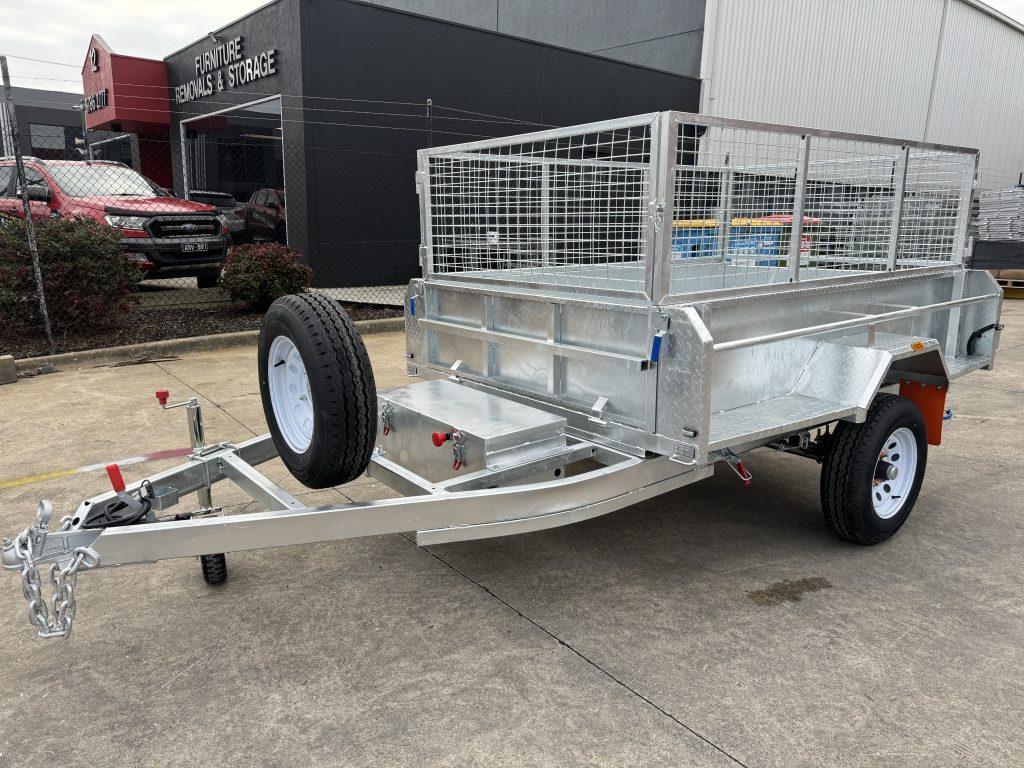

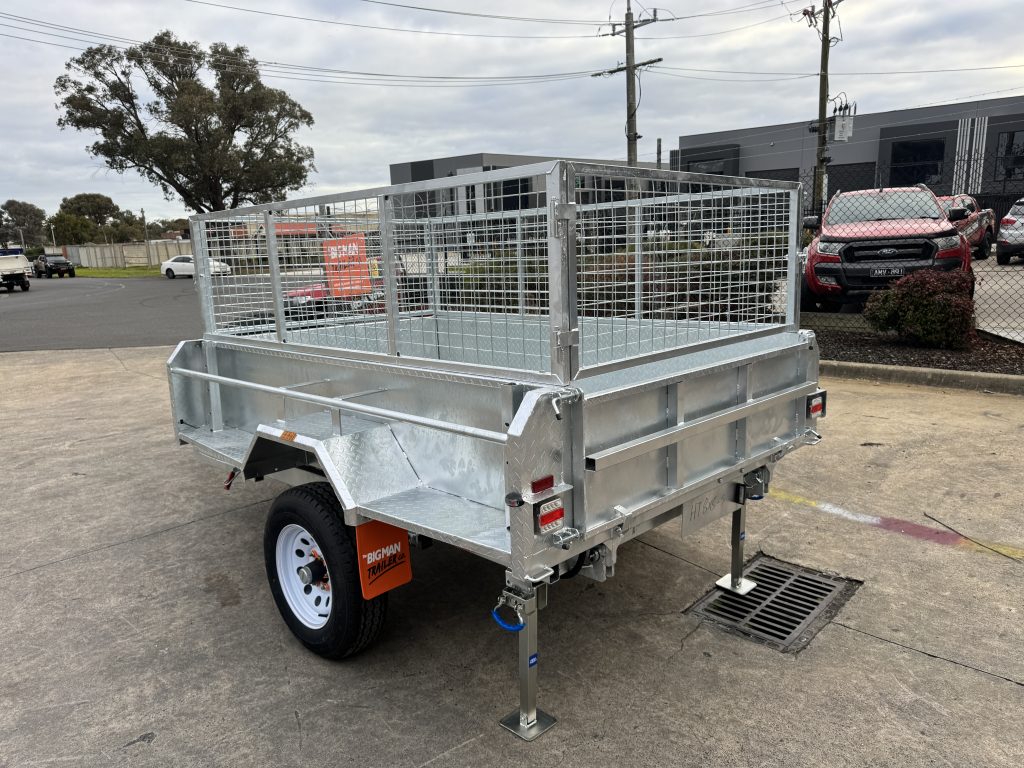

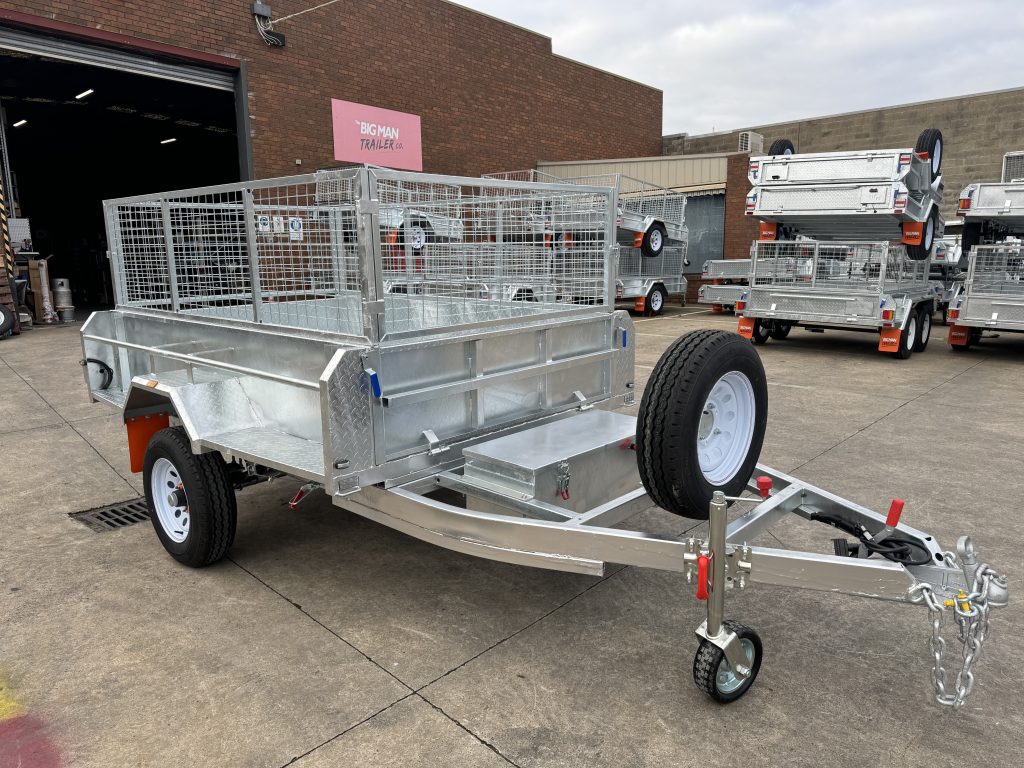

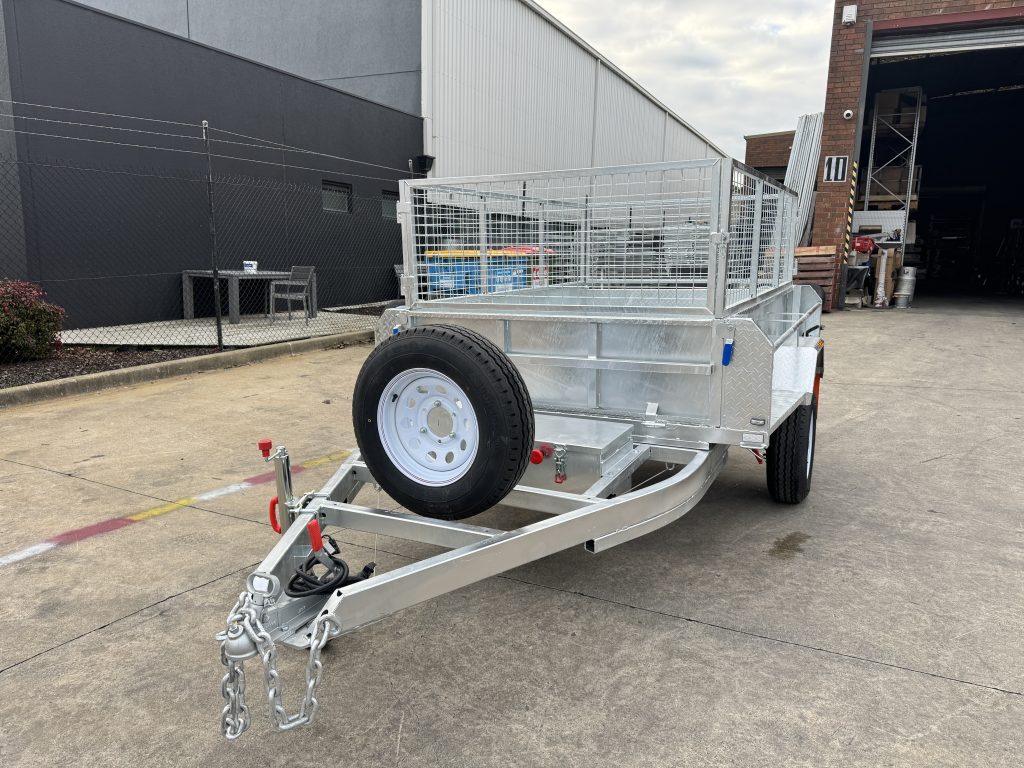

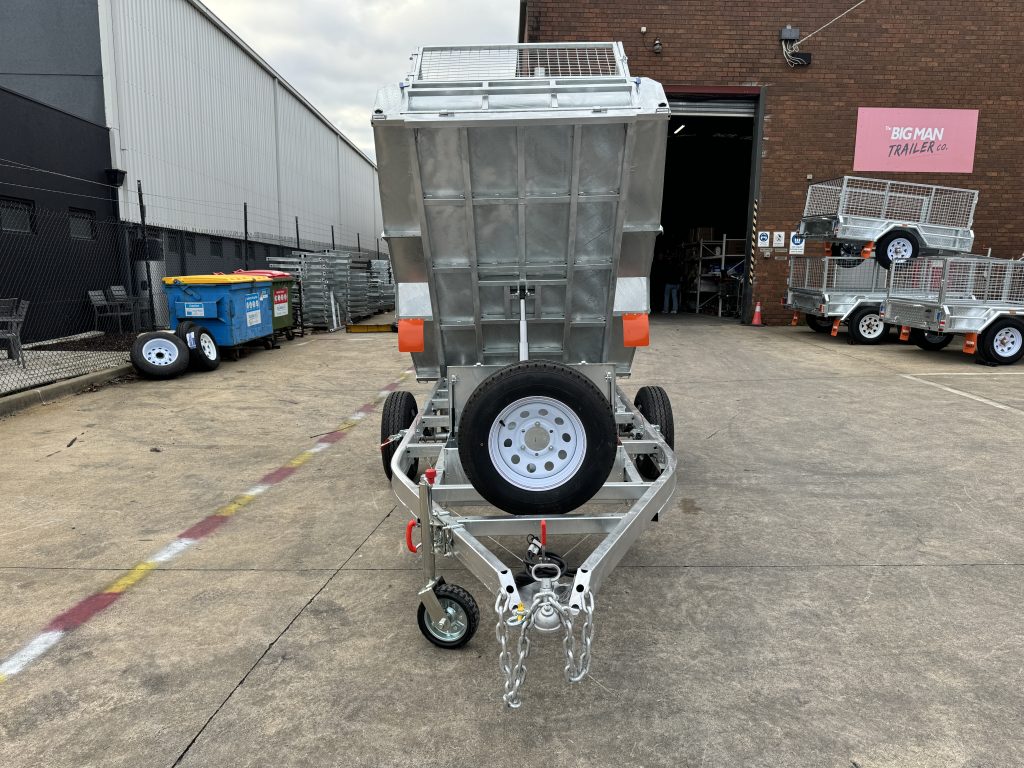

8x5 Single Axle Tipper Trailer

Name: 8x5 Single Axle Tipper Trailer
SKU: HT85S
Availability: InStock

SKU: HT85S

$6,199.00

(Delivery fees and handling charges may apply to particular models when picking up from NSW, SA, WA and TAS)

Need finance or layby option?

*Terms & conditions apply.

PROMO CODE DOES NOT APPLY FOR THIS PRODUCT

User Manual

Enquire about a model

Feature

About the 8x5 Single Axle Tipper Trailer

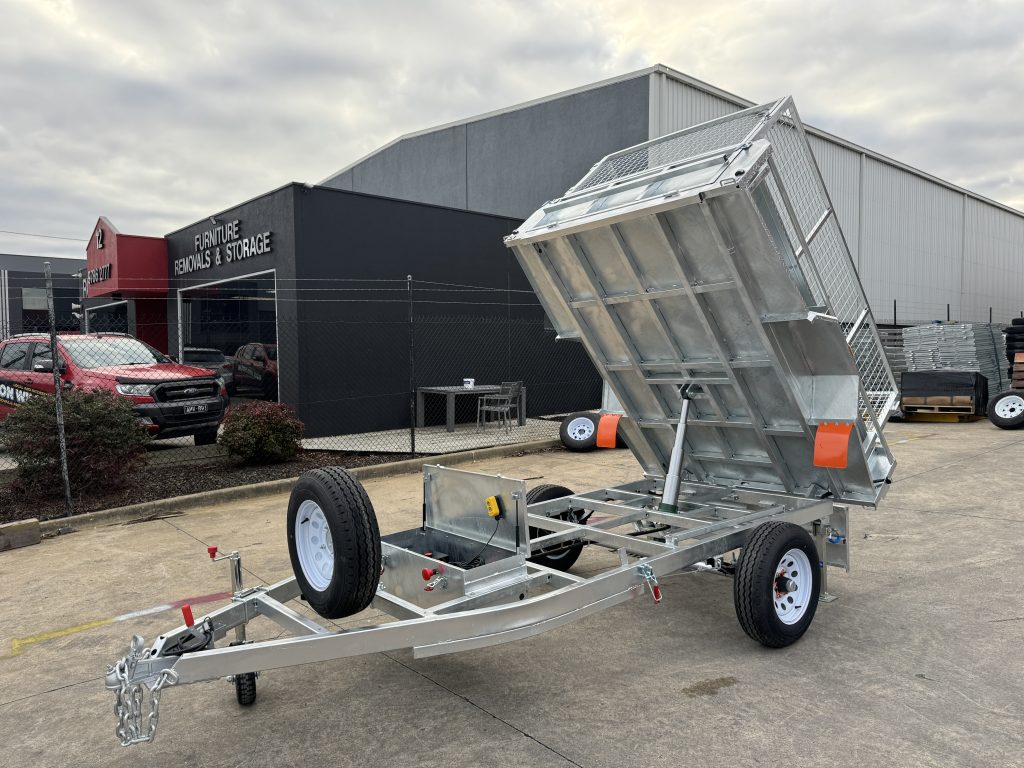

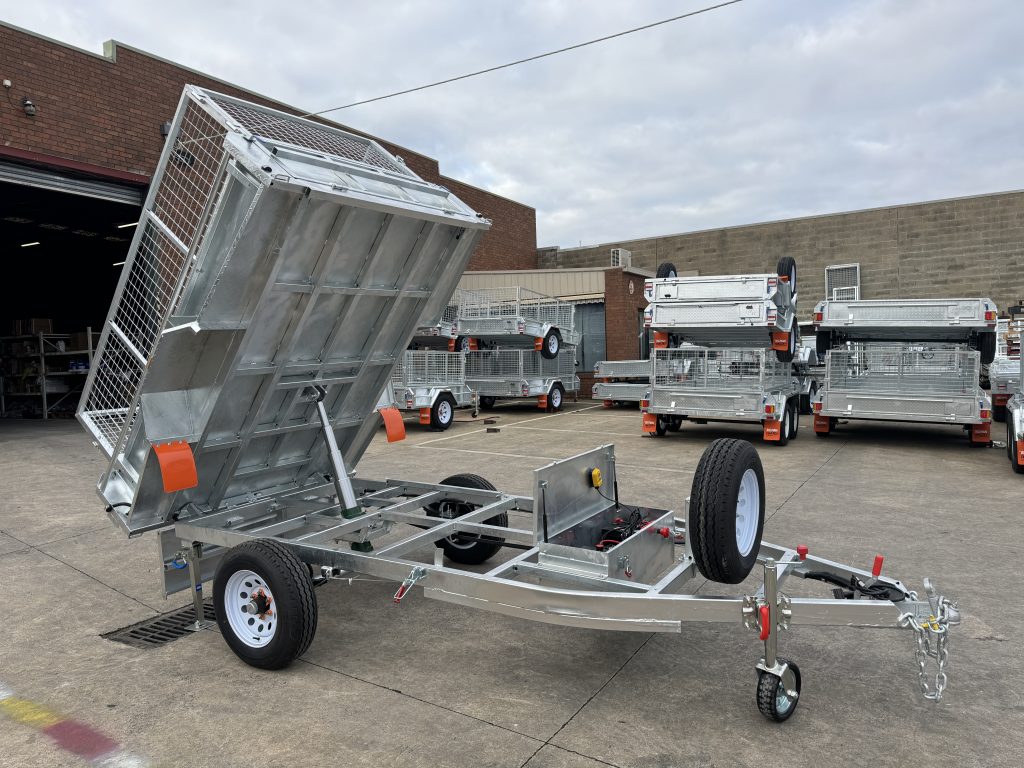

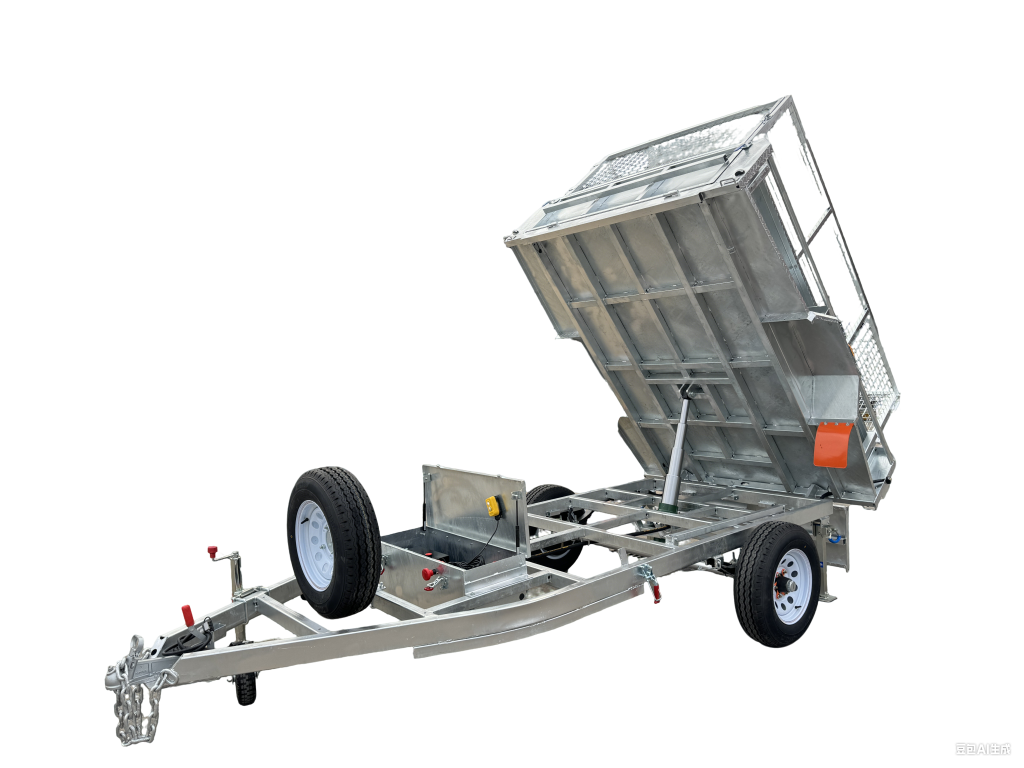

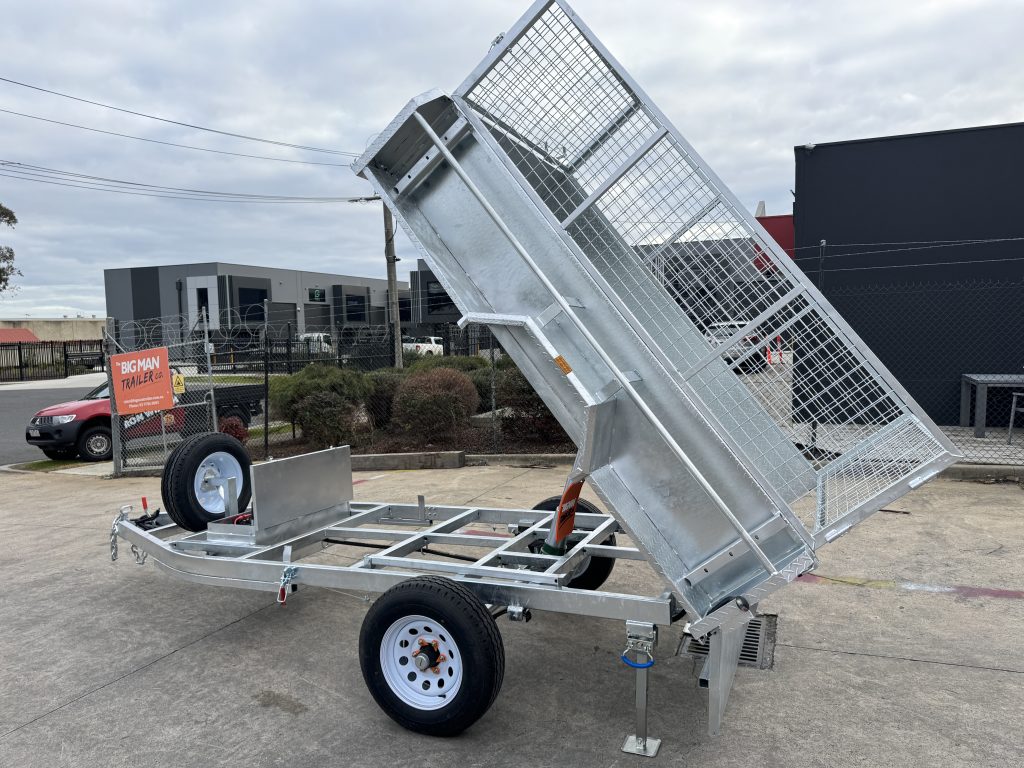

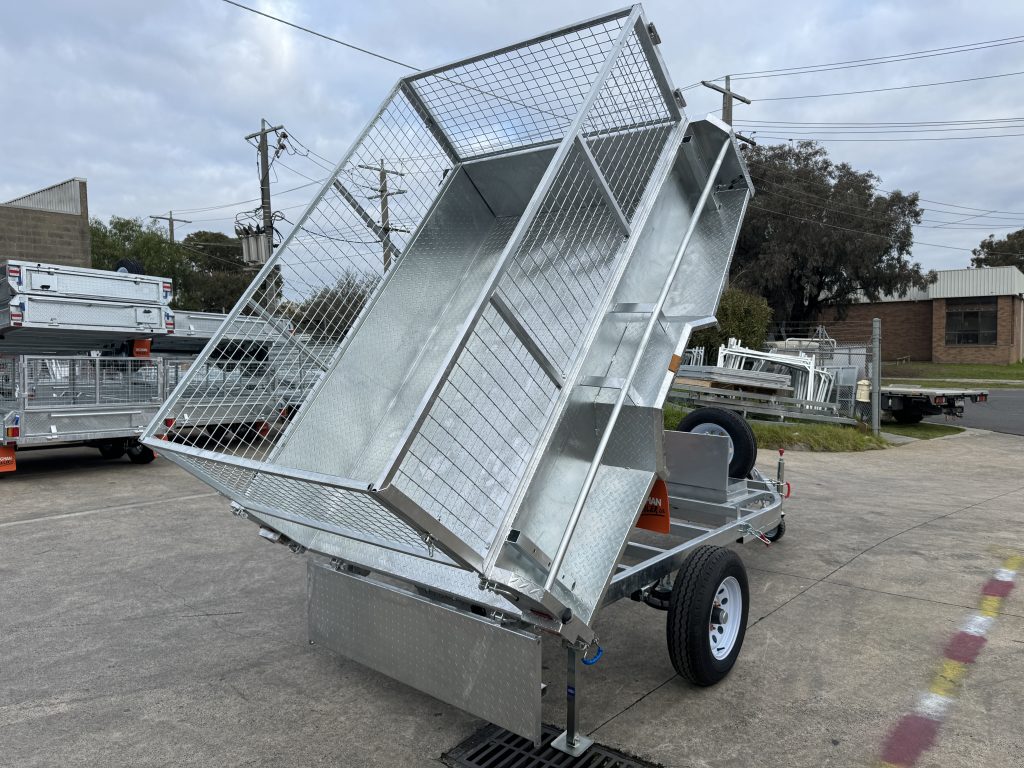

Need to dump rubbish, soil, or loose materials with ease? Our single axle tipper trailer takes the hard work out of unloading. With the push of a button, the hydraulic system raises the trailer bed to approximately 65°, letting gravity do the heavy lifting.

Full body hot-dipped galvanised (including inside the rails) for maximum corrosion resistance
1800kg ATM – ideal for medium-duty tipping tasks
Single axle design for easier maneuverability

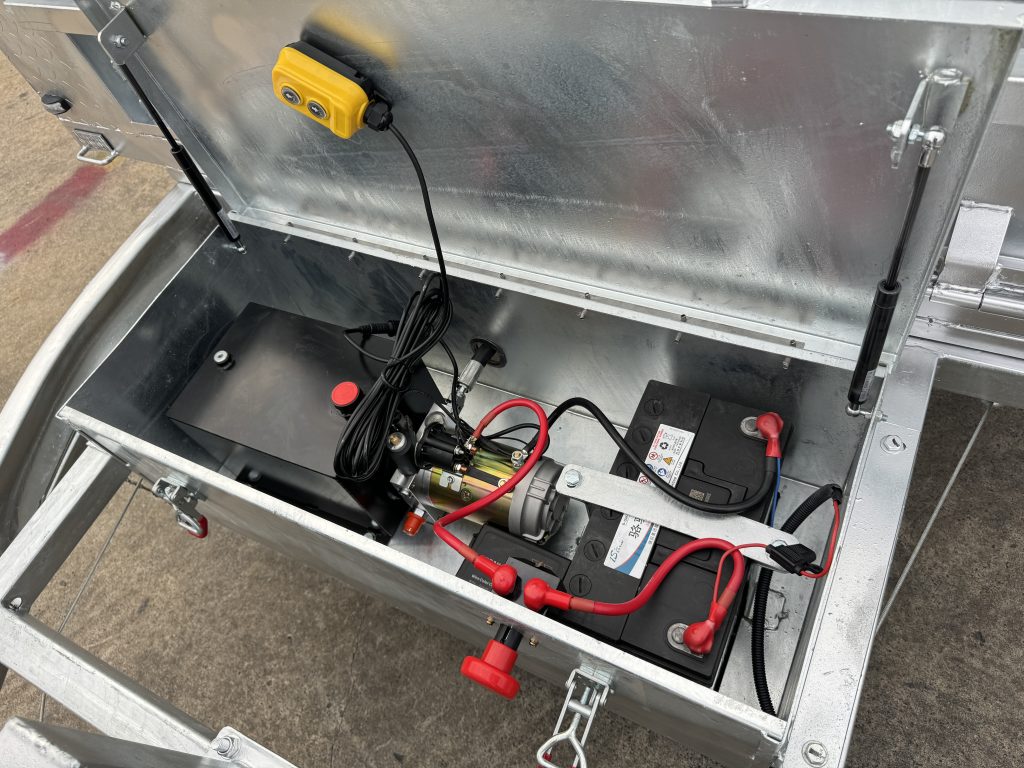

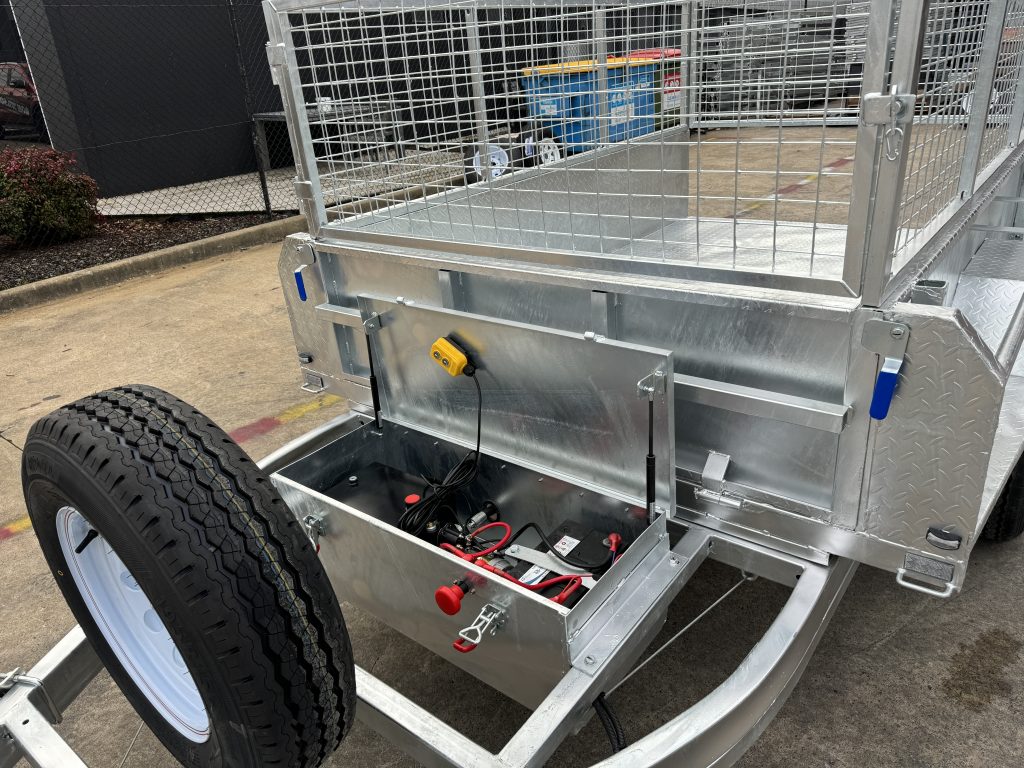

Hydraulic lift system with battery pack – remote controlled

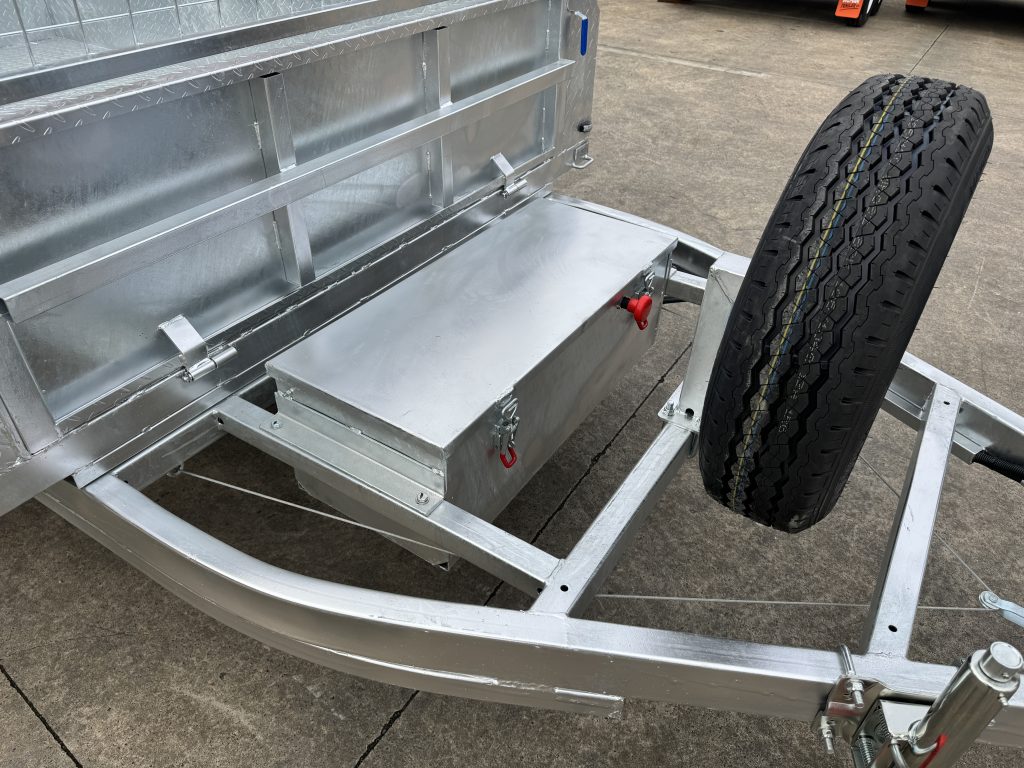

One-piece, fully welded heavy-duty chassis

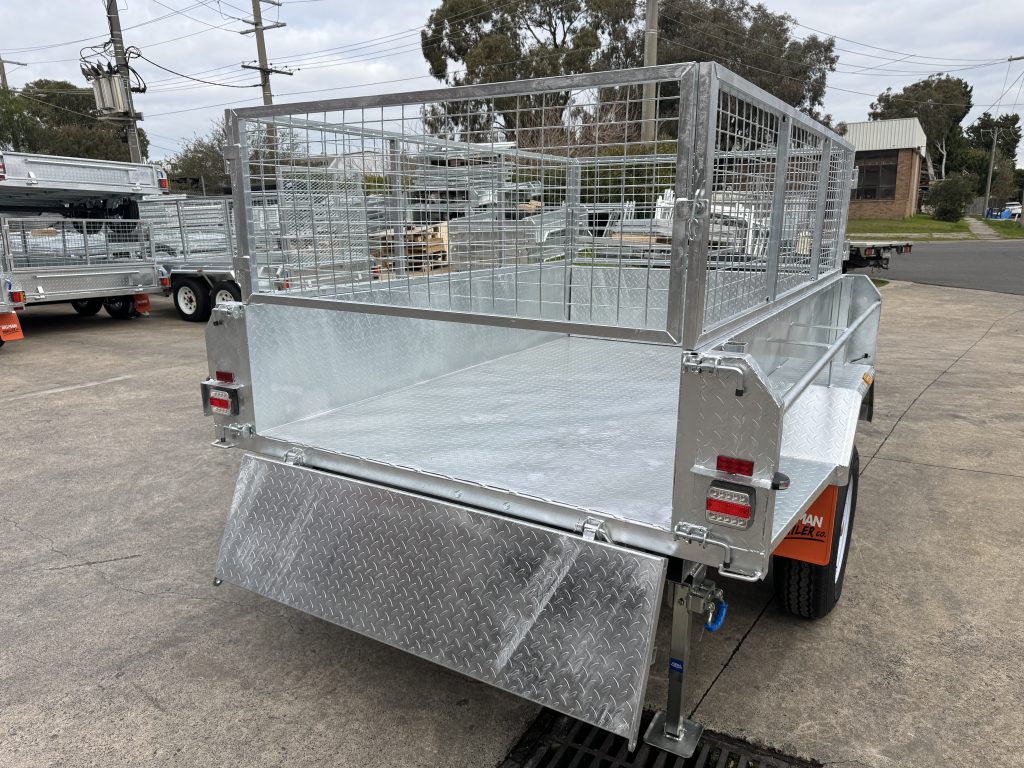

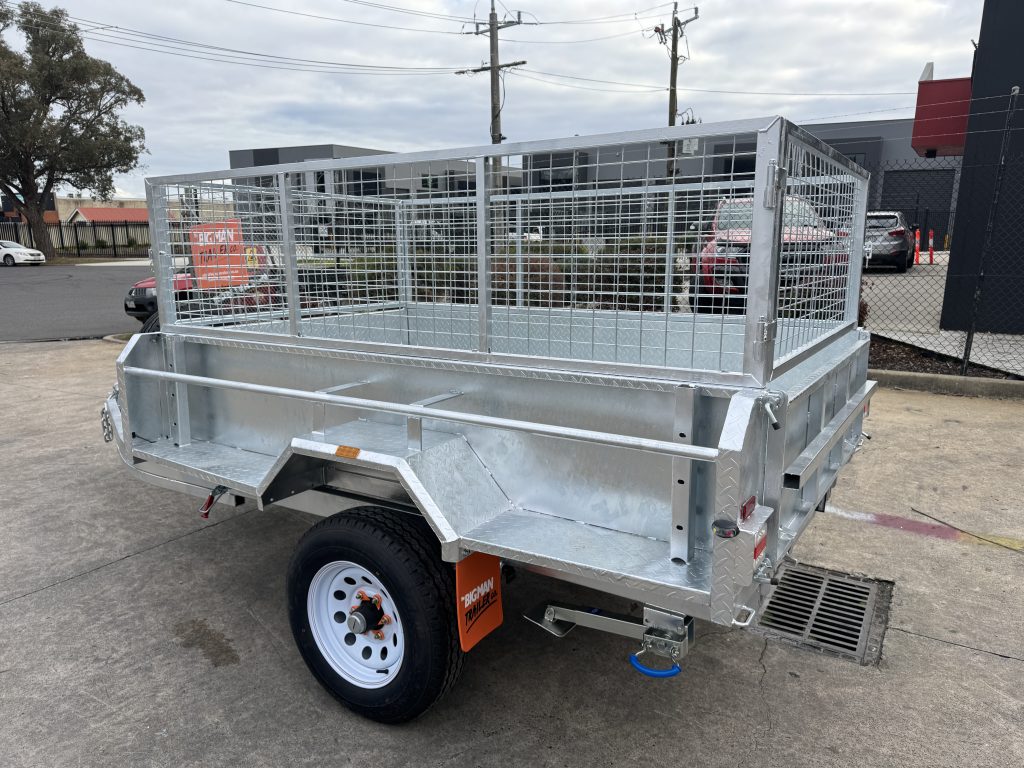

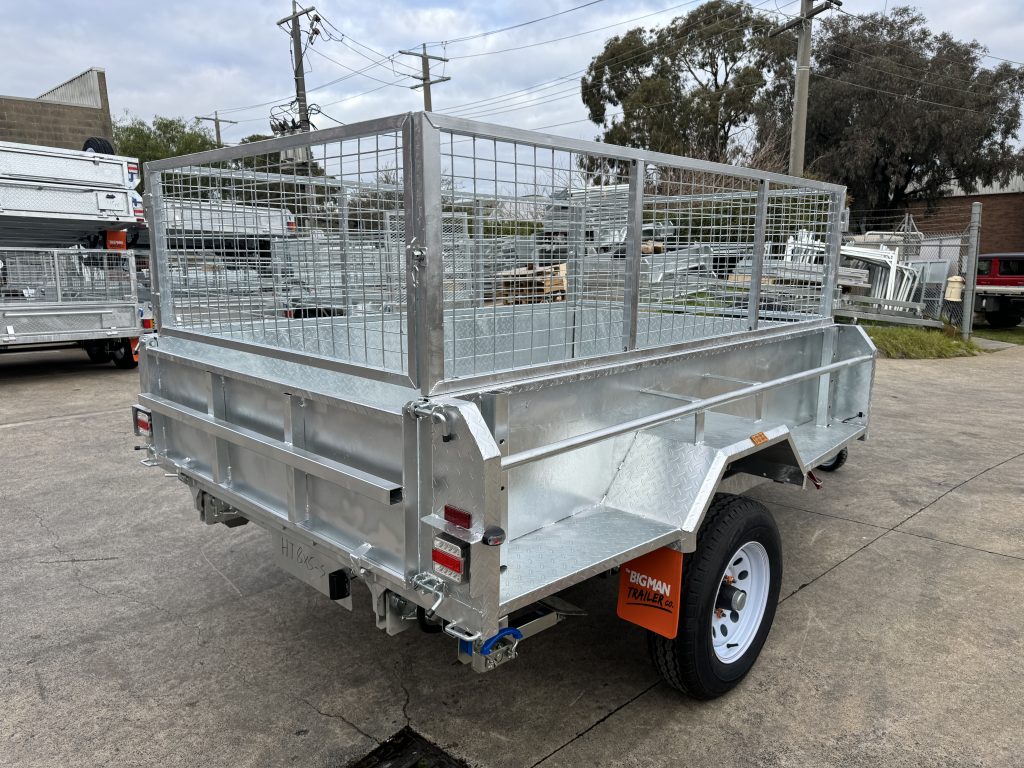

450mm deep side walls with removable 600mm cage
Checker plate flooring for durability

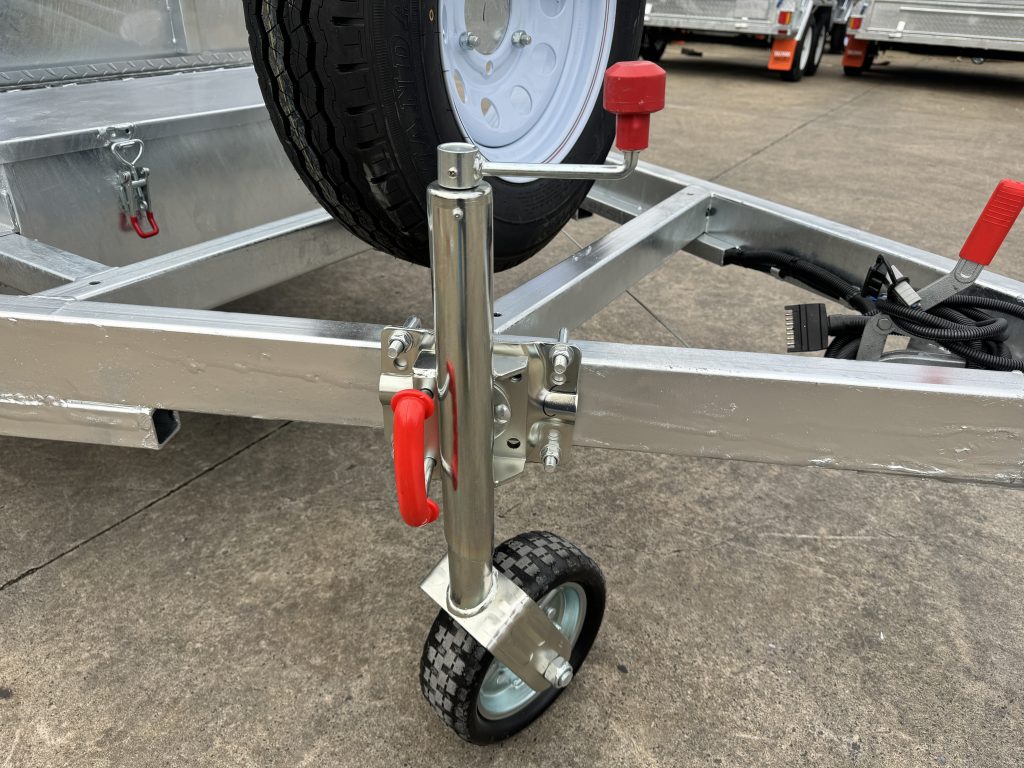

10” heavy-duty jockey wheel

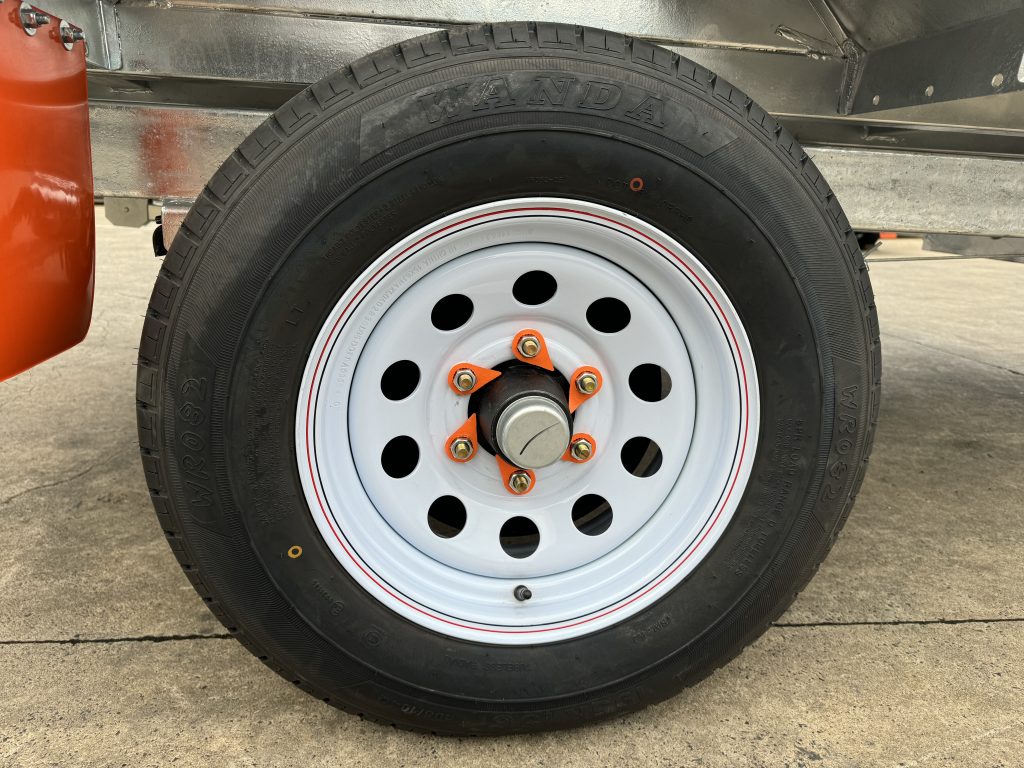

Brand new 15” Sunraysia rims with 195 light truck tyres
1800mm drawbar for better towing stability

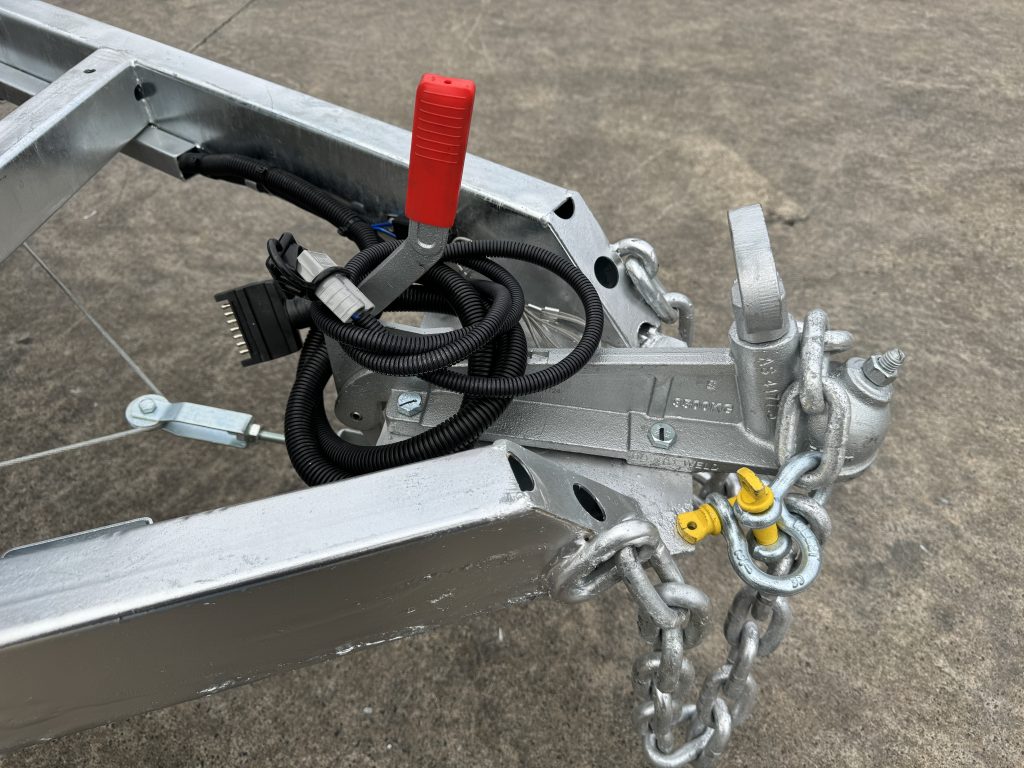

Breakaway unit fitted for safety compliance
7-pin flat plug for easy connection
Wheel nut indicators included
Backed by a 24-month structural warranty

Specification

Item Number	HT85S
Trailer Size	8’ x 5’
Drawbar	100x50x3mm
Internal Size	2420mm x 1500mm
Surface Finish	Hot Dipped Galvanised
Colour	Silver
Lights	LED ADR Light

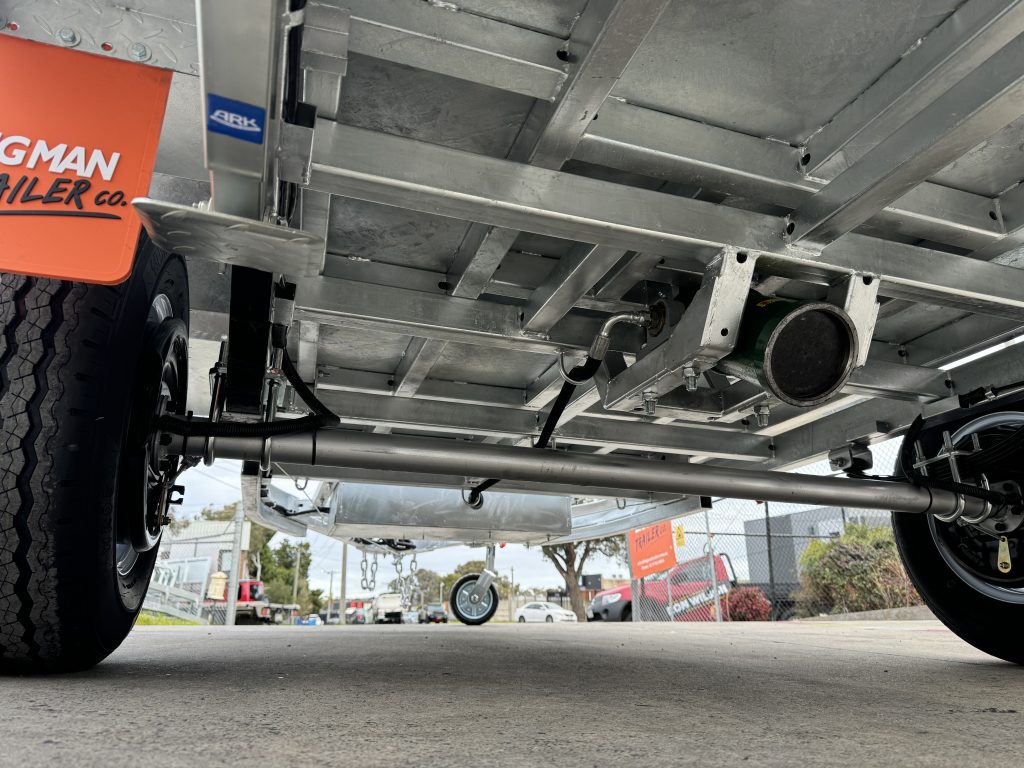

Axle	60mm Solid axle with 2T dexter bearings
ATM	1800kg
Tare Mass	800kg
Jockey Wheel	10” Swivel
Fully Weld	Yes
Checker Plate	Full 2.5mm

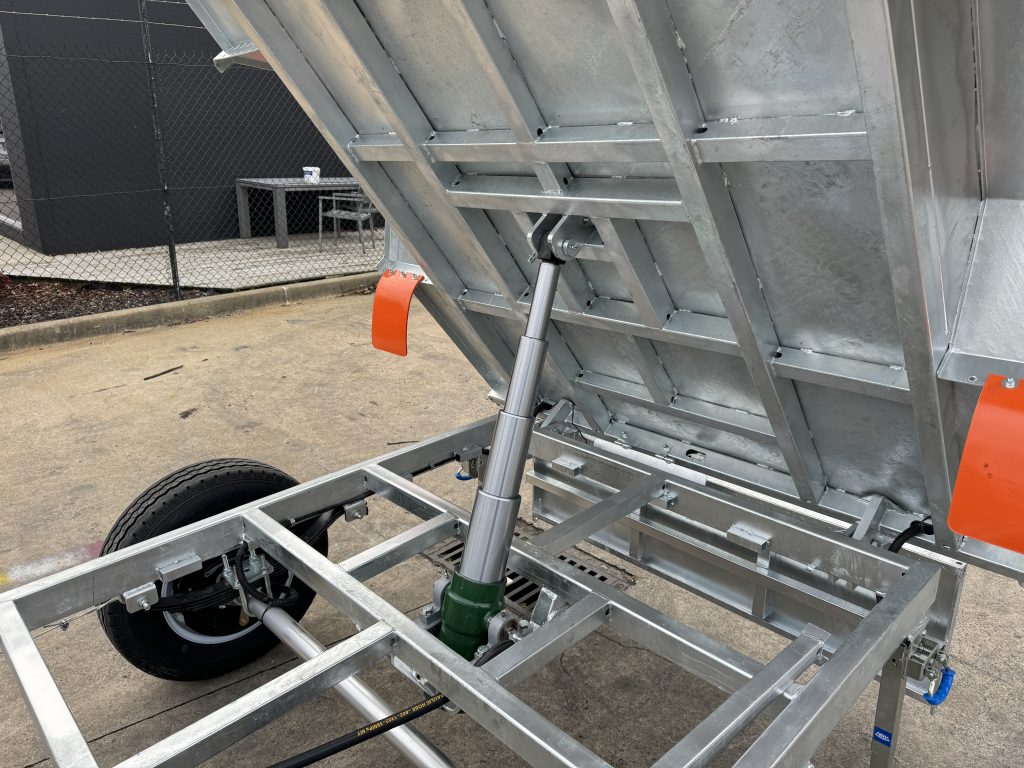

Tilt body	4 stage ram with 4000KG lifting capacity
Side	450mm 2.5mm Fold Up

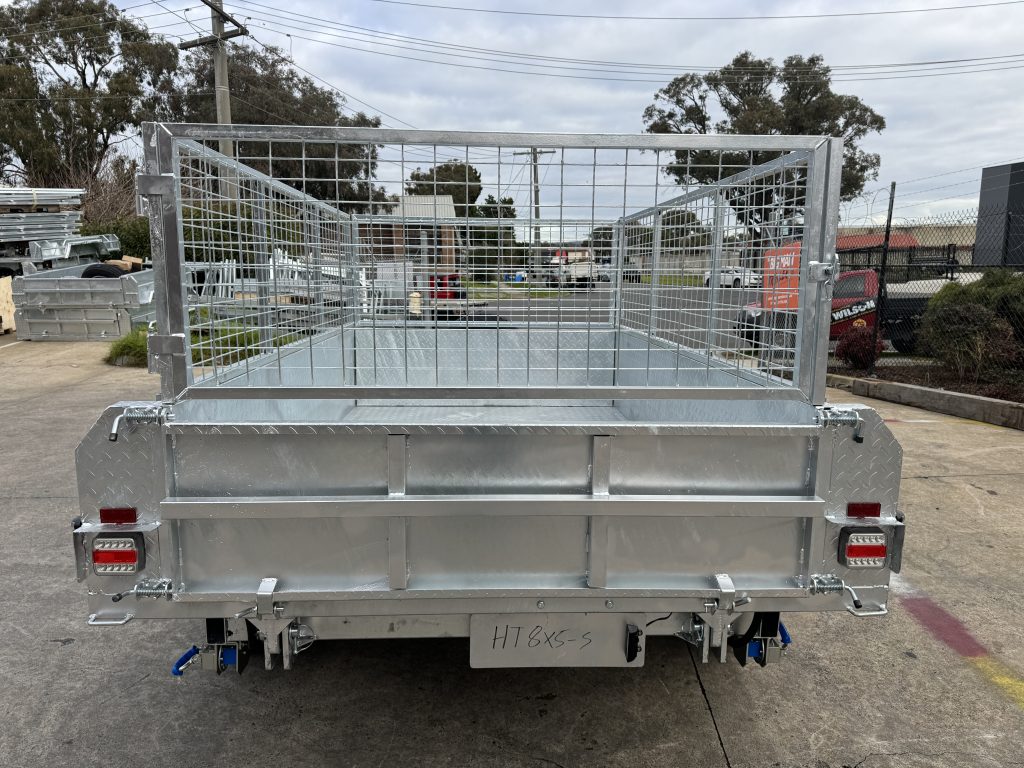

Cage	600mm 30x30mm

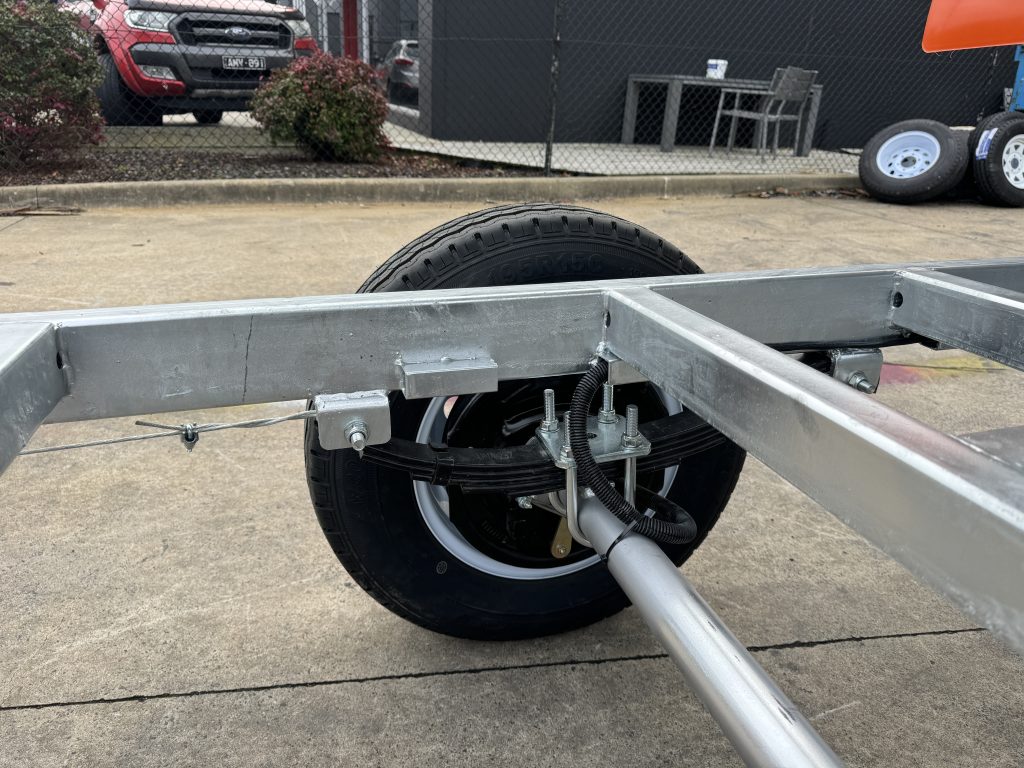

Suspension	5 Leaf Eye & Slipper Spring (10mm)
Cross Beam	70x50x5mm
Support Legs	2 x Load-Bearing Legs, Each 1 Ton Capacity
Wheel & Tyre	195R15C Light Truck
Brake	12 inch electric drum brakes
Warranty	24 Months Structural
