About the 8x5 Carpenter's Tool Trailer - Grey

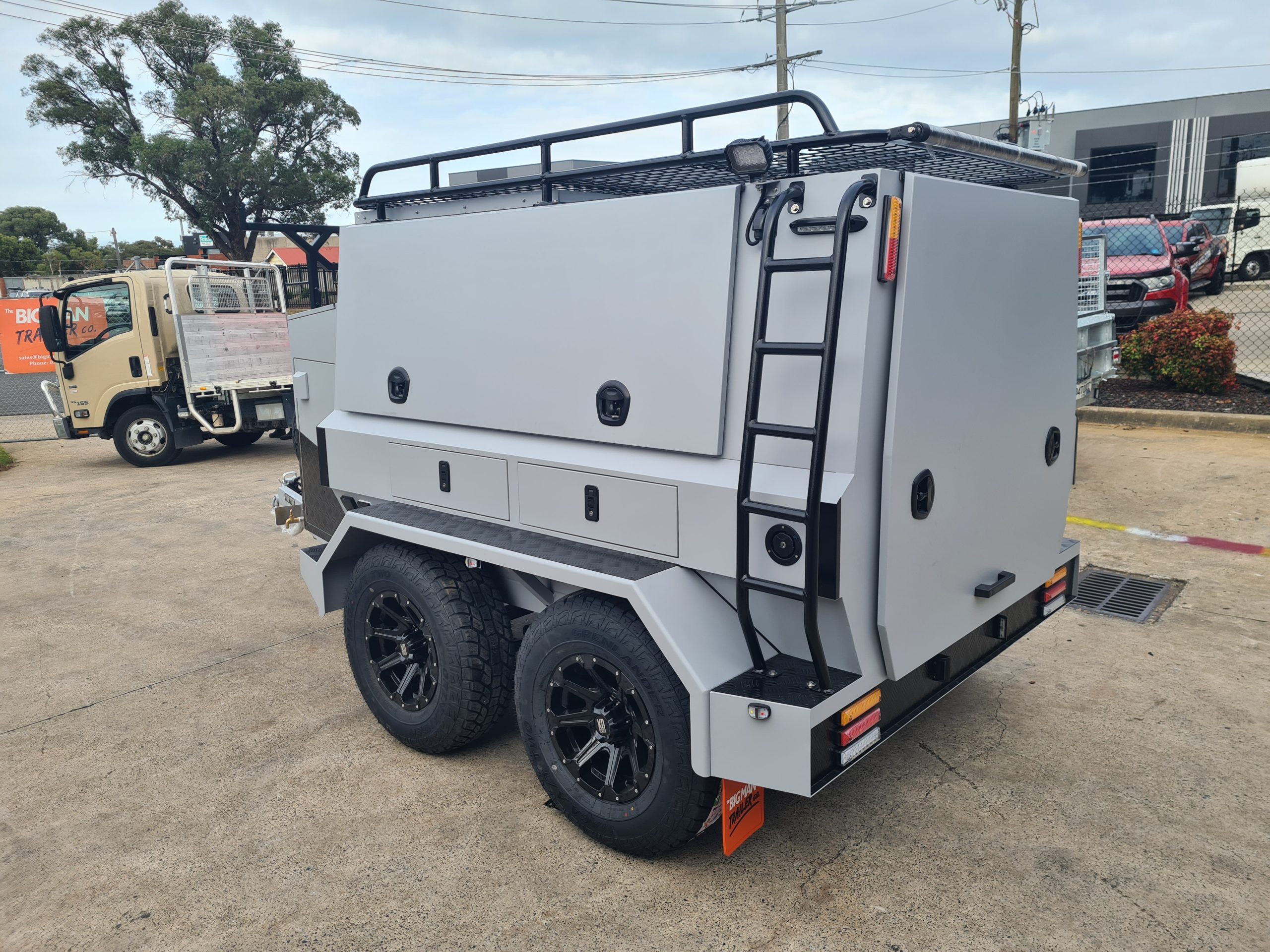

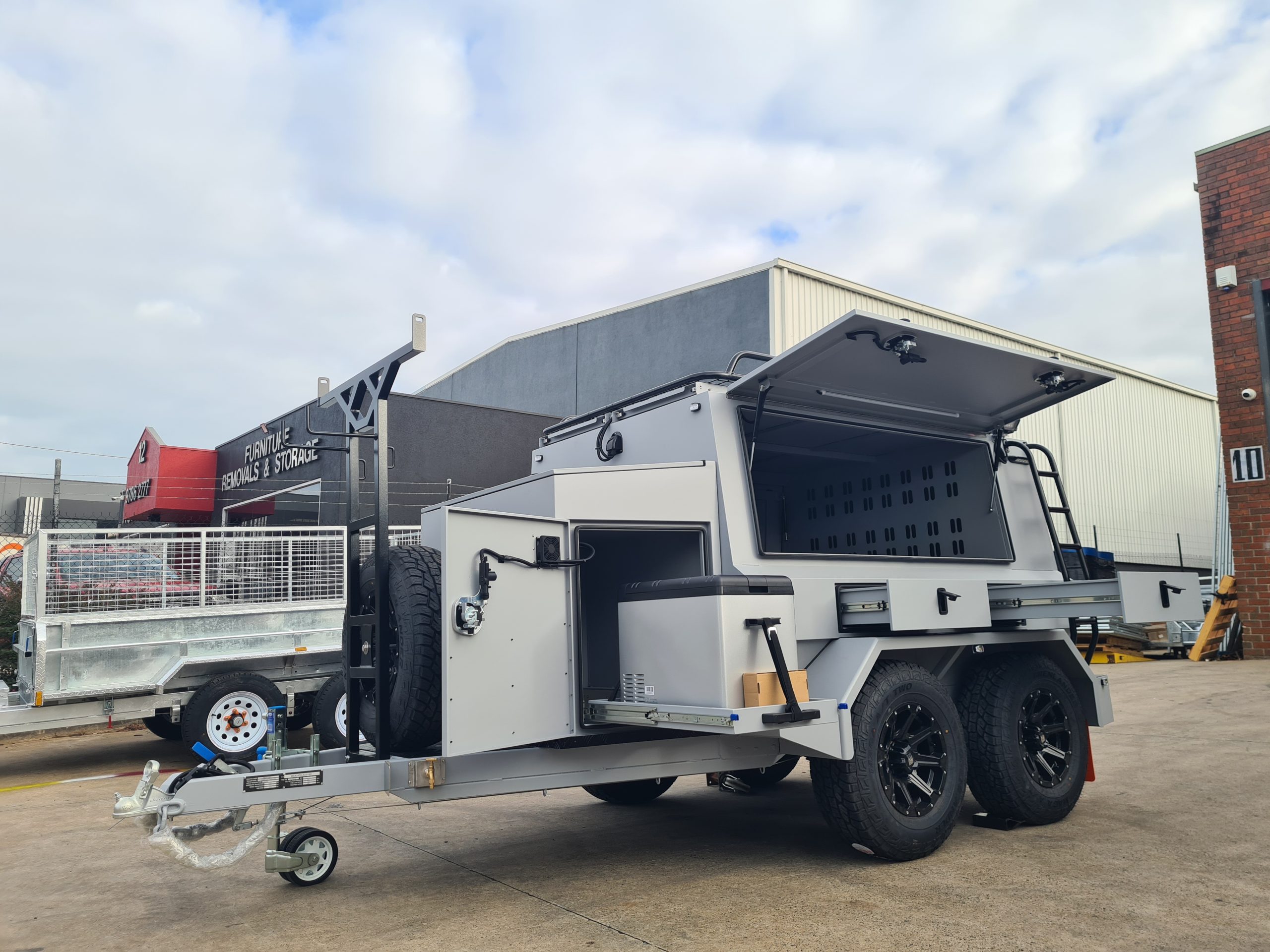

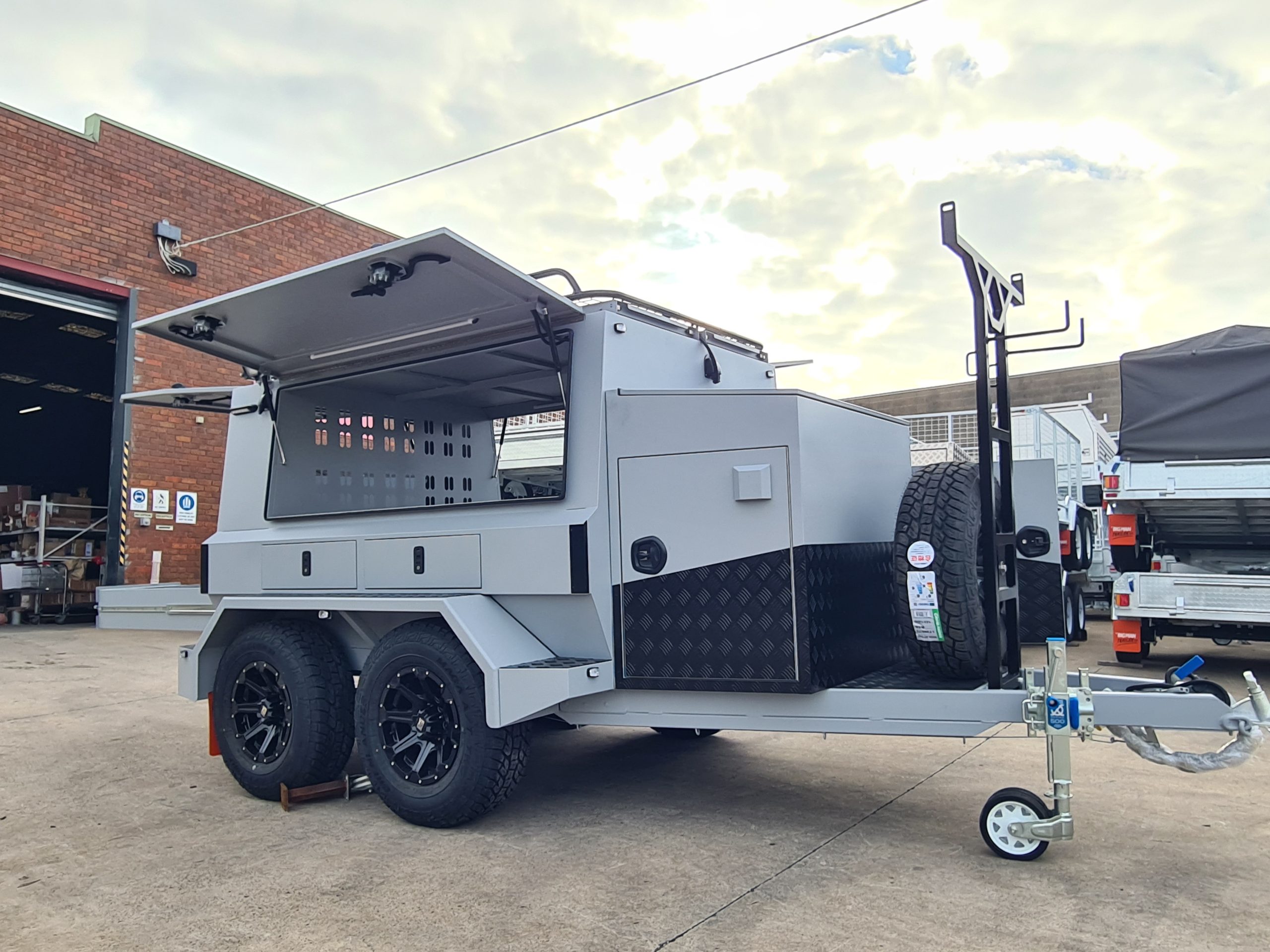

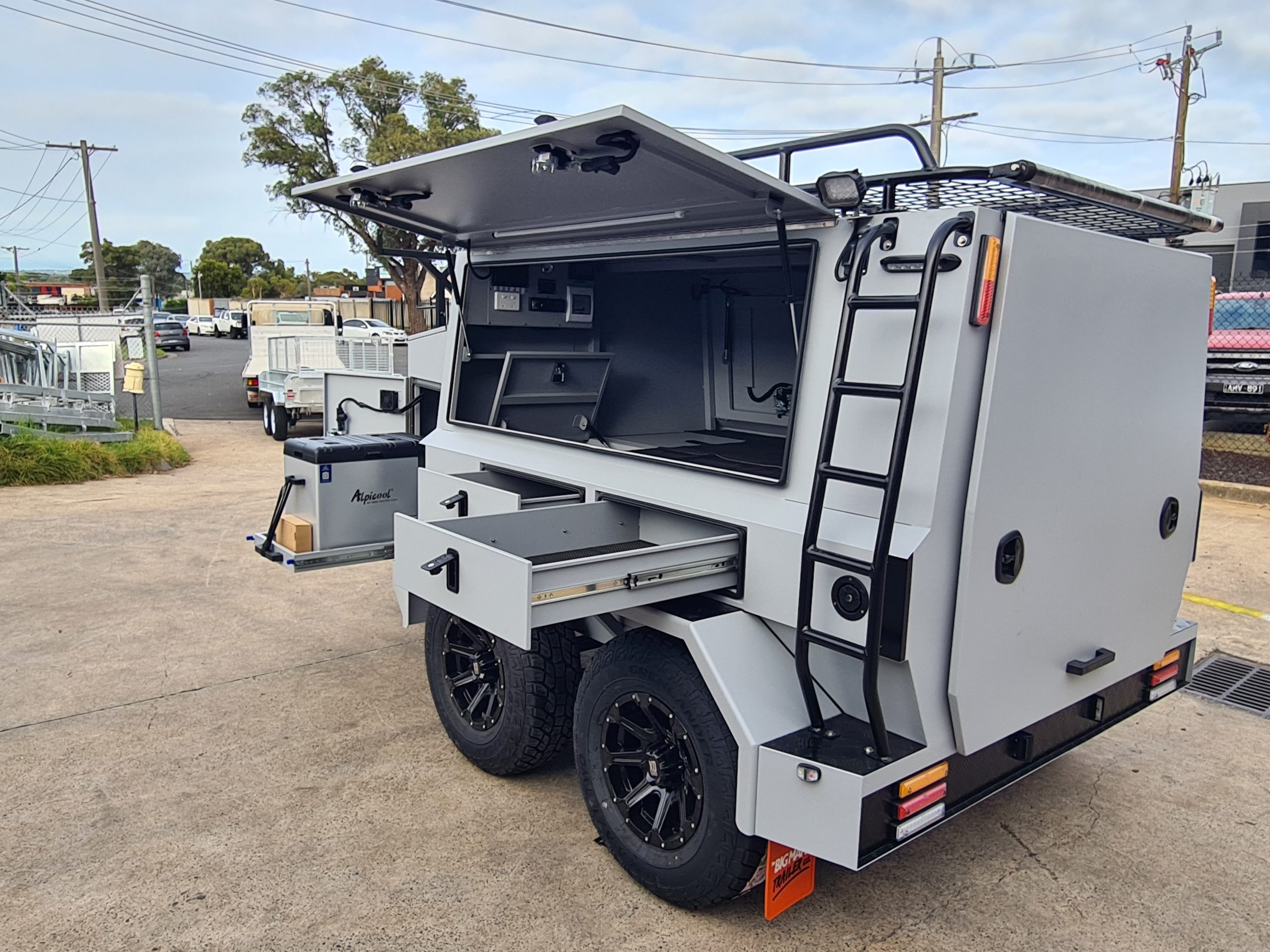

The 8x5 Carpenter's Tool Trailer in Grey is a heavy-duty dual-axle tradesman trailer designed for durability, functionality and convenience. Model TT85GV1 has a tare of 1650KG and an aggregate trailer mass of 3500KG, finished in matt grey with grey checker plate on all step-on areas.
Storage built around the job

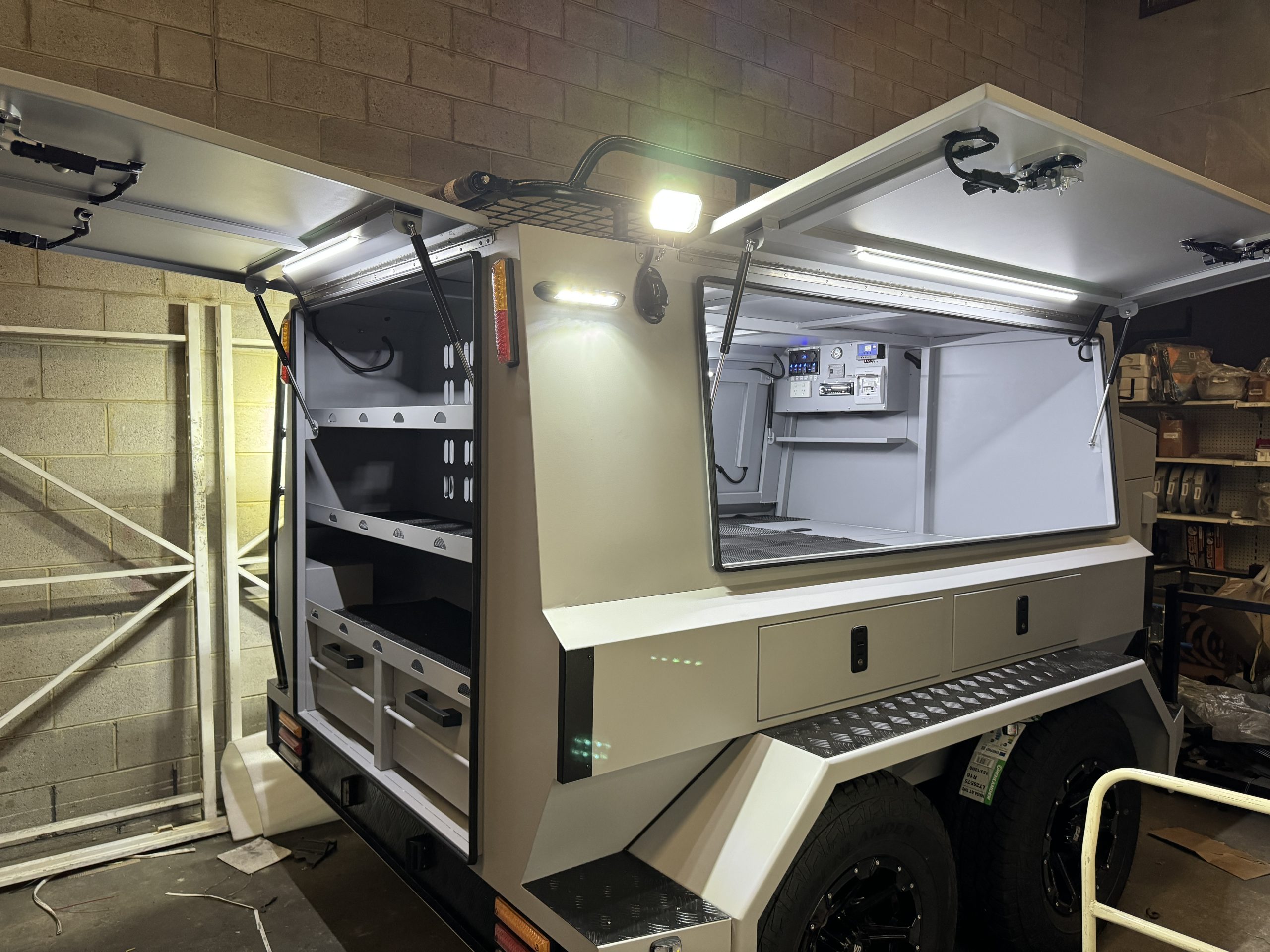

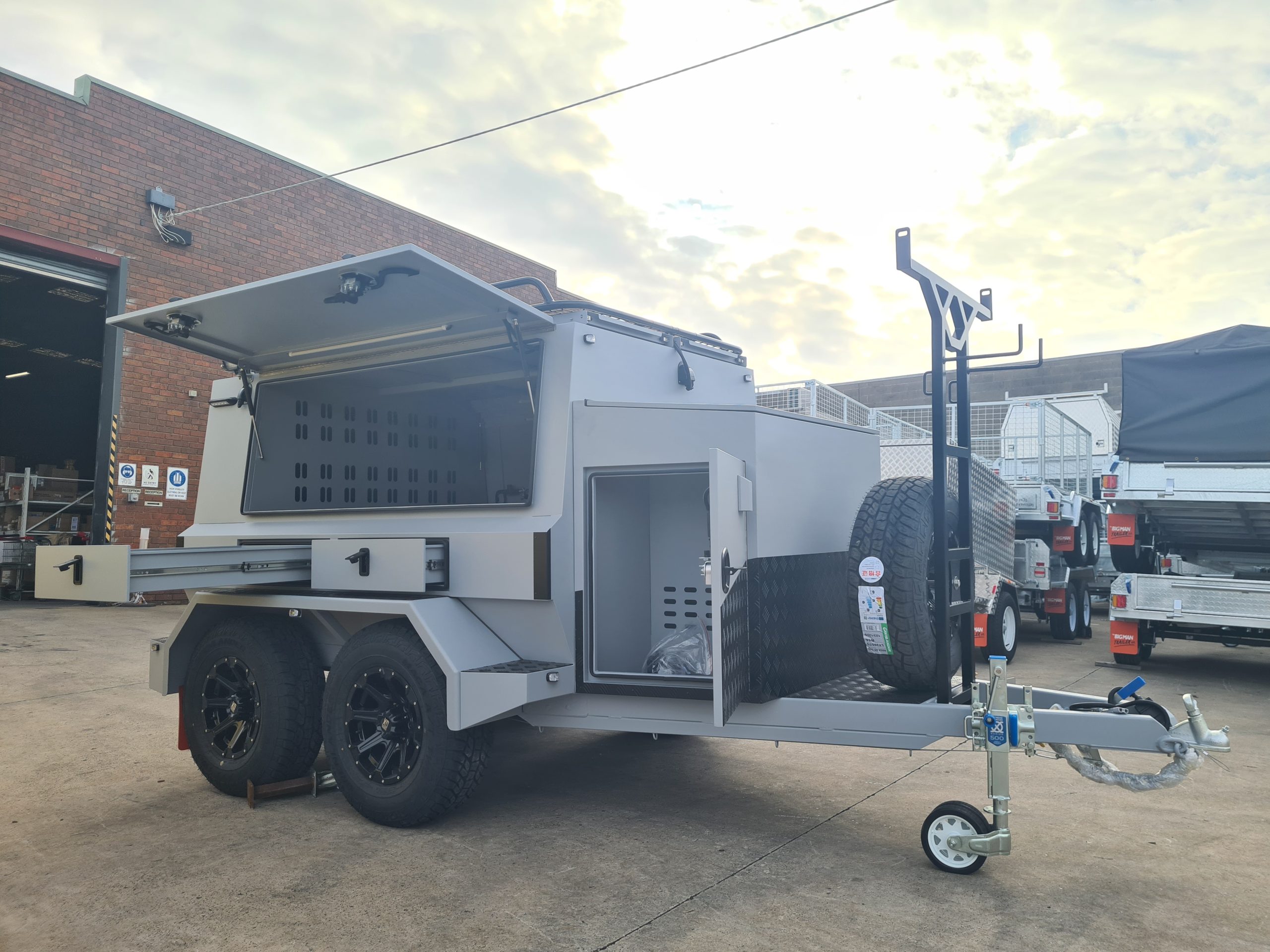

Spacious main compartments on both sides with additional storage underneath, a 50L fridge slide-out with overhead compartments, rear shelving and secure slide-out drawers – all fitted with latches so nothing moves on the road.
Power and water on board
Fitted with dual 135Ah AGM batteries, Anderson plugs and external sockets, a 2000W inverter and solar panel slide-outs, so you can run tools and lights away from mains power. A 70L dual water tank with pump and level gauge gives you water supply on the go.
Built to tow, built to last

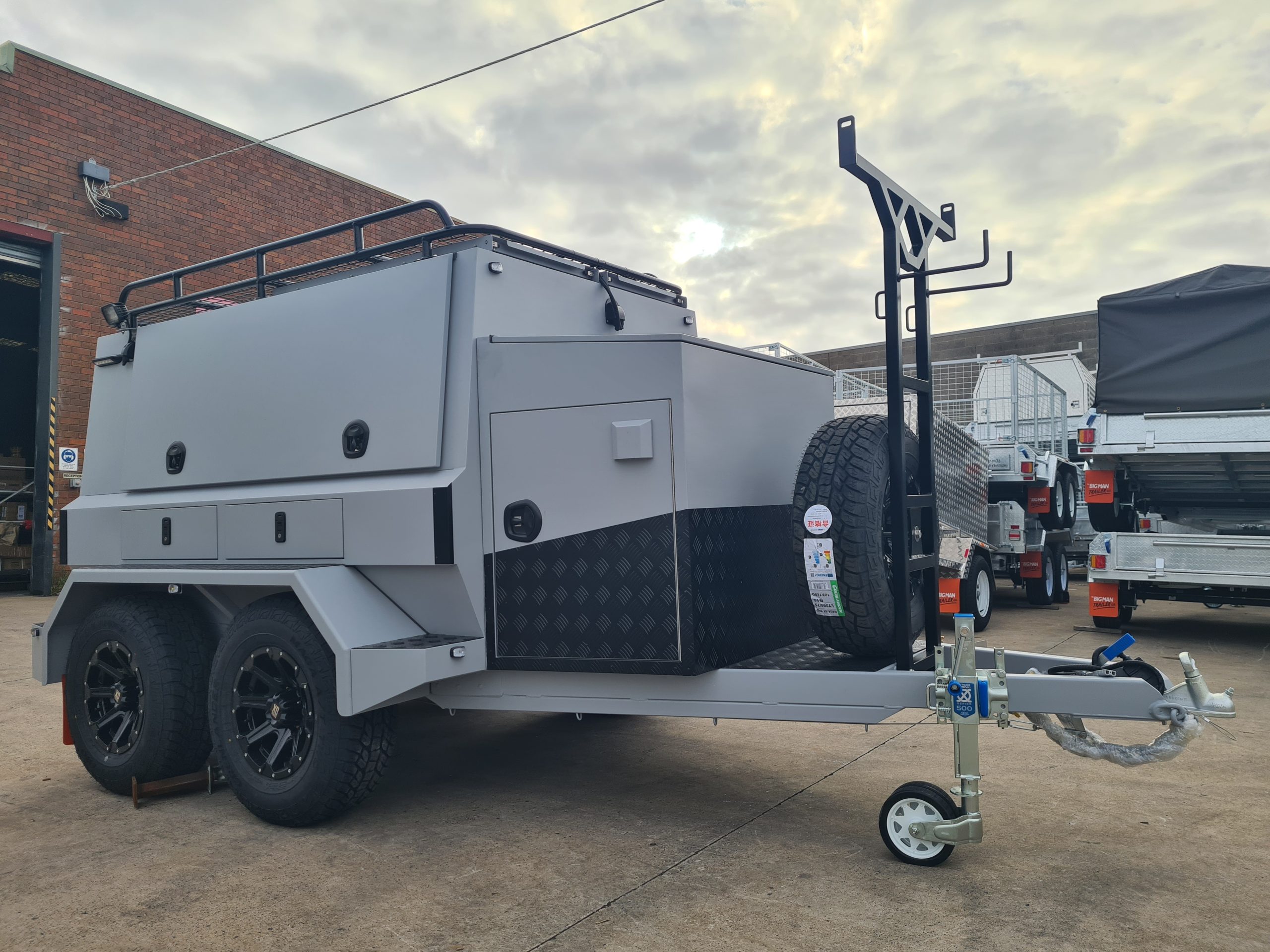

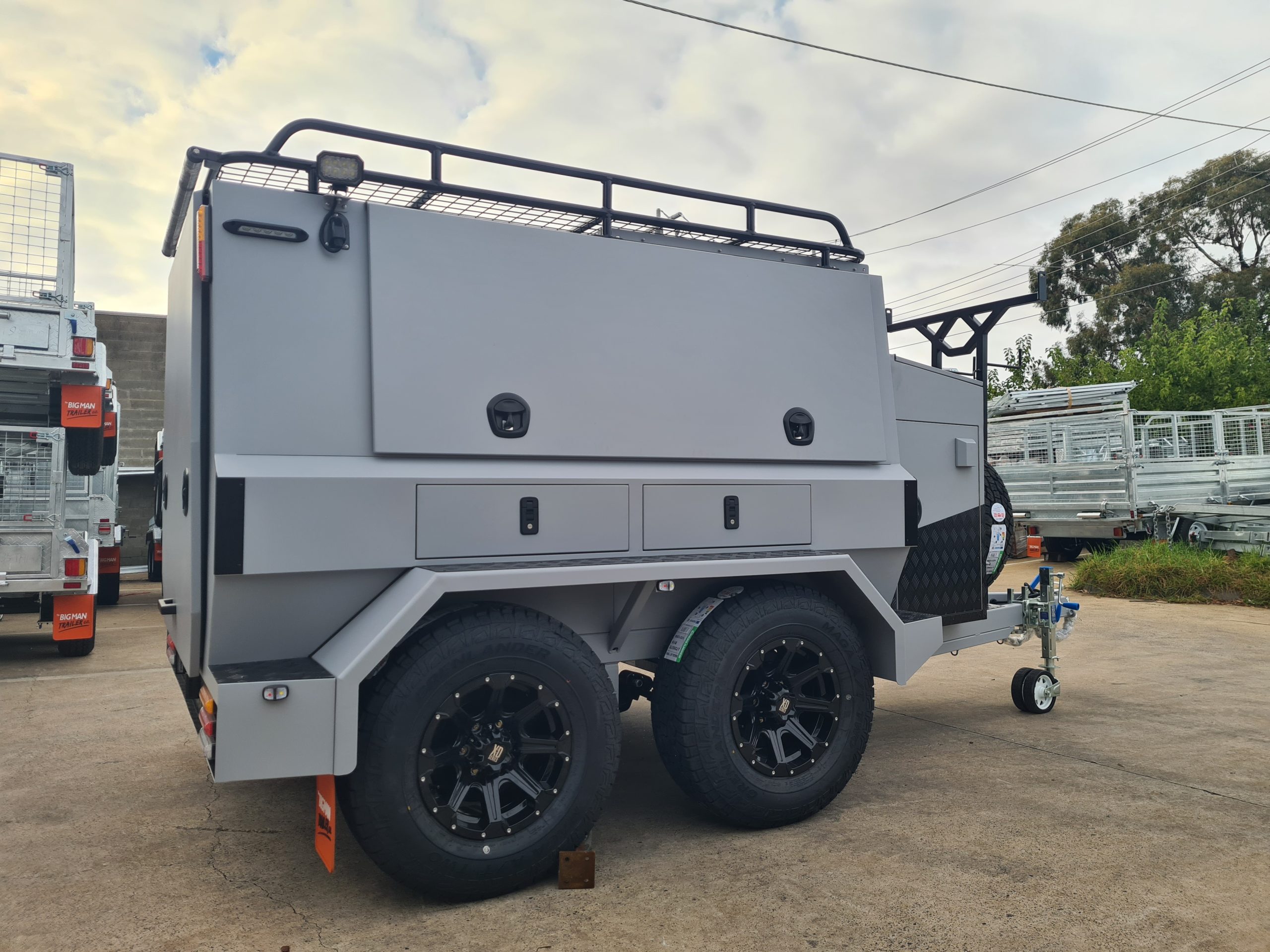

Built tough on rocker roller 9-leaf suspension with 265 75R16 tyres – double king tyres on Off-Rise Series GR wheels – and an 1800mm drawbar. A grey ladder rack with a spare tyre sits at the front, the roof luggage carrier is powder-coated grey, gas struts take the weight of every door, and a Central Locking System secures the lot for a sleek, professional finish.
Body Specs & Features
The TT85GV1 is built on a fully welded 3500KG ATM tandem chassis riding on rocker roller 9 leaf suspension with double king tyres on Off-rise series GR wheels, finished in matt grey inside and out with grey checker plate on every step-on area. On board you get a 2000W inverter running off 2 x 135Ah AGM deep cycle batteries with solar slide-outs, a 70L dual water tank with pump and gauge, a slide-out fridge, front and rear ladder racks, a powder-coated roof luggage carrier, gas struts on every door and a Central Locking System.
| Model | TT85GV1 |
| Overall Size | 4800mm (L) x 2100mm (W) x 2190mm (H) |
| Tare | 1650KG |
| ATM | 3500KG |
| Axle Group Loading | 3500KG |
| Suspension | Rocker roller 9 leaf |
| Tyre Size | 265 75R16 Inch |
| Wheels & Tyres | Double king tyres with Off-rise series GR wheels |
| Cold Tyre Pressure | 275kPa |

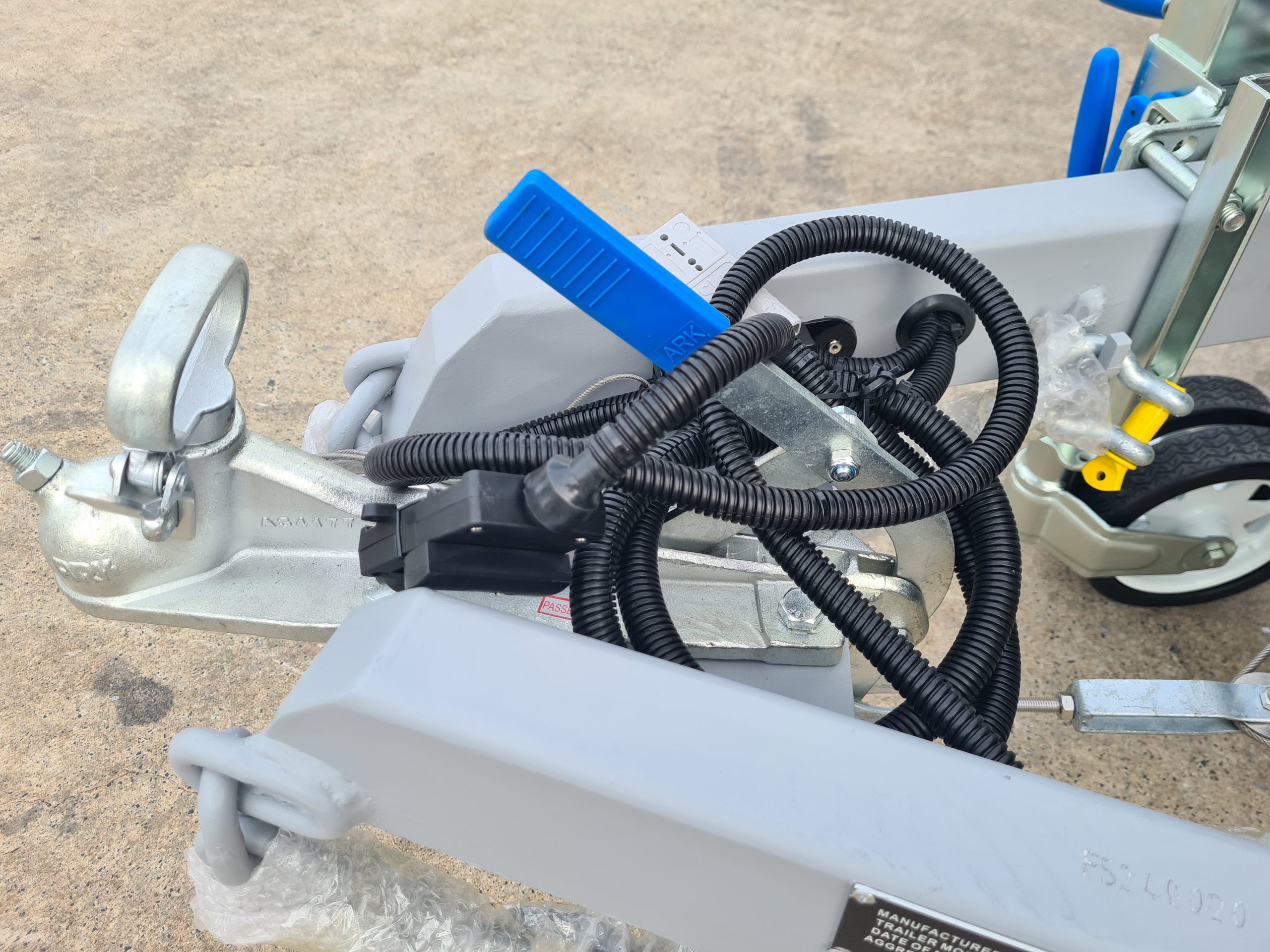

| Drawbar | 1800mm long, 50 x 100 |

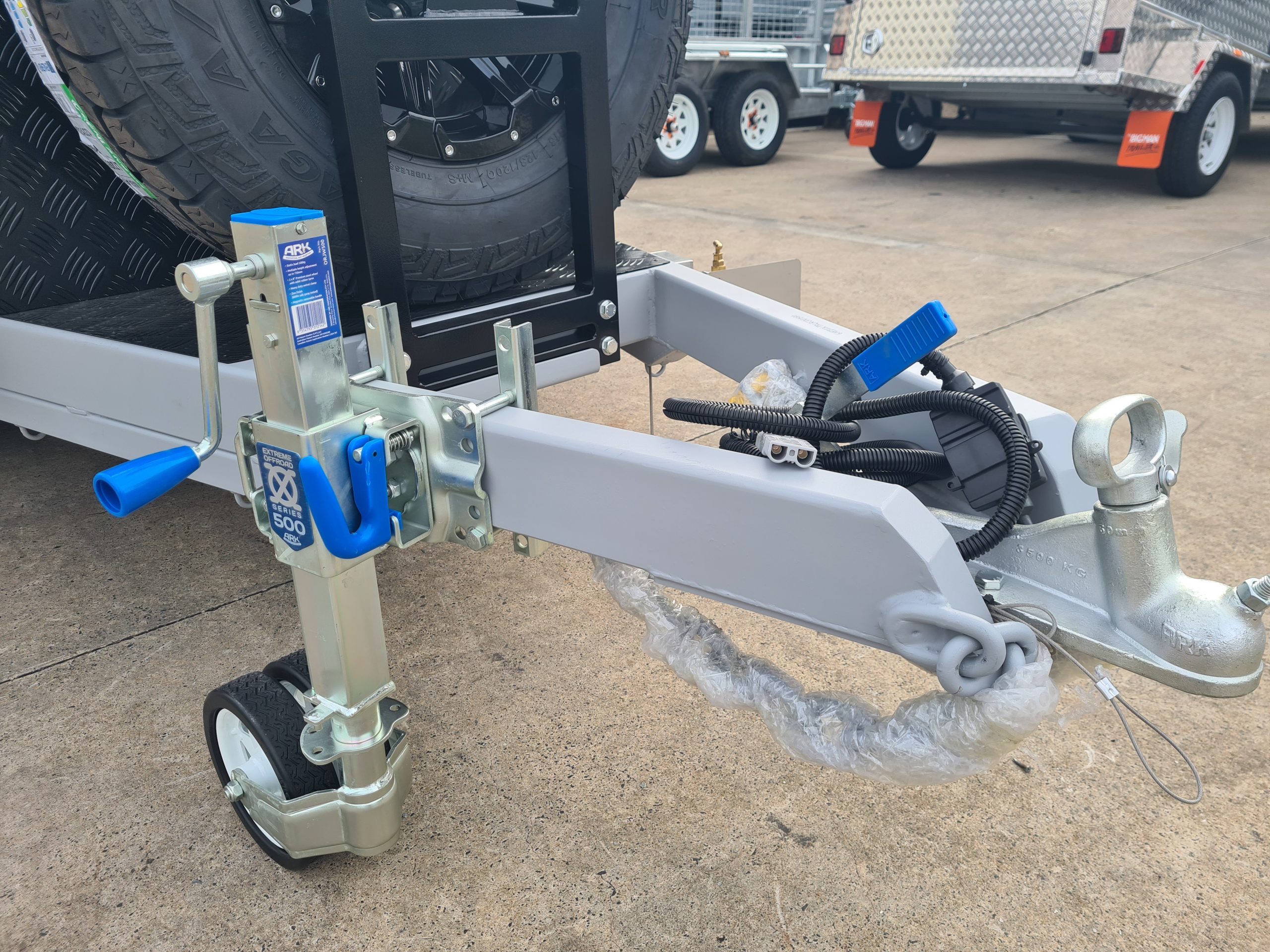

| Jockey Wheel | ARK XO500 – free upgrade |
| External Finish | Matt Grey |
| Internal Finish | Matt Grey |
| Step-On Areas | Grey checker plate finish |
| Lighting | Brake, parker, reverse and number plate lights with a grey checker plate finish |
| Inverter | 2000W, located within the main compartment |
| Batteries | 2 x 135Ah AGM Deep Cycle |
| Solar | 2 x solar panel slide-outs located underneath the roof cage |

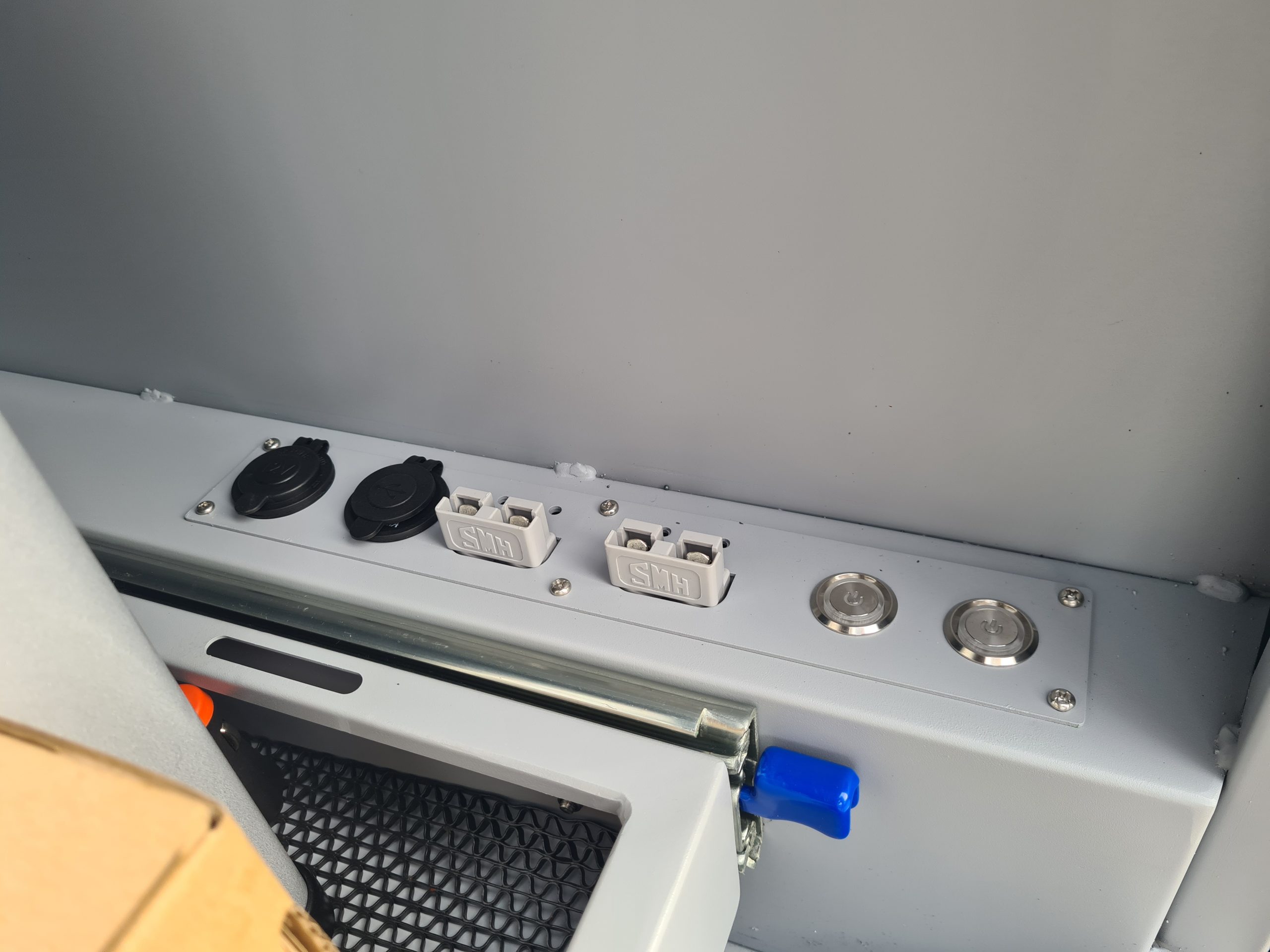

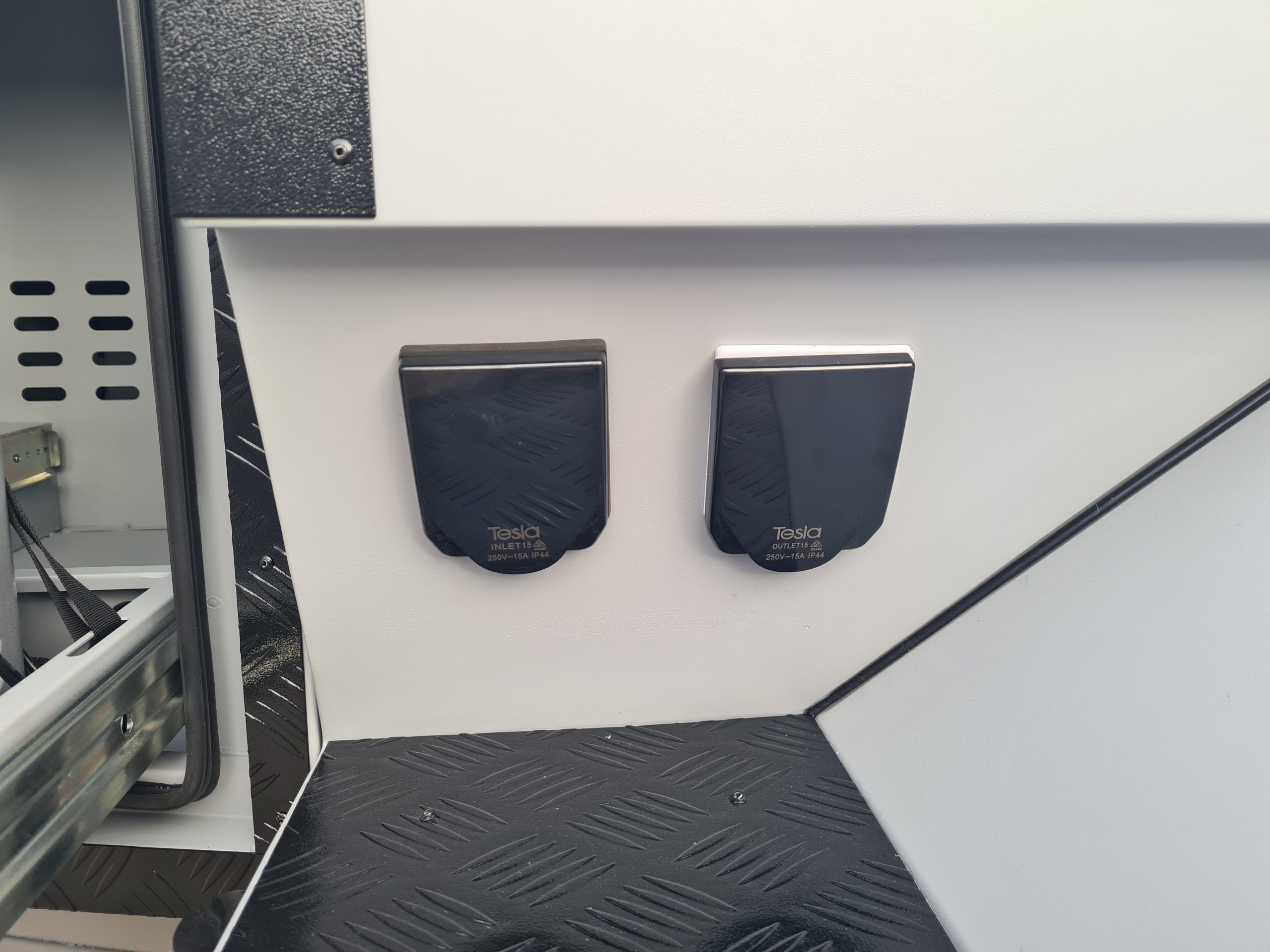

| Power Outlets | Anderson plugs, external sockets and a power button in the fridge compartment |
| Audio | Power outlets with 2 speaker radios |
| Water Tank | 70L dual water tank found underneath |
| Water Pump | Fitted |

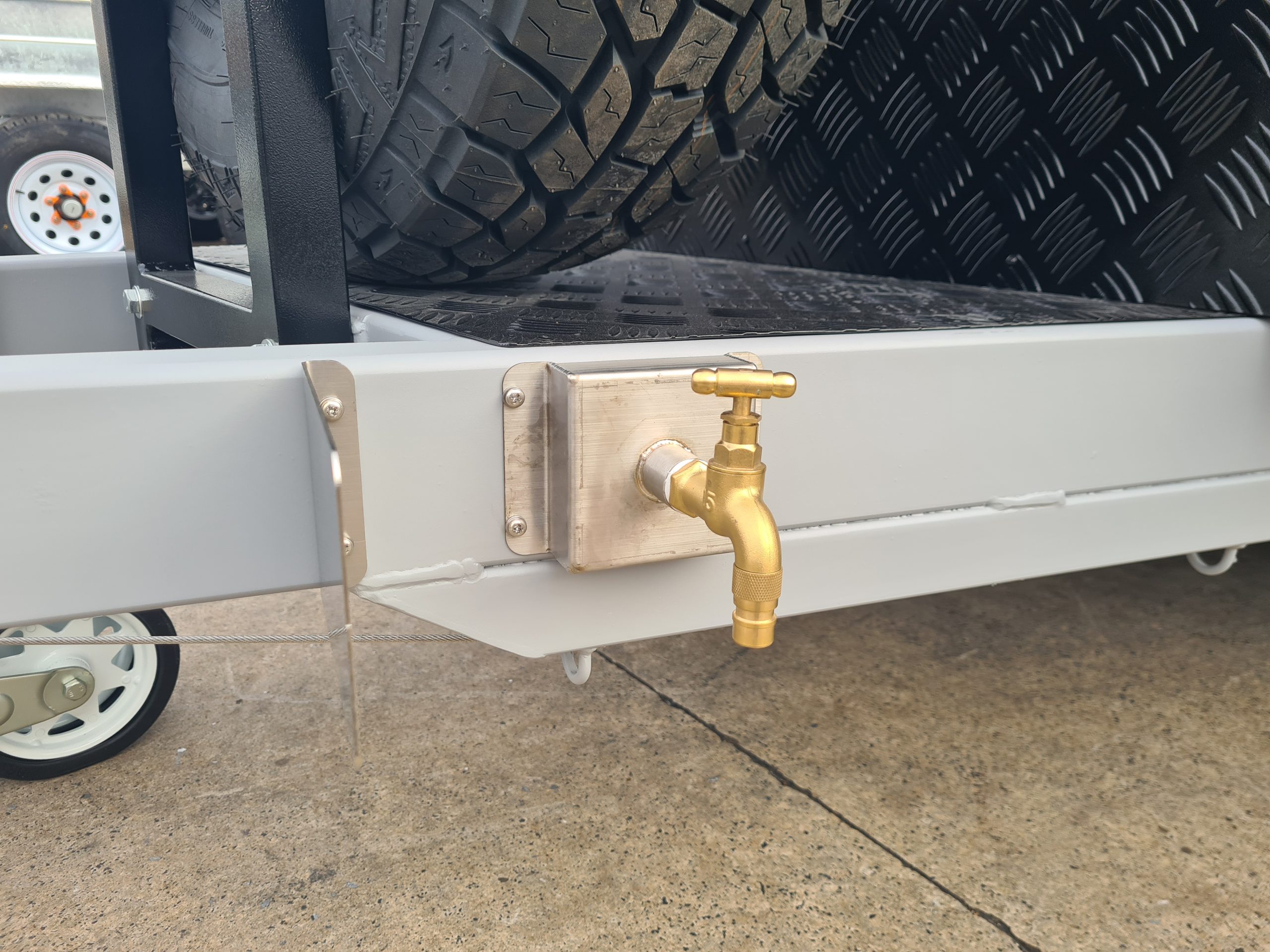

| Water Plumbing | Hoses run inside the chassis on the left-hand side, with a tap you can open |
| Water Gauge | Level indicator found within the compartment |
| Fridge | Slide-out fridge with fan |

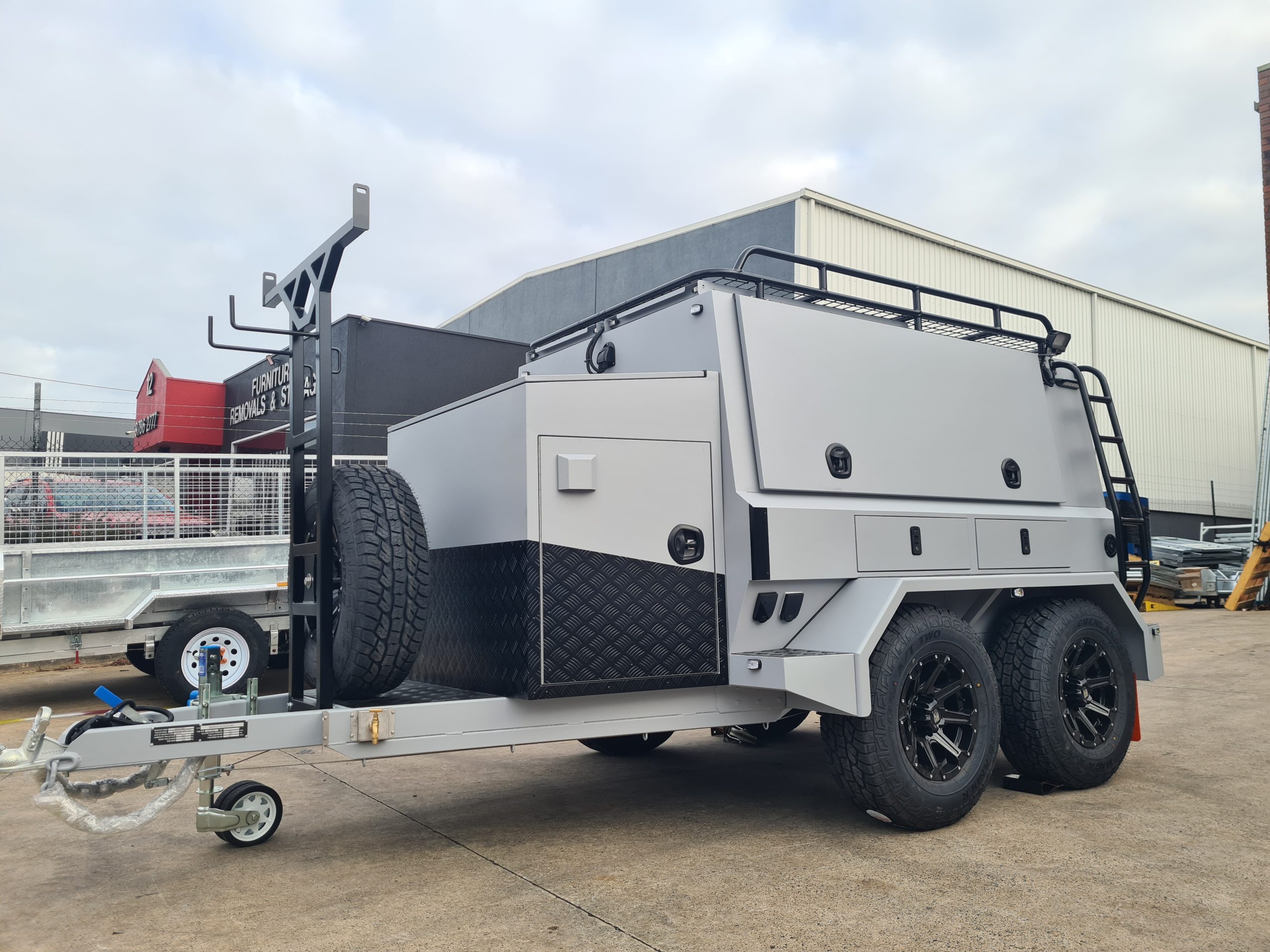

| Front Ladder Rack | Grey ladder rack with a spare tyre |
| Rear Ladder Rack | 1300mm height |
| Roof Luggage Carrier | Powder coated grey, included |
| Locking | Compression press-release locks with Central Locking System |
| Doors | Gas struts fitted to all doors |
Trailer Finance Options Available!
Storage Features

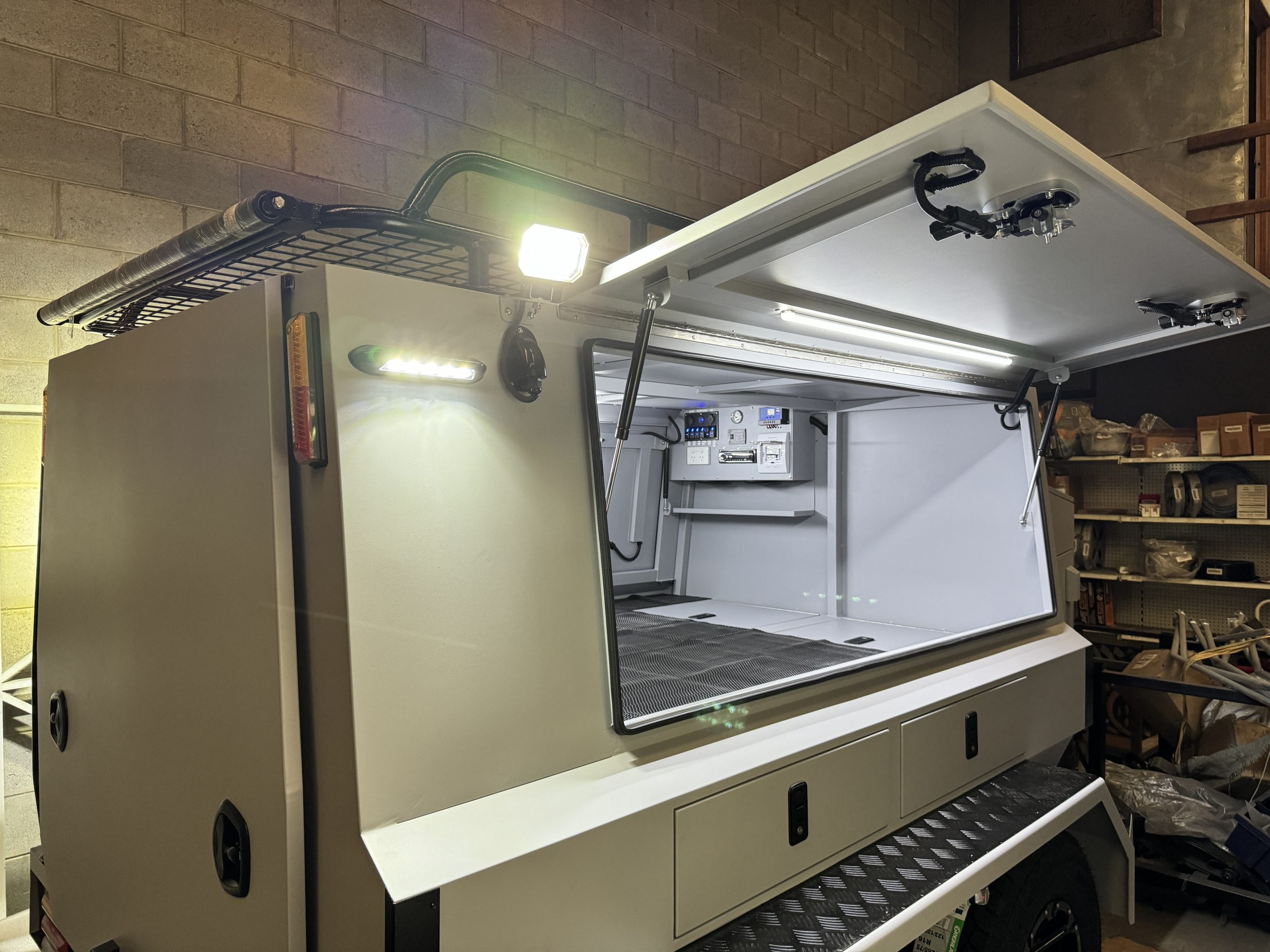

- Main compartment area on either side – 1700 (W) x 1950 (L) x 820 (D)
- 2 x smaller compartments underneath the main compartment area on the left – 450 (W) x 450 (L) x 450 (H) each

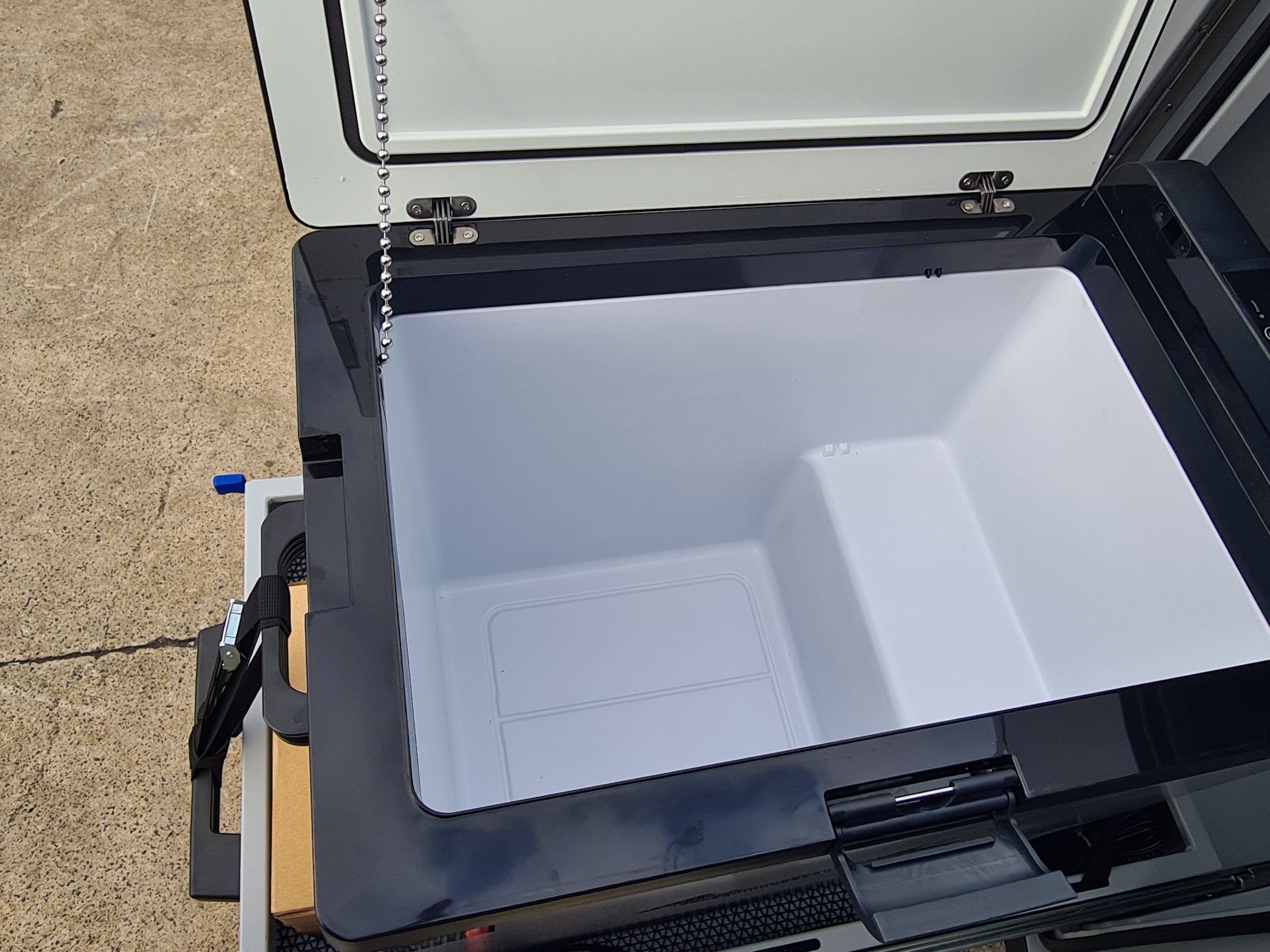

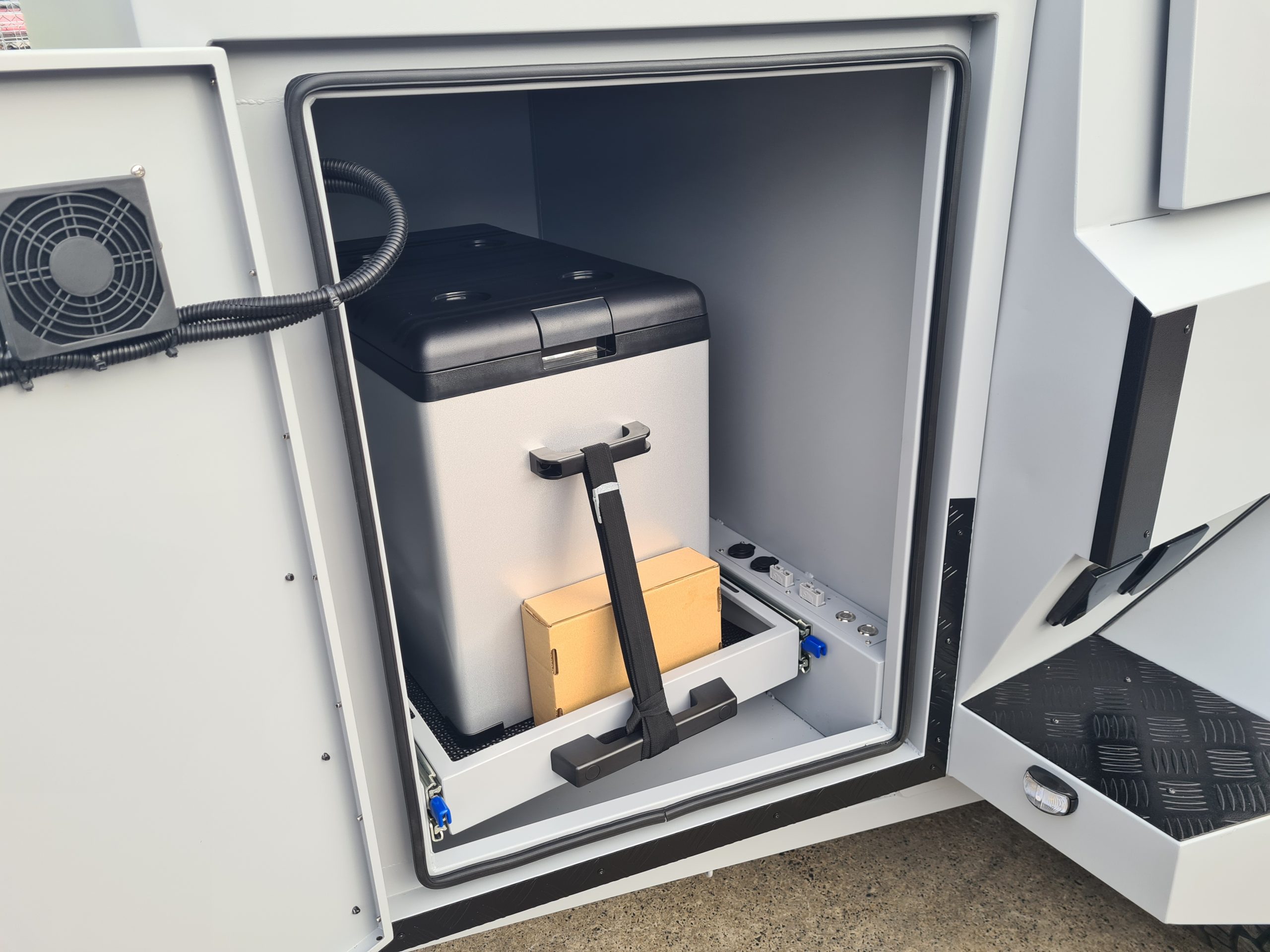

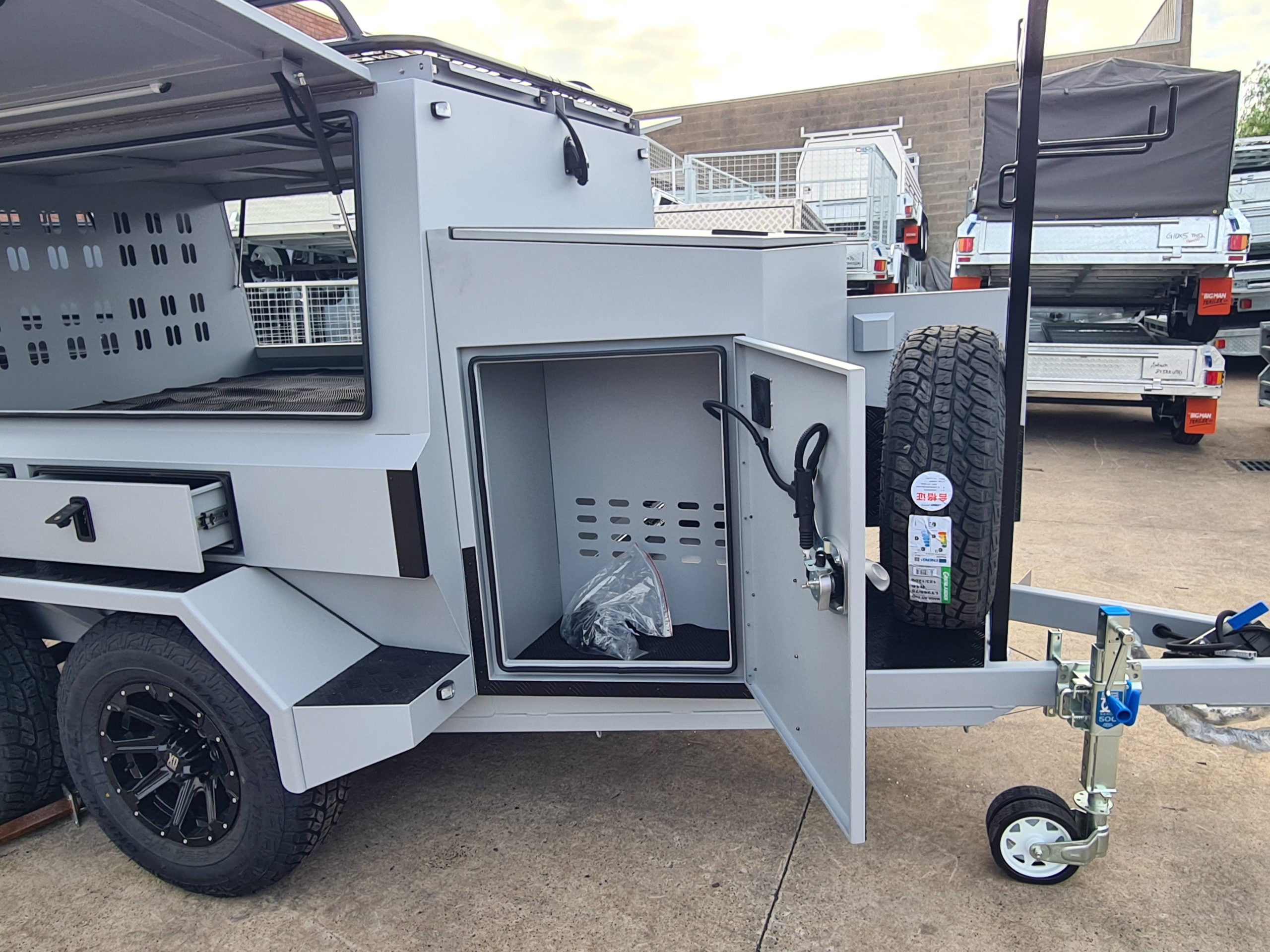

- Fridge slide-out – 50 Litres, with fan
- Additional compartment above the fridge – 1100 (W) x 600 (L) x 200 (D)

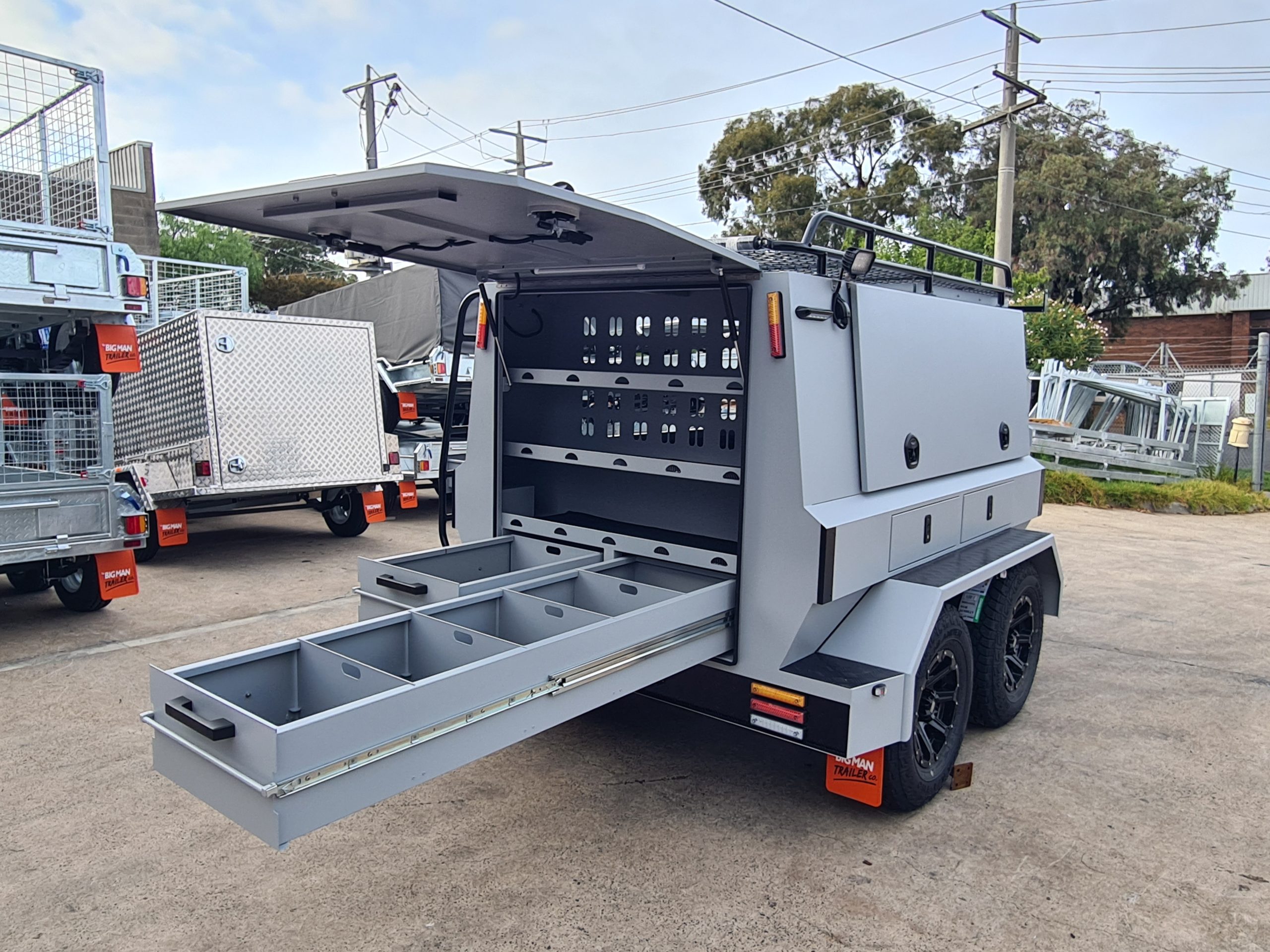

- 2 x shelves located at the rear – bottom shelves 1800 (W) x 450 (L) x 420 (H), top shelf 1500 (W) x 390 (L) x 380 (H)

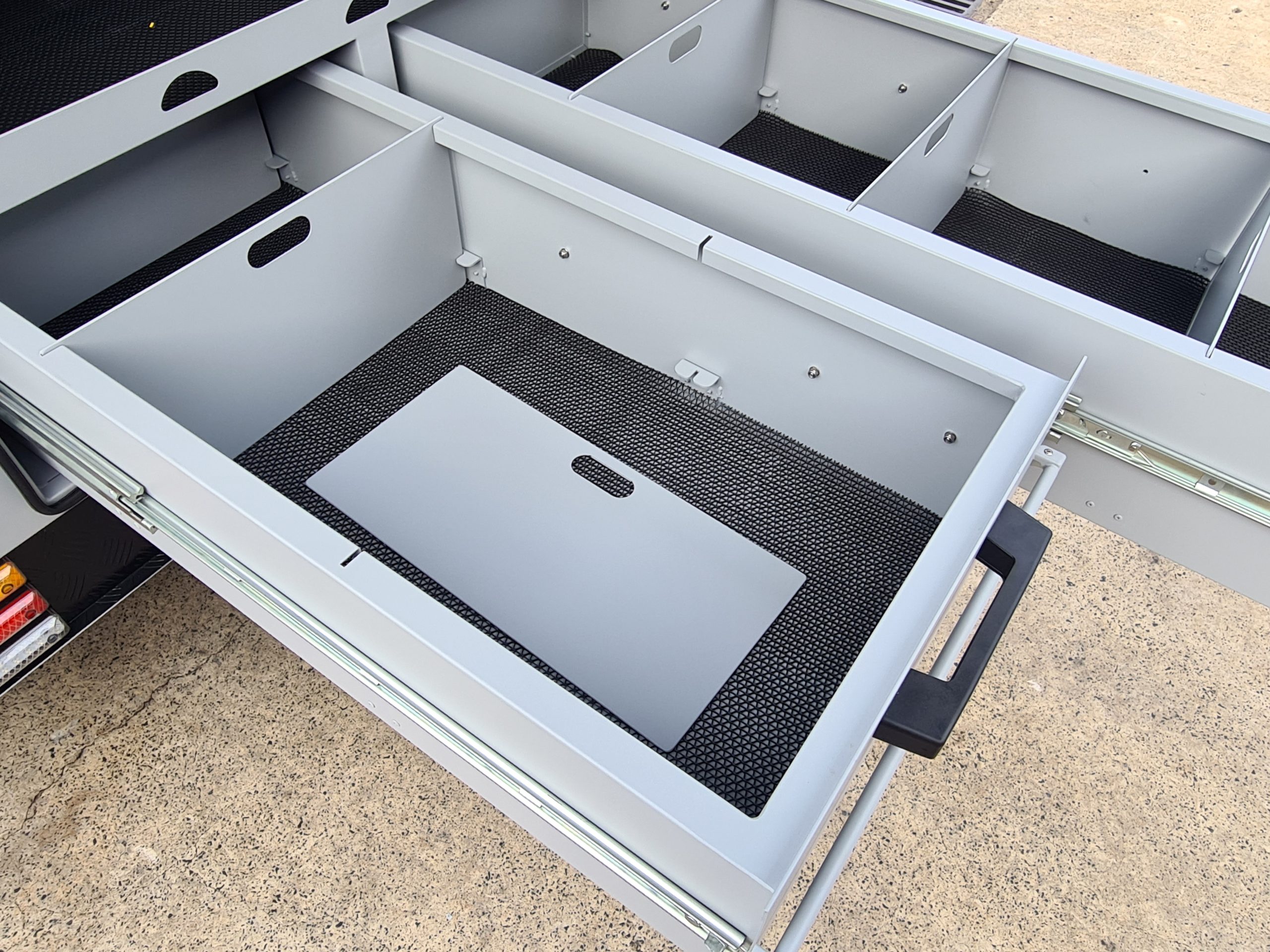

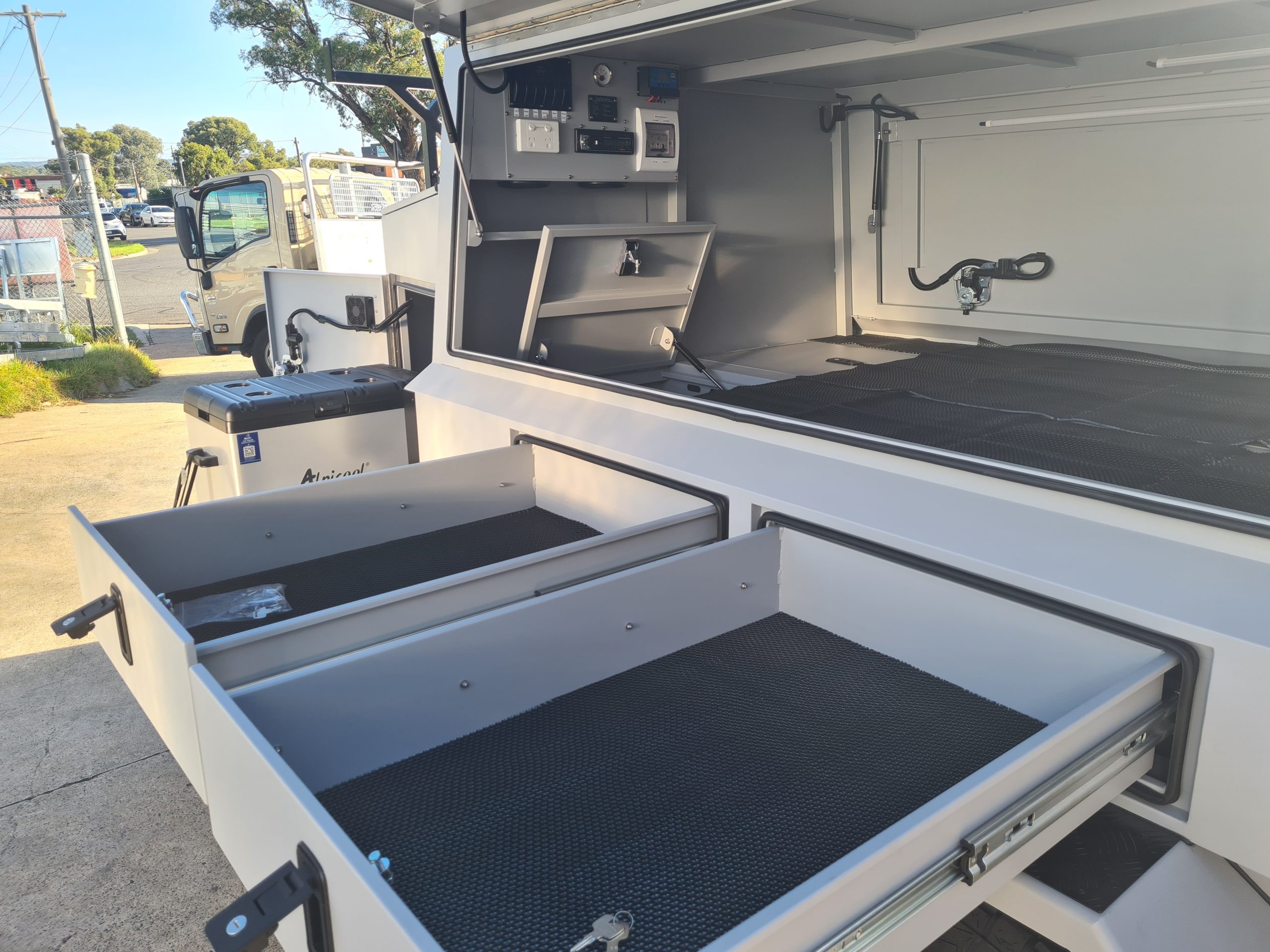

- 3 x slide-out pull-out drawers located at the rear – 500 (W) x 1800 (L) x 400 (H), with latches on the side to open and close
- Additional storage compartment, right side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Additional storage compartment, left side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Internal fans located in front of the wheel holder, behind the fridge
All dimensions in mm.
