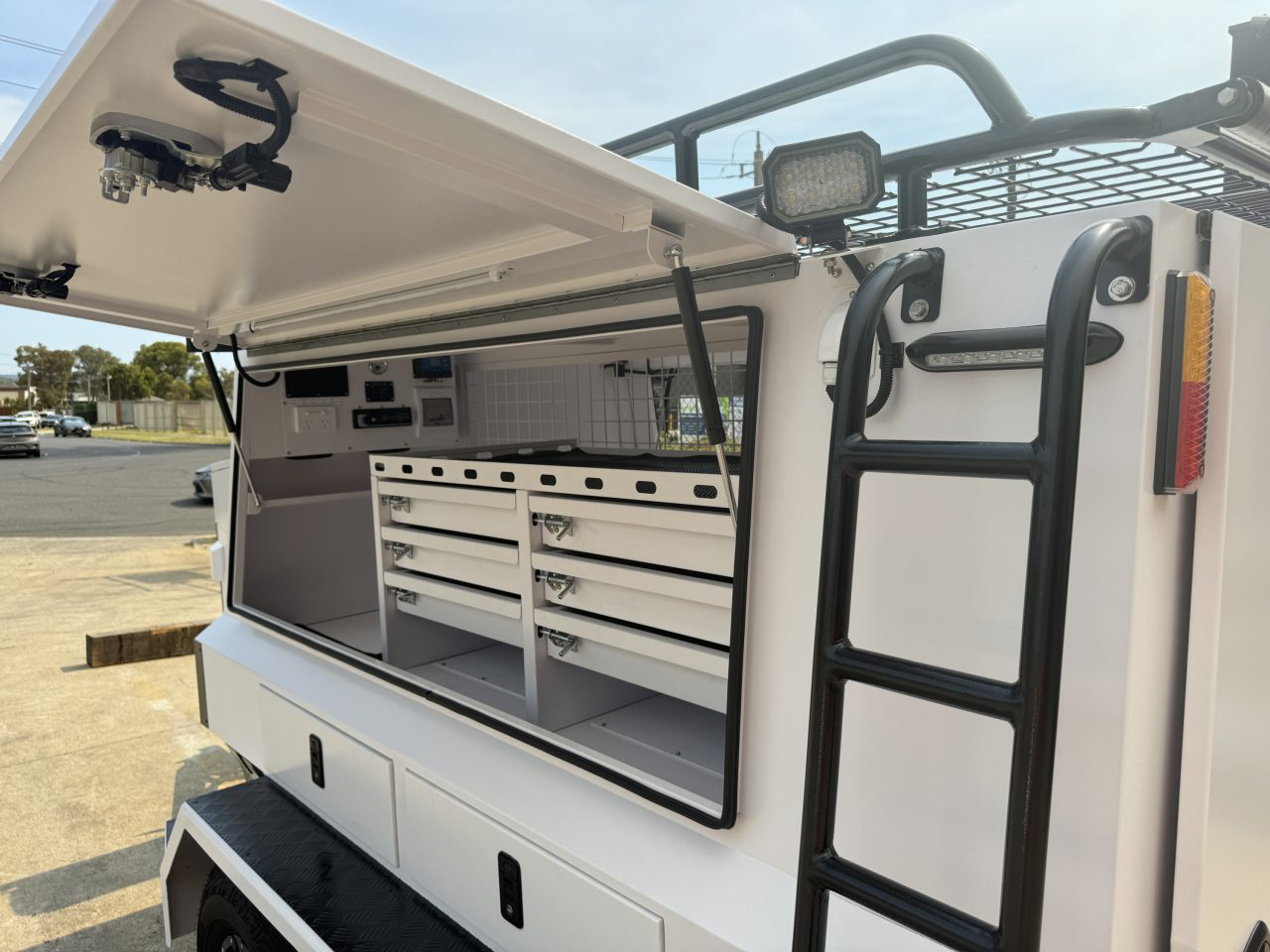

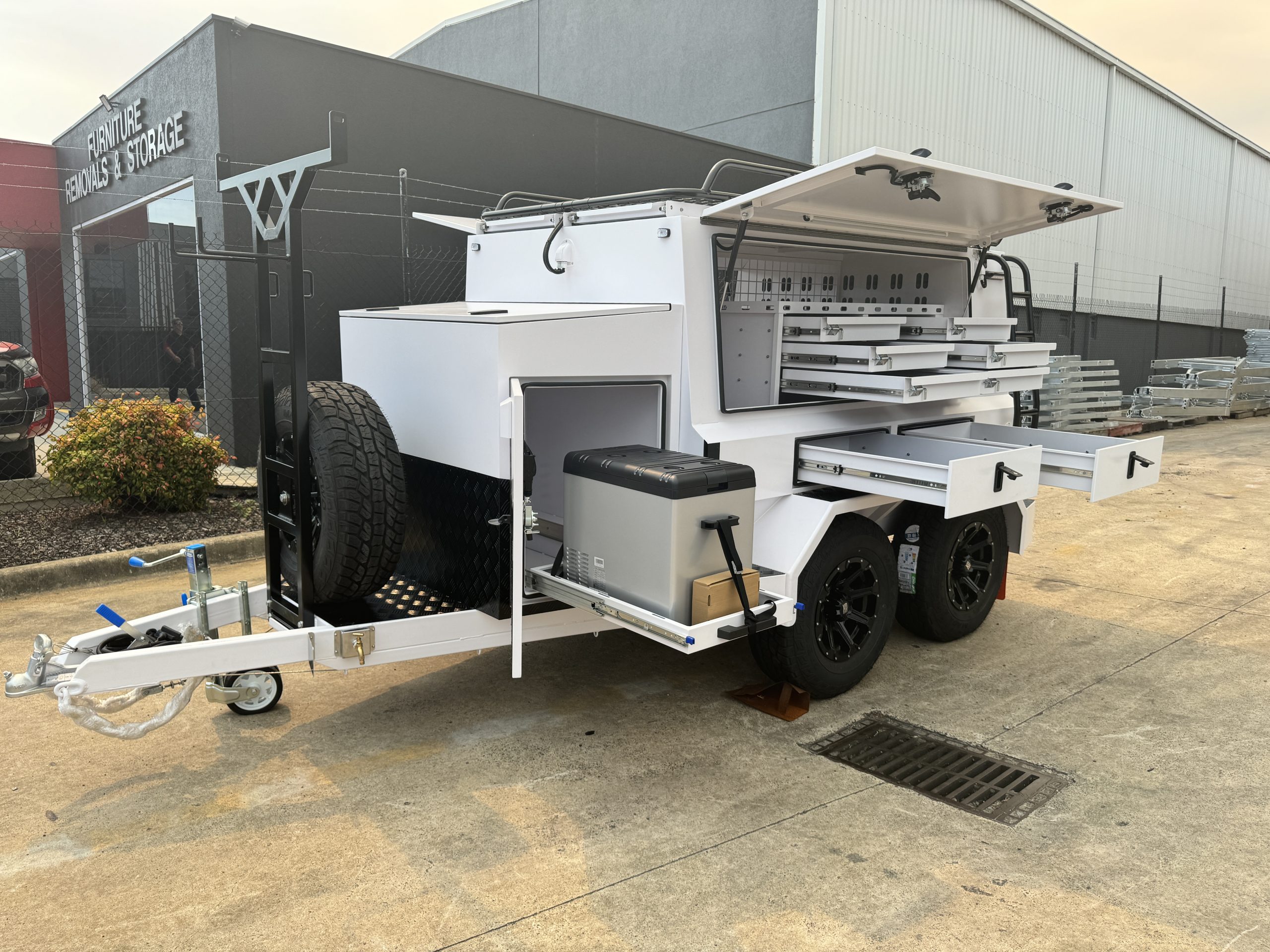

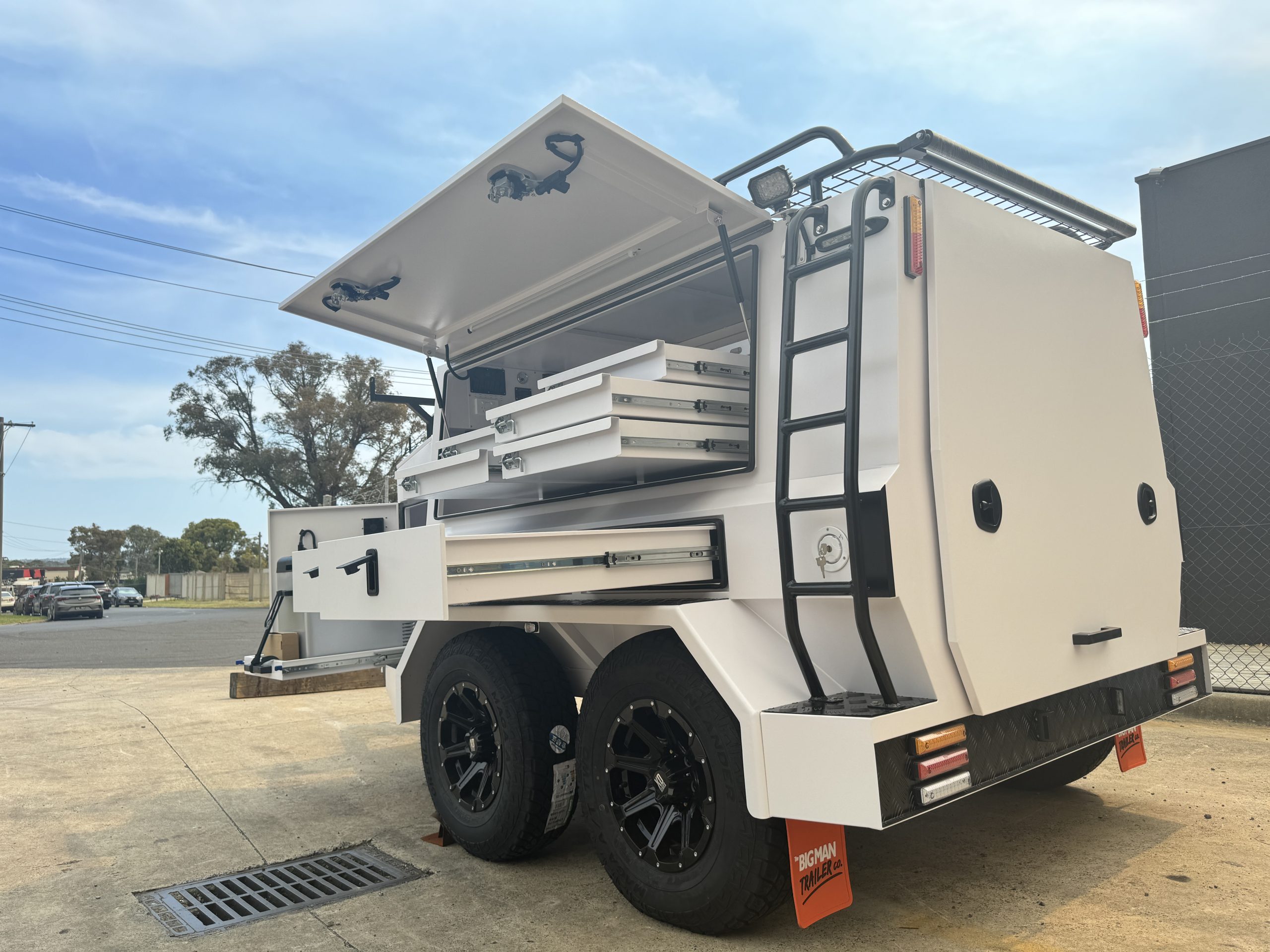

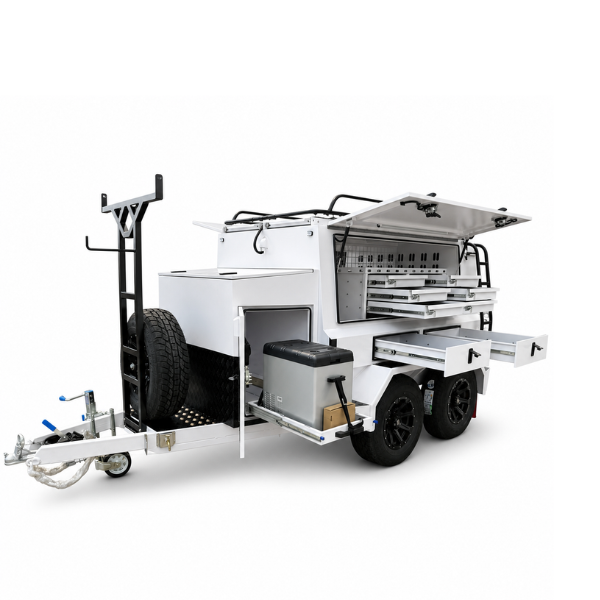

About the 8x5 Tool Trailer with Drawer - White
The 8x5 Tool Trailer is built for tradespeople who need reliable storage and functionality on every job. Model TT85WV2 has a tare of 1750KG and an aggregate trailer mass of 3500KG, finished in sleek matte white with black checker plate accents.
Storage built around the job

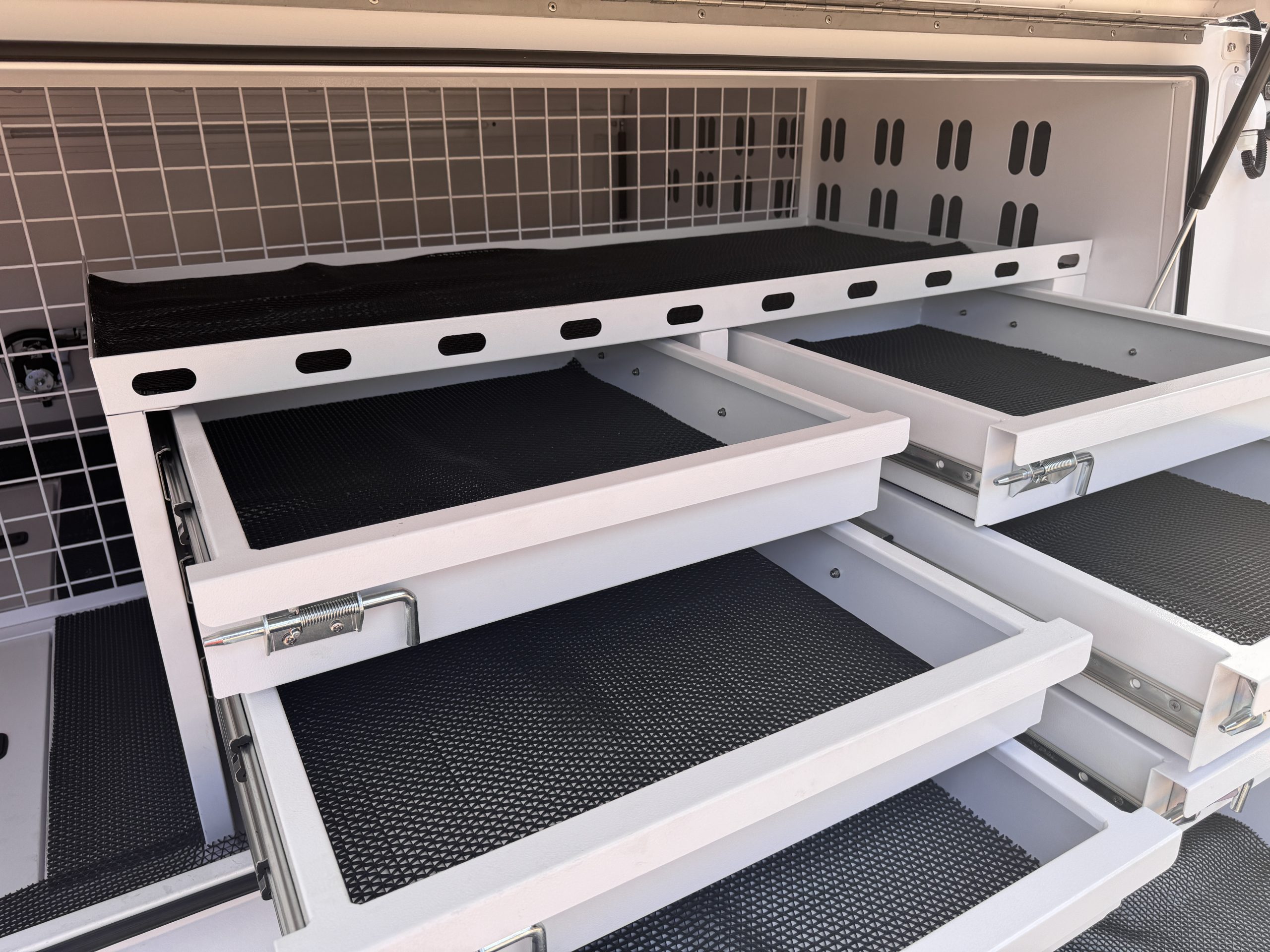

Spacious compartments on either side, slide-out drawers at the rear and a 50L fridge slide with a fan to keep drinks and lunch cold. New for this model: internal drawers and upgraded rear fog lights for maximum practicality and safety on site.
Power and water on board
Equipped with dual 135Ah AGM batteries, Anderson plugs, external sockets and a 2000W inverter, so you can run tools and lights away from mains power, plus solar panel slide-outs to keep the system topped up. A 70L water tank with a pump and level gauge means you can wash up and clean down wherever you park.
Built to tow, built to last
The sturdy 1800mm drawbar, 265 75R16 tyres and rocker roller 9-leaf suspension handle heavy loads with ease, while the Central Locking System keeps your tools secure. Gas struts on every door, a front ladder rack with spare tyre, a roof luggage carrier and black checker plate on all step-on areas round it out.
Body Specs & Features
The TT85WV2 is built on a fully welded 3500KG ATM chassis riding on rocker roller 9 leaf suspension and 265 75R16 tyres, finished in matt white inside and out with black checker plate on every step-on area. On board you get a 2000W inverter running off 2 x 135Ah AGM deep cycle batteries with solar slide-outs, a 70L dual water tank with pump and gauge, a slide-out fridge, front and rear ladder racks, a roof luggage carrier, gas struts on every door and a Central Locking System.
| Model | TT85WV2 |
| Overall Size | 4800mm (L) x 2100mm (W) x 2190mm (H) |
| Tare | 1750KG |
| ATM | 3500KG |
| Axle Group Loading | 3500KG |
| Suspension | Rocker roller 9 leaf |
| Tyre Size | 265 75R16 Inch |
| Cold Tyre Pressure | 275kPa |
| Drawbar | 1800mm long, 50 x 100 |
| Jockey Wheel | ARK XO500 – free upgrade |
| External Finish | Matt White |
| Internal Finish | Matt White |
| Step-On Areas | Black checker plate finish |
| Lighting | Brake, parker, reverse and number plate lights with a black checker plate finish |
| Inverter | 2000W, located within the main compartment |

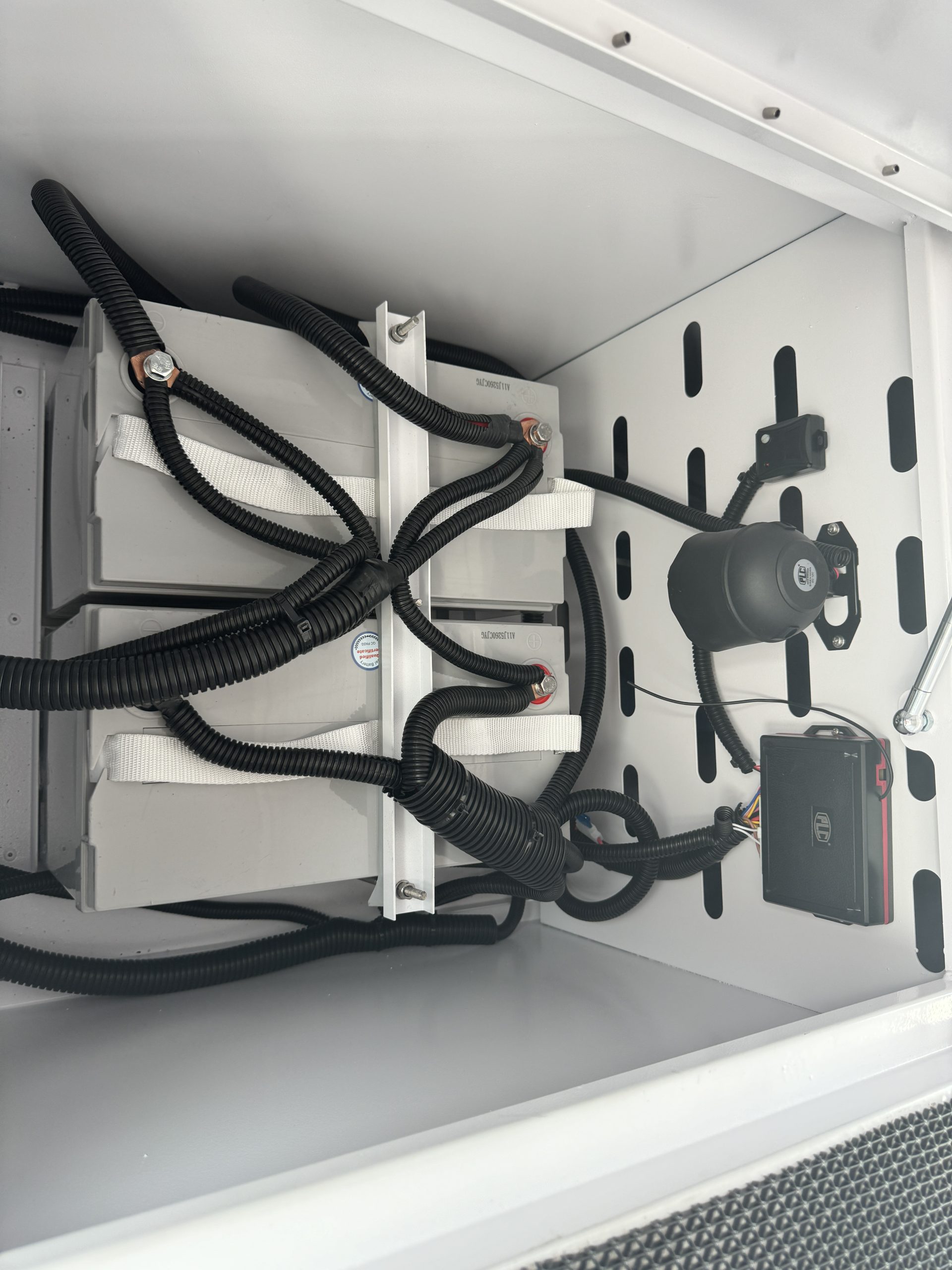

| Batteries | 2 x 135Ah AGM Deep Cycle |
| Solar | 2 x solar panel slide-outs located underneath the roof cage |
| Power Outlets | Anderson plugs, external sockets and a power button in the fridge compartment |
| Audio | Power outlets with 2 speaker radios |
| Water Tank | 70L dual water tank found underneath |
| Water Pump | Fitted |
| Water Plumbing | Hoses run inside the chassis on the left-hand side, with a tap you can open |
| Water Gauge | Level indicator found within the compartment |
| Fridge | Slide-out fridge with fan |

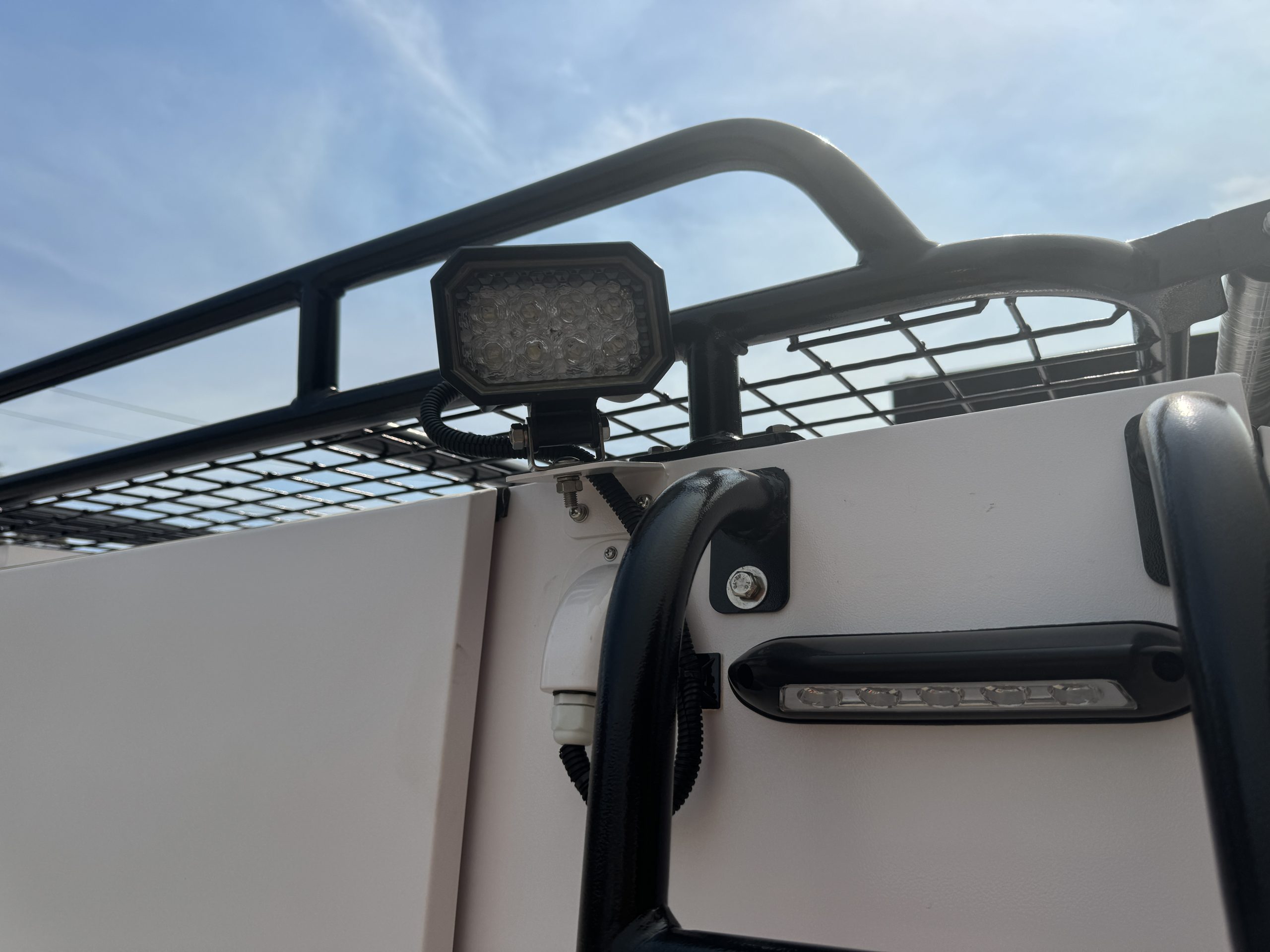

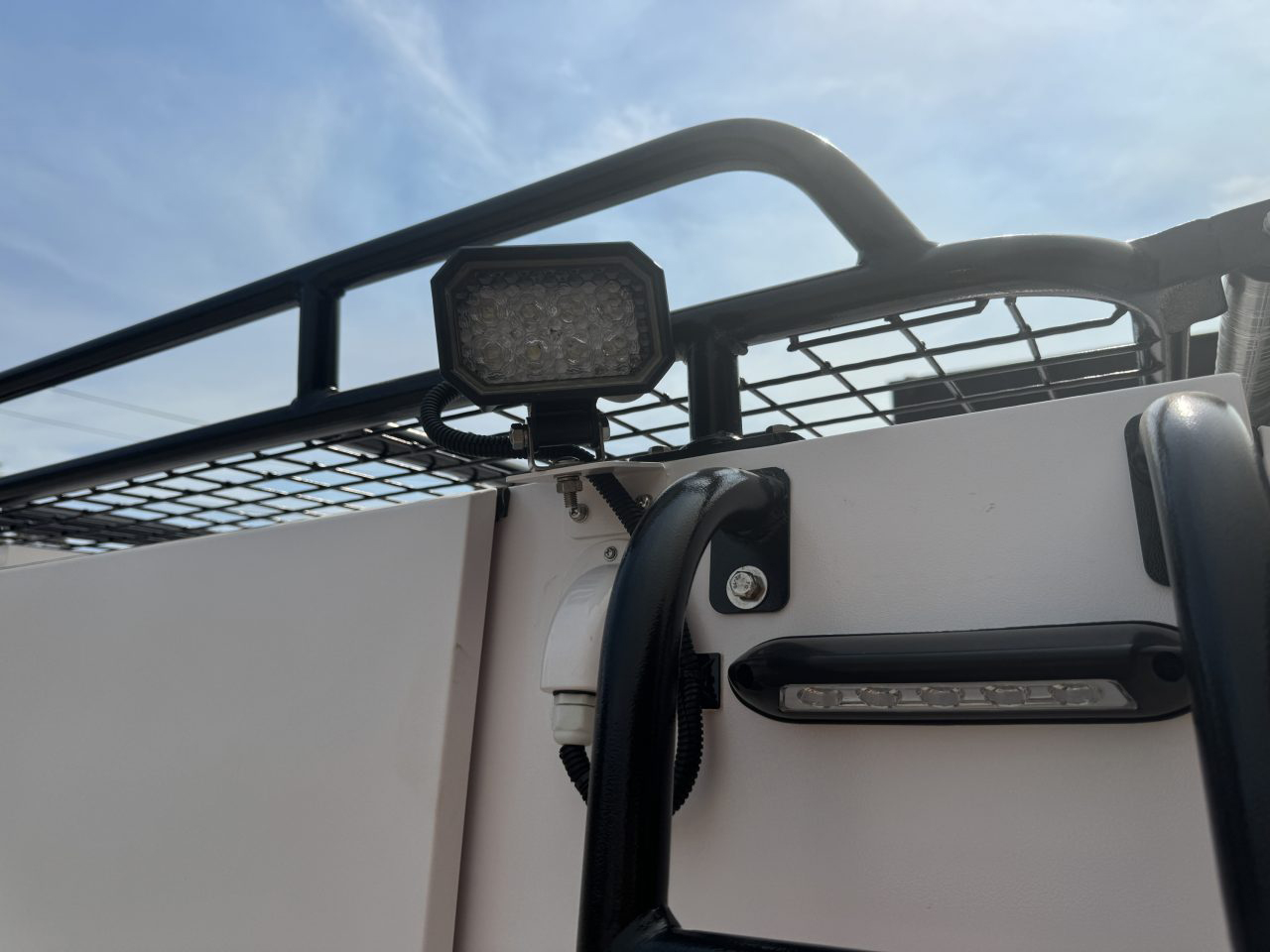

| Front Ladder Rack | Black ladder rack with a spare tyre |
| Rear Ladder Rack | 1300mm height |
| Roof Luggage Carrier | Included |
| Locking | Compression press-release locks with Central Locking System |

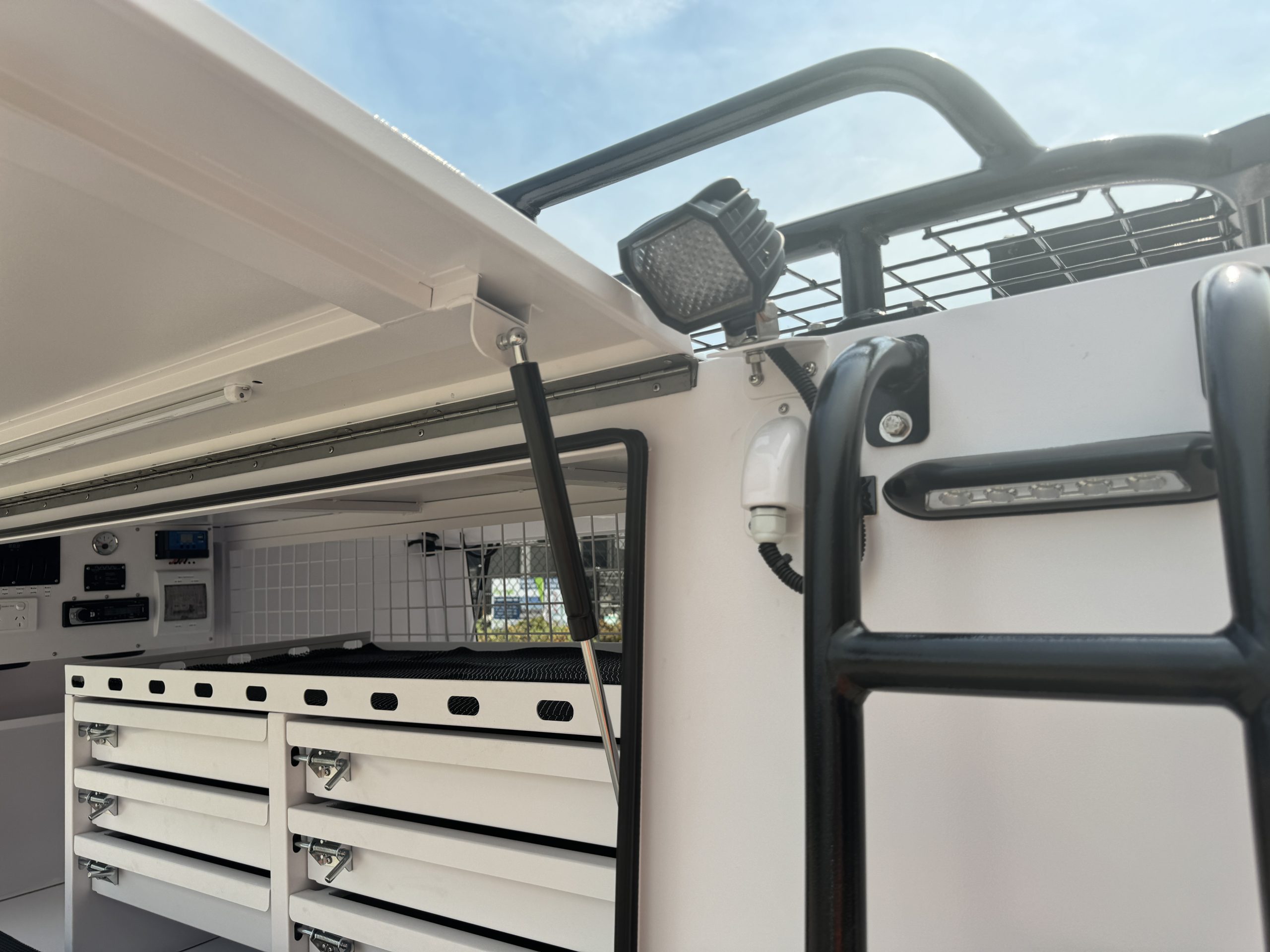

| Doors | Gas struts fitted to all doors |
Trailer Finance Options Available!
Storage Features

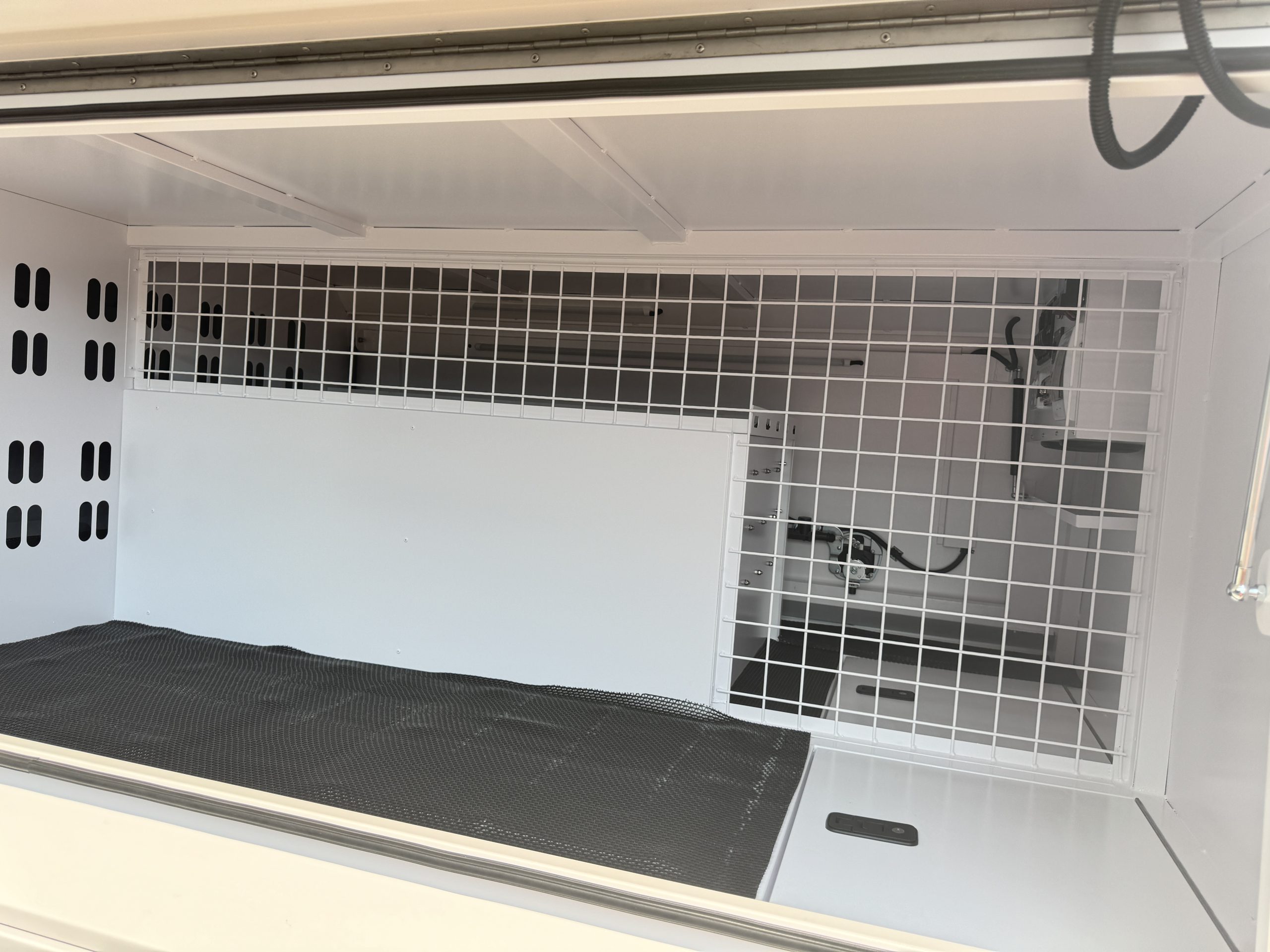

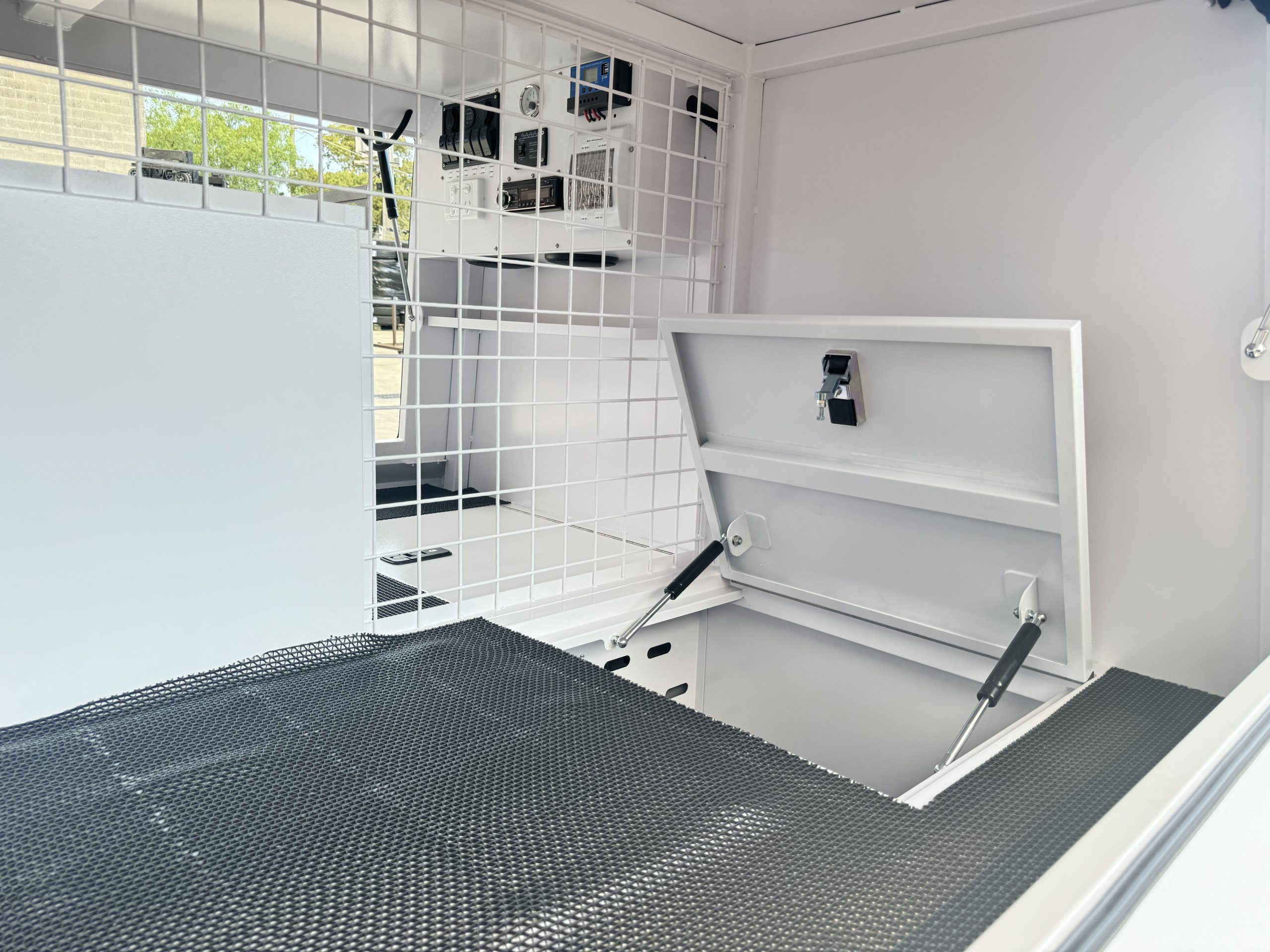

- Main compartment area on either side – 1700 (W) x 1950 (L) x 820 (D)
- 2 x smaller drawers underneath the main compartment area – 450 (W) x 450 (L) x 450 (H) each

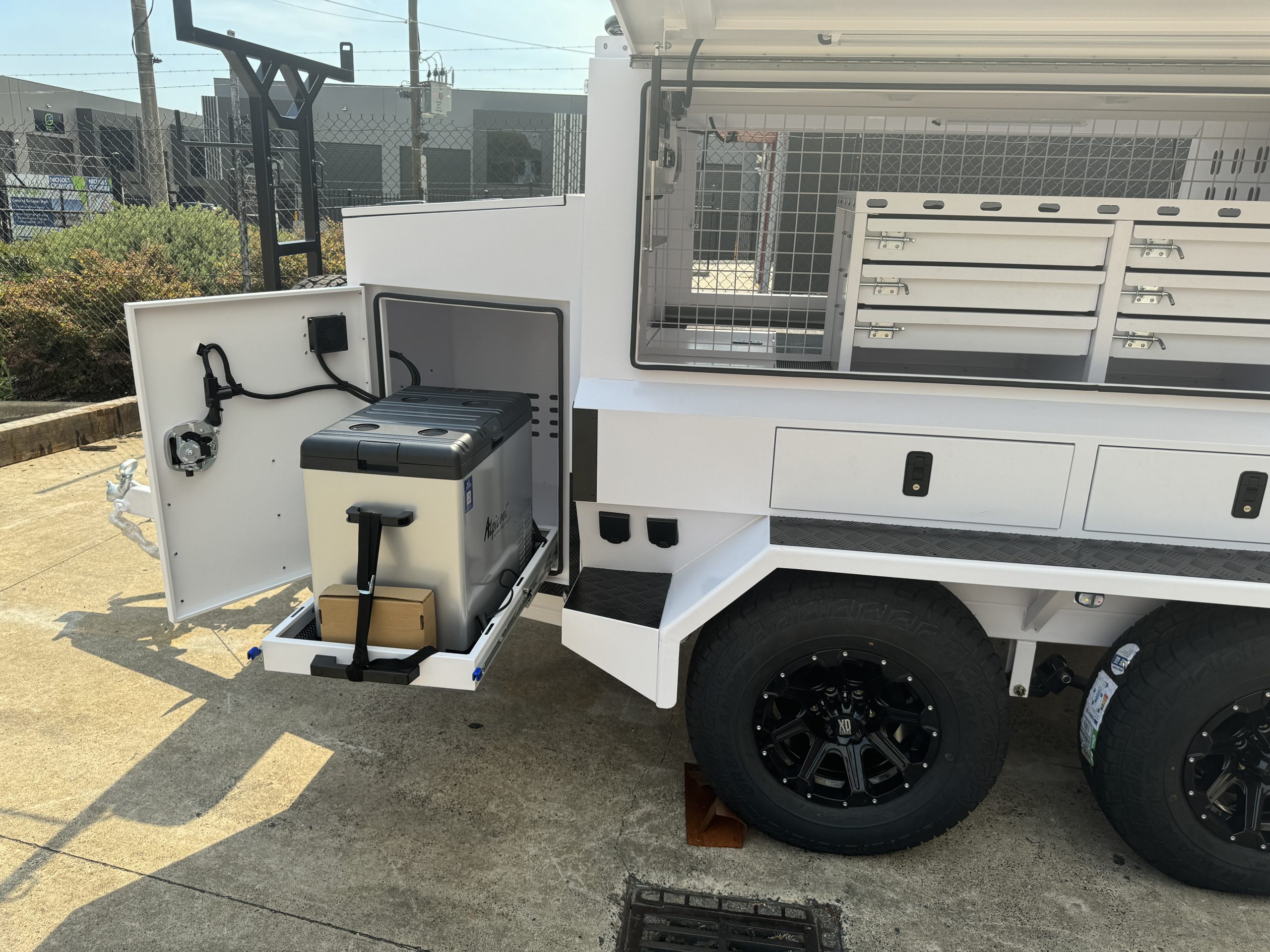

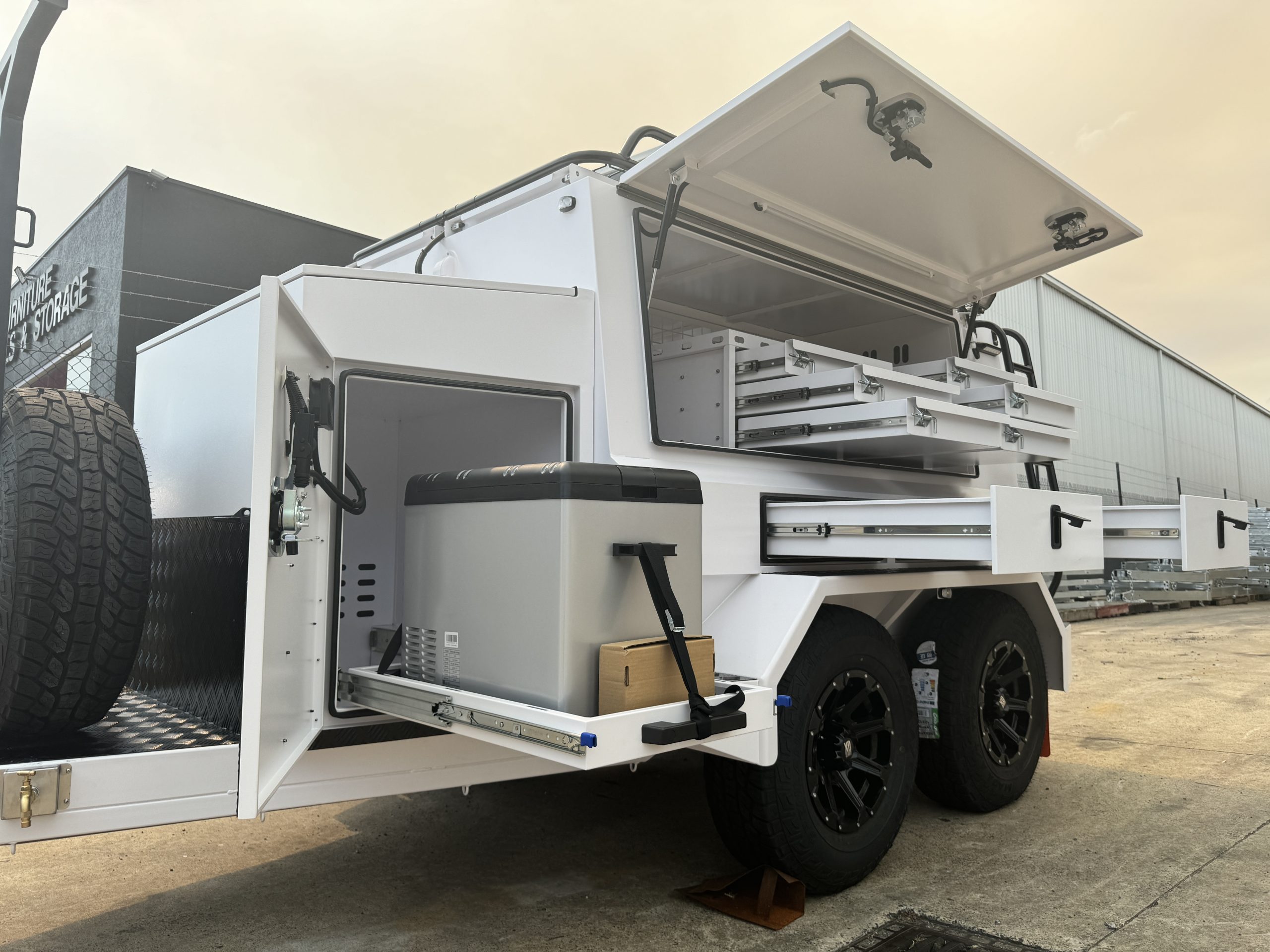

- Fridge slide-out – 50 Litres, with fan
- Additional compartment above the fridge – 1100 (W) x 600 (L) x 200 (D)

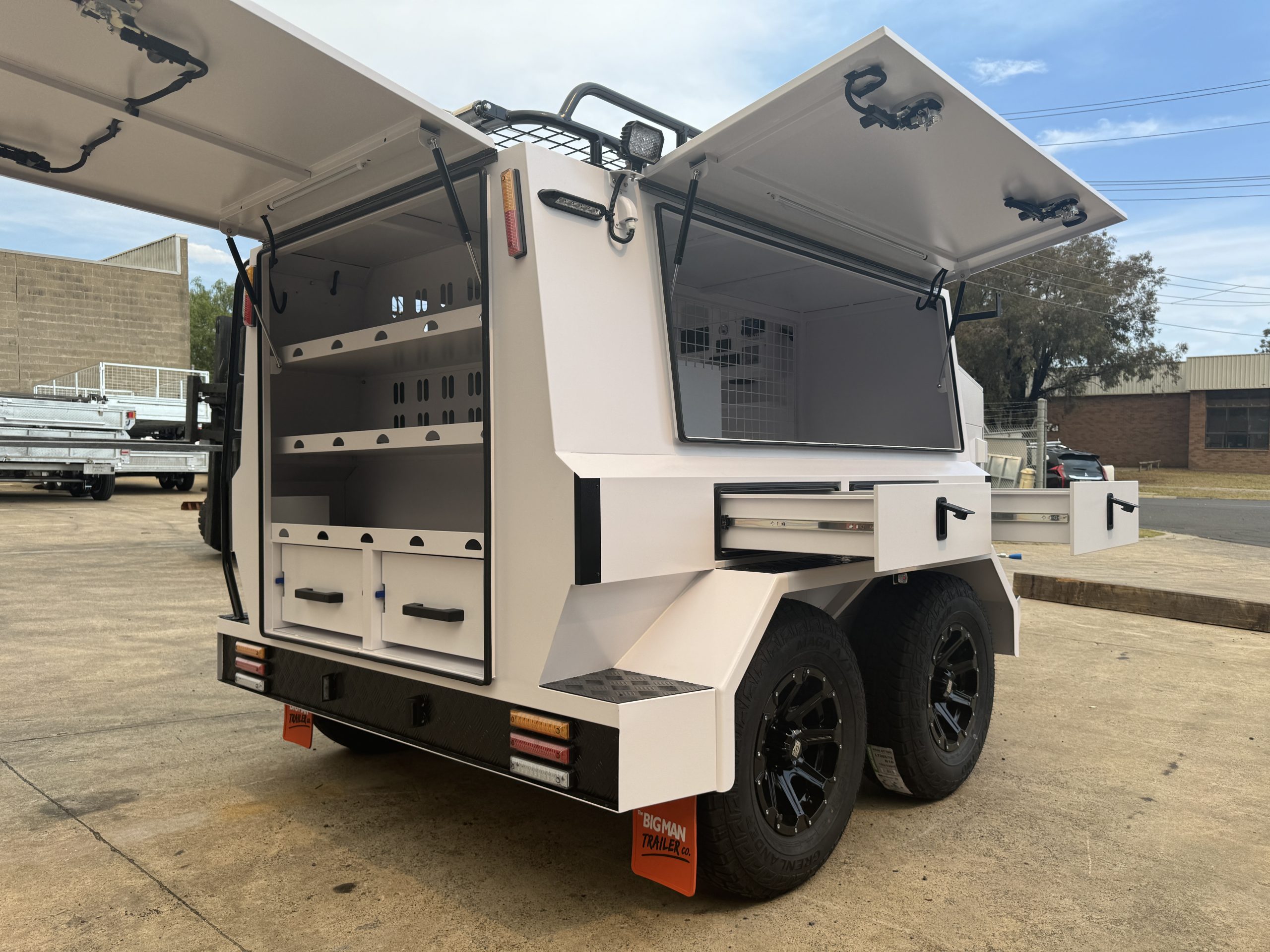

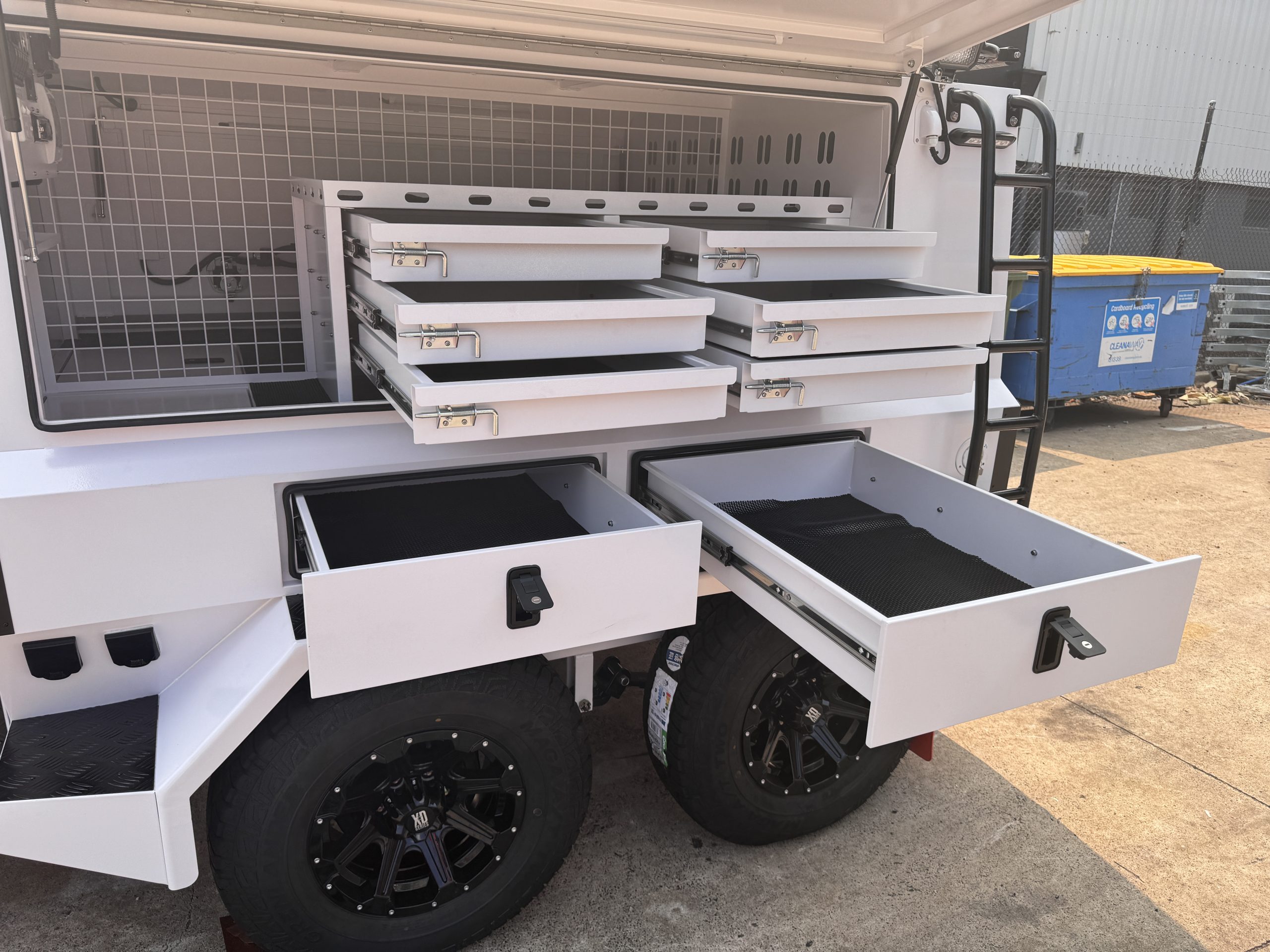

- 3 x shelves located at the rear – bottom shelves 1800 (W) x 450 (L) x 420 (H), top shelf 1500 (W) x 390 (L) x 380 (H)

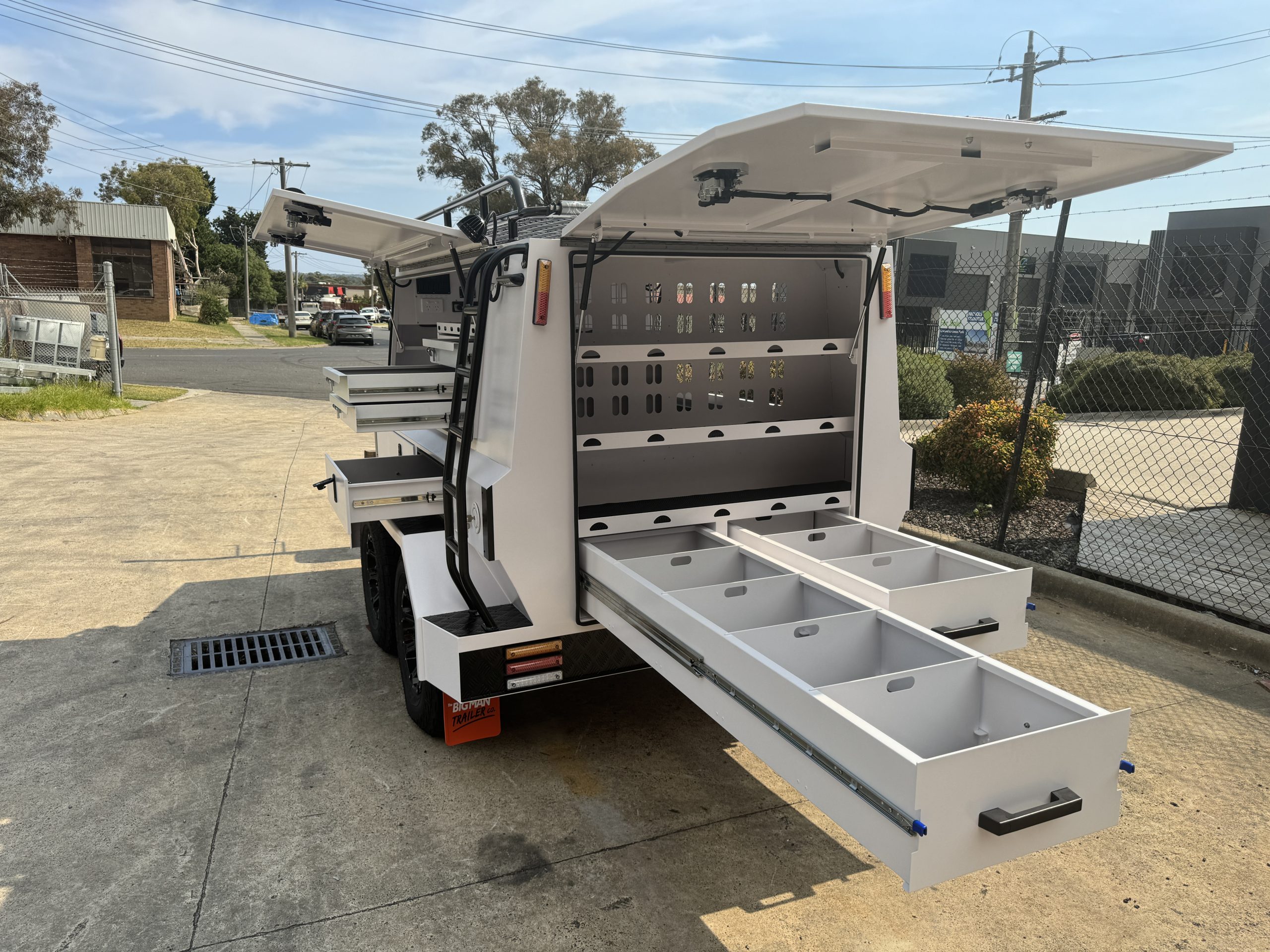

- 2 x slide-out pull-out drawers located at the rear – 500 (W) x 1800 (L) x 400 (H), with latches on the side to open and close
- Additional storage compartment, right side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Additional storage compartment, left side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Internal fans located in front of the wheel holder, behind the fridge
All dimensions in mm.
