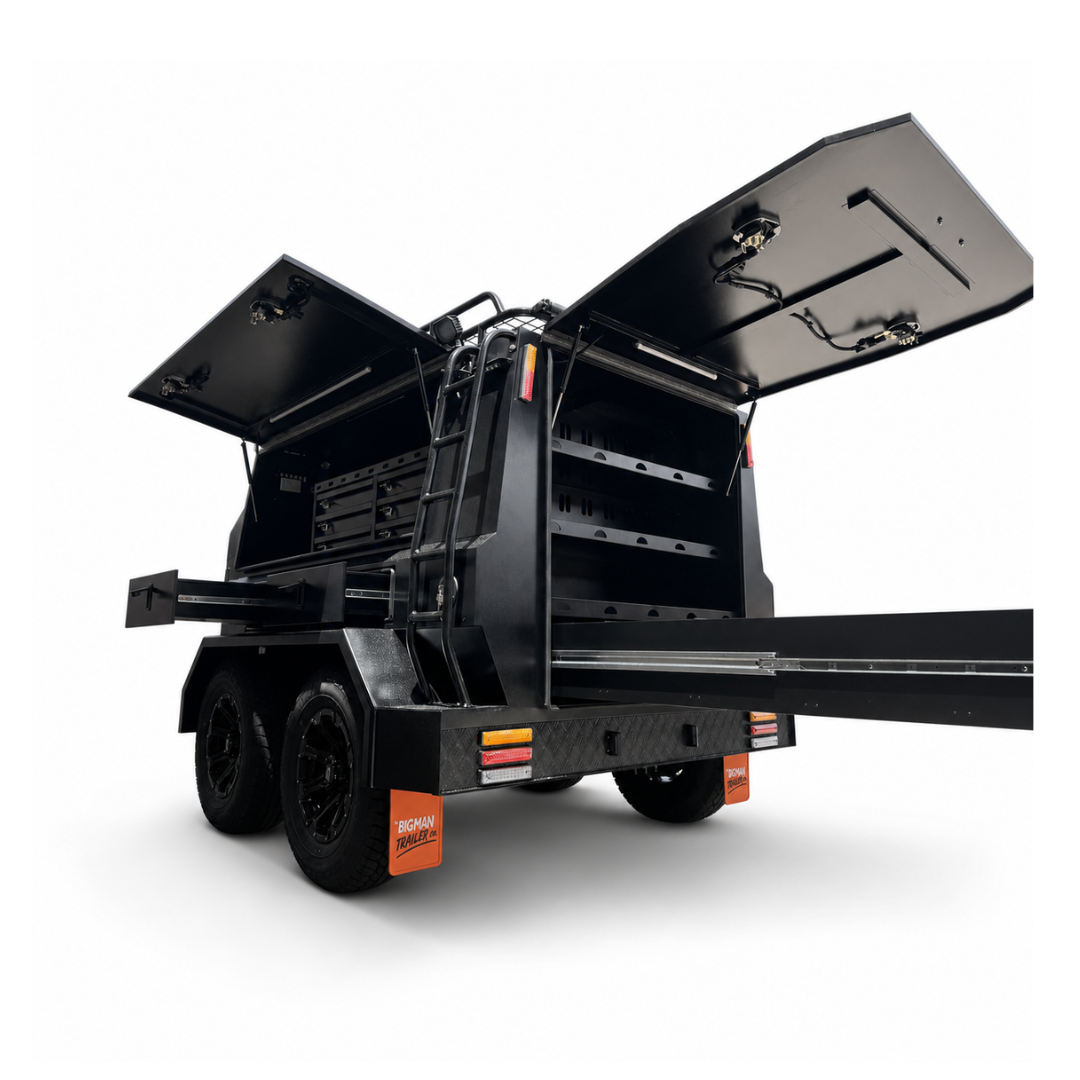

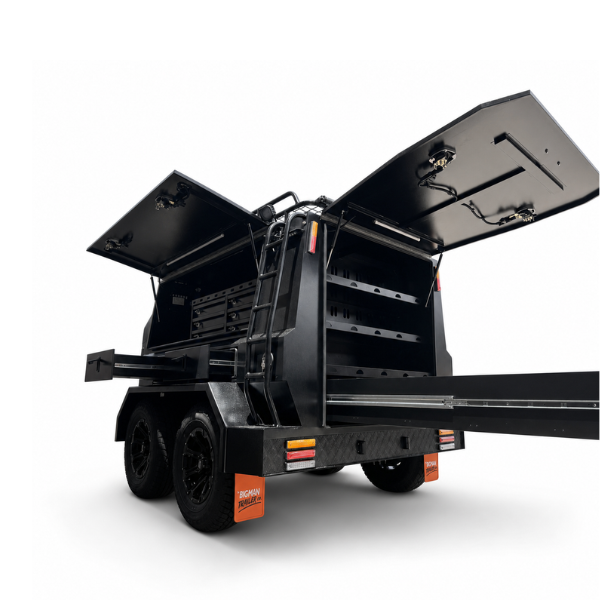

About the 8x5 Trailer for Tools with Drawer - Black
The 8x5 Trailer for Tools combines innovation and durability to meet the needs of tradespeople. Model TT85BV2 has a tare of 1750KG and an aggregate trailer mass of 3500KG, finished in sleek matte black with black checker plate accents.
Storage built around the job
Spacious side compartments, redesigned under-compartment slide-out drawers and a new internal drawer to maximise storage. A 50L fridge slide with a cooling fan and additional compartments enhance on-site efficiency, while rear fog lights improve nighttime safety.
Power and water on board
Engineered for reliability with dual 135Ah AGM batteries, Anderson plugs, external sockets and a 2000W inverter, plus solar panel slide-outs to keep the system topped up. A 70L water tank with a pump and level gauge means you can wash up and clean down wherever you park.
Built to tow, built to last
Supported by rocker roller 9-leaf suspension, 265 75R16 tyres and an 1800mm drawbar, it handles heavy loads with ease. A black ladder rack with spare tyre sits at the front, gas struts take the weight of every door, and a Central Locking System keeps your tools secure.
Body Specs & Features

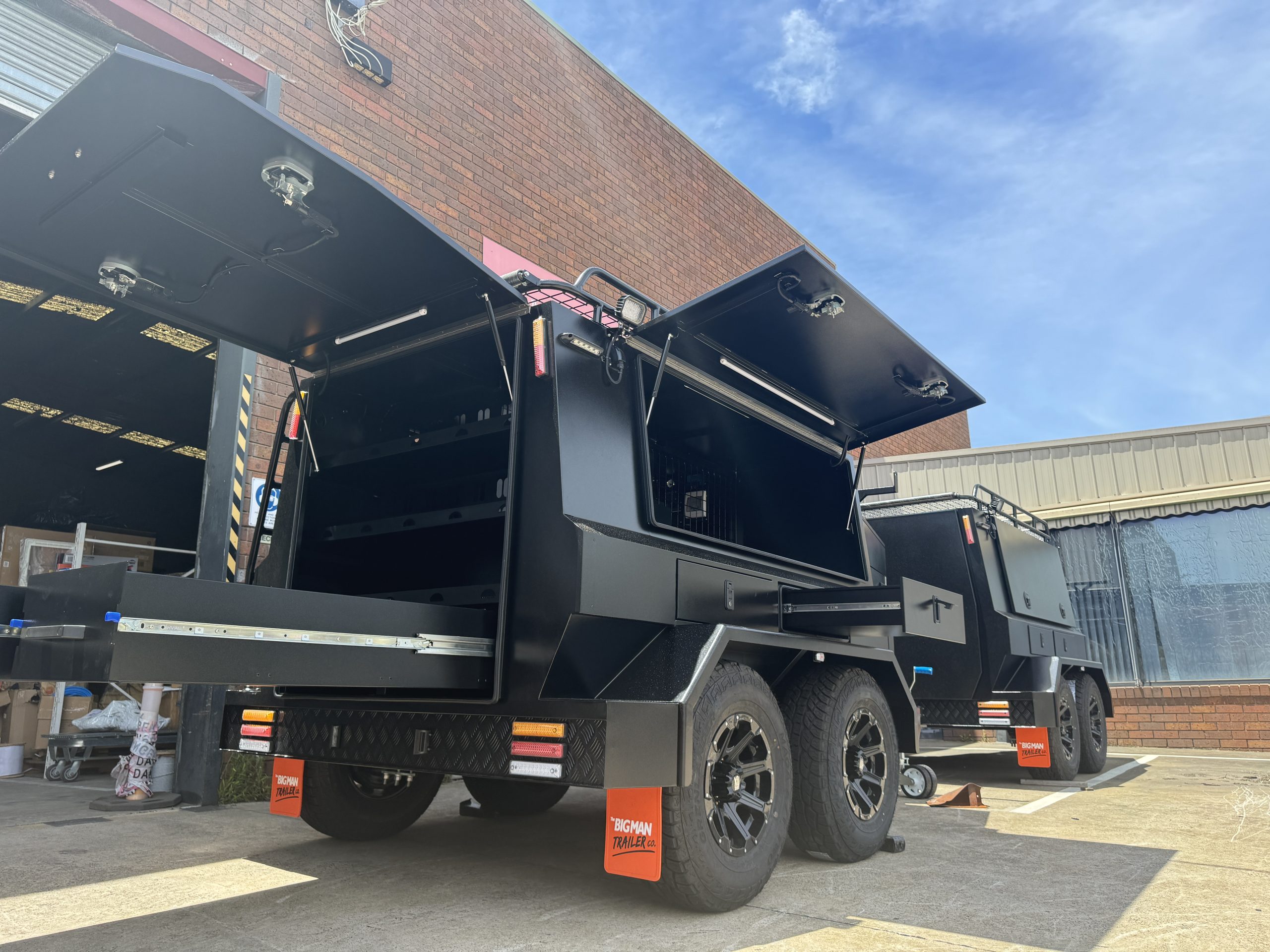

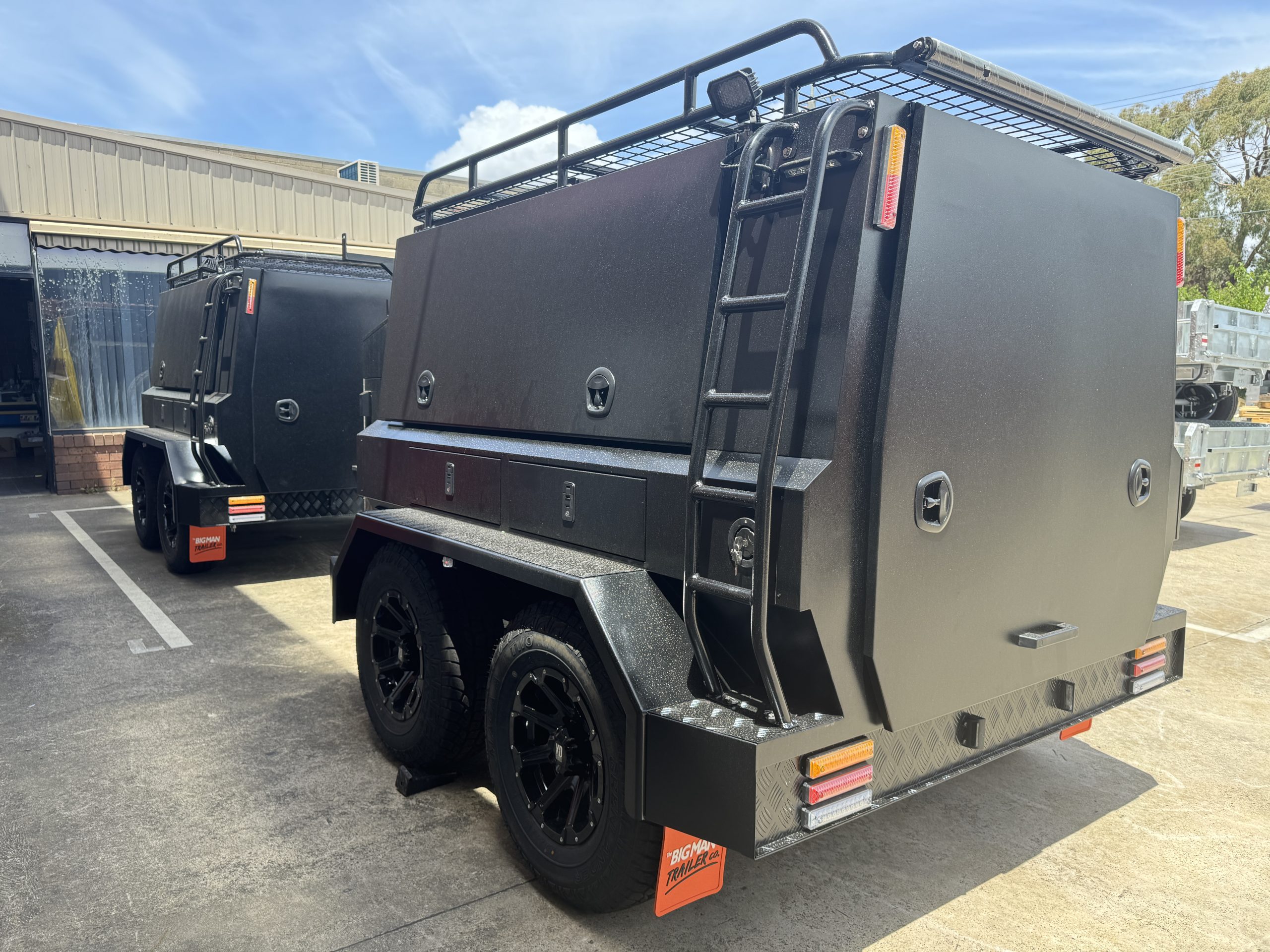

The TT85BV2 is built on a fully welded 3500KG ATM chassis riding on rocker roller 9 leaf suspension and 265 75R16 tyres, finished in matt black inside and out with black checker plate on every step-on area. On board you get a 2000W inverter running off 2 x 135Ah AGM deep cycle batteries with solar slide-outs, a 70L dual water tank with pump and gauge, a slide-out fridge, front and rear ladder racks, a roof luggage carrier, gas struts on every door and a Central Locking System.
| Model | TT85BV2 |
| Overall Size | 4800mm (L) x 2100mm (W) x 2190mm (H) |
| Tare | 1750KG |
| ATM | 3500KG |
| Axle Group Loading | 3500KG |
| Suspension | Rocker roller 9 leaf |
| Tyre Size | 265 75R16 Inch |
| Cold Tyre Pressure | 275kPa |
| Drawbar | 1800mm long, 50 x 100 |
| Jockey Wheel | ARK XO500 – free upgrade |
| External Finish | Matt Black |
| Internal Finish | Matt Black |
| Step-On Areas | Black checker plate finish |

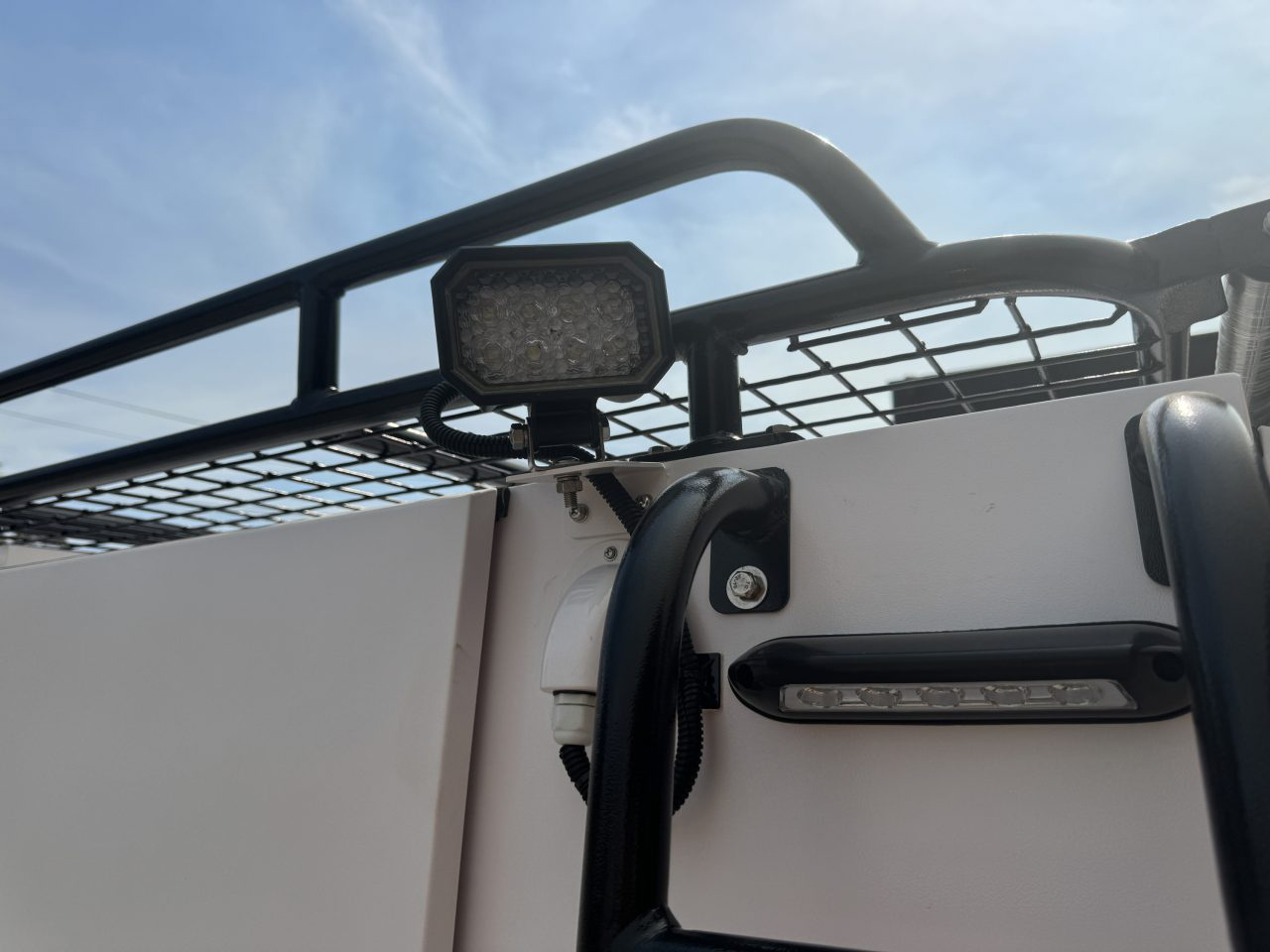

| Lighting | Brake, parker, reverse and number plate lights with a black checker plate finish |
| Inverter | 2000W, located within the main compartment |
| Batteries | 2 x 135Ah AGM Deep Cycle |
| Solar | 2 x solar panel slide-outs located underneath the roof cage |
| Power Outlets | Anderson plugs, external sockets and a power button in the fridge compartment |
| Audio | Power outlets with 2 speaker radios |
| Water Tank | 70L dual water tank found underneath |
| Water Pump | Fitted |
| Water Plumbing | Hoses run inside the chassis on the left-hand side, with a tap you can open |
| Water Gauge | Level indicator found within the compartment |
| Fridge | Slide-out fridge with fan |
| Front Ladder Rack | Black ladder rack with a spare tyre |
| Rear Ladder Rack | 1300mm height |
| Roof Luggage Carrier | Included |
| Locking | Compression press-release locks with Central Locking System |
| Doors | Gas struts fitted to all doors |
Trailer Finance Options Available!
Storage Features

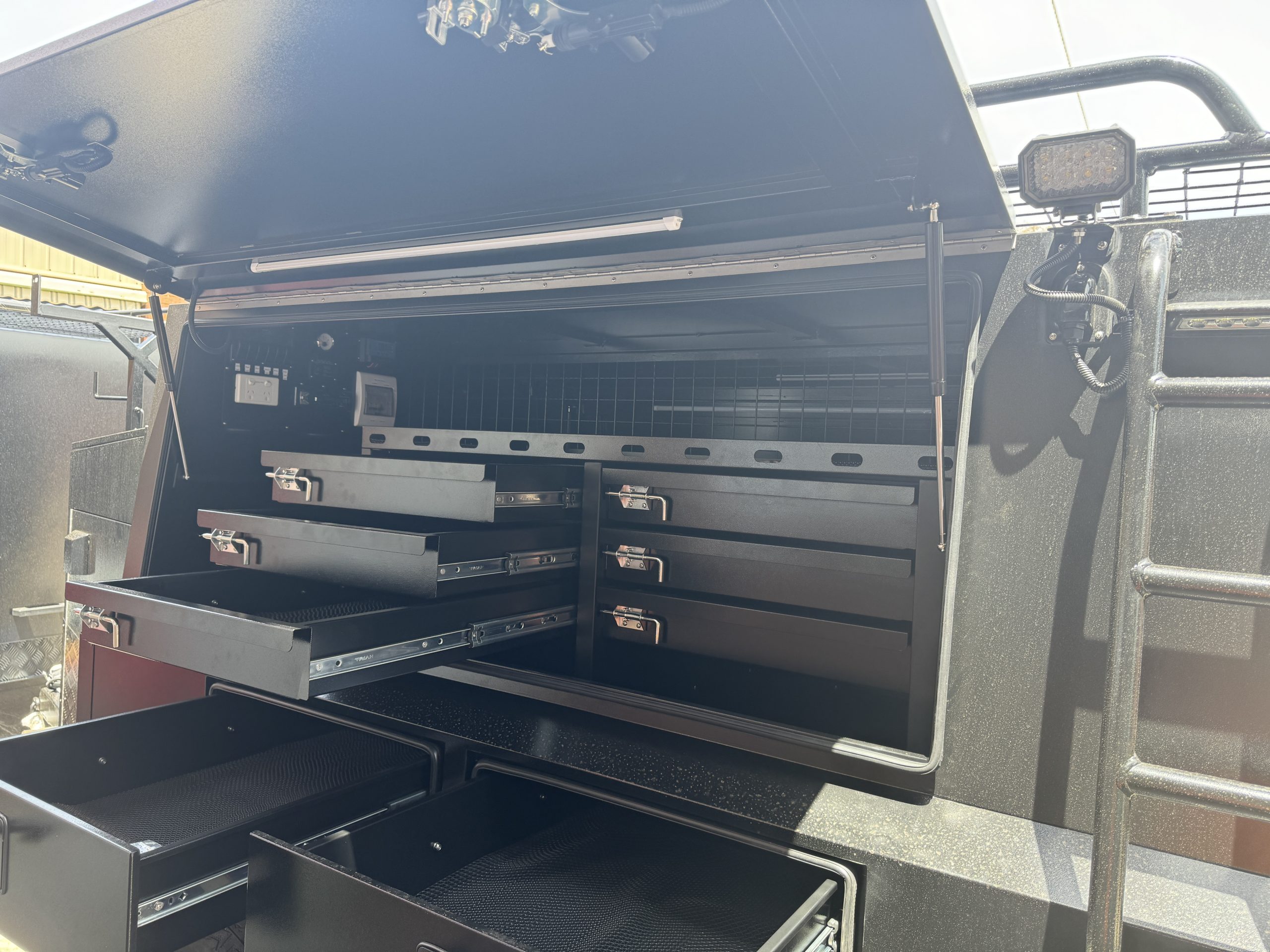

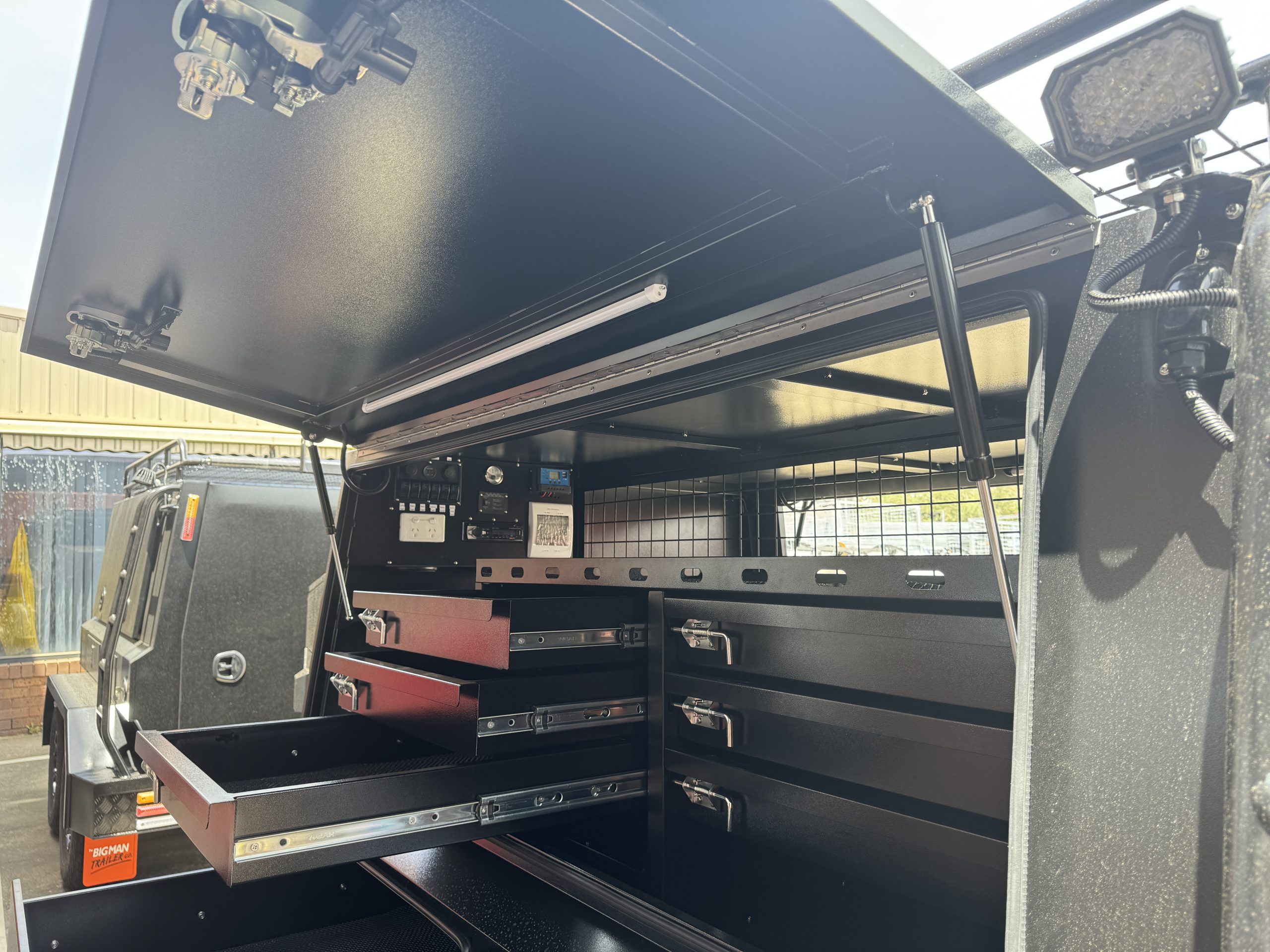

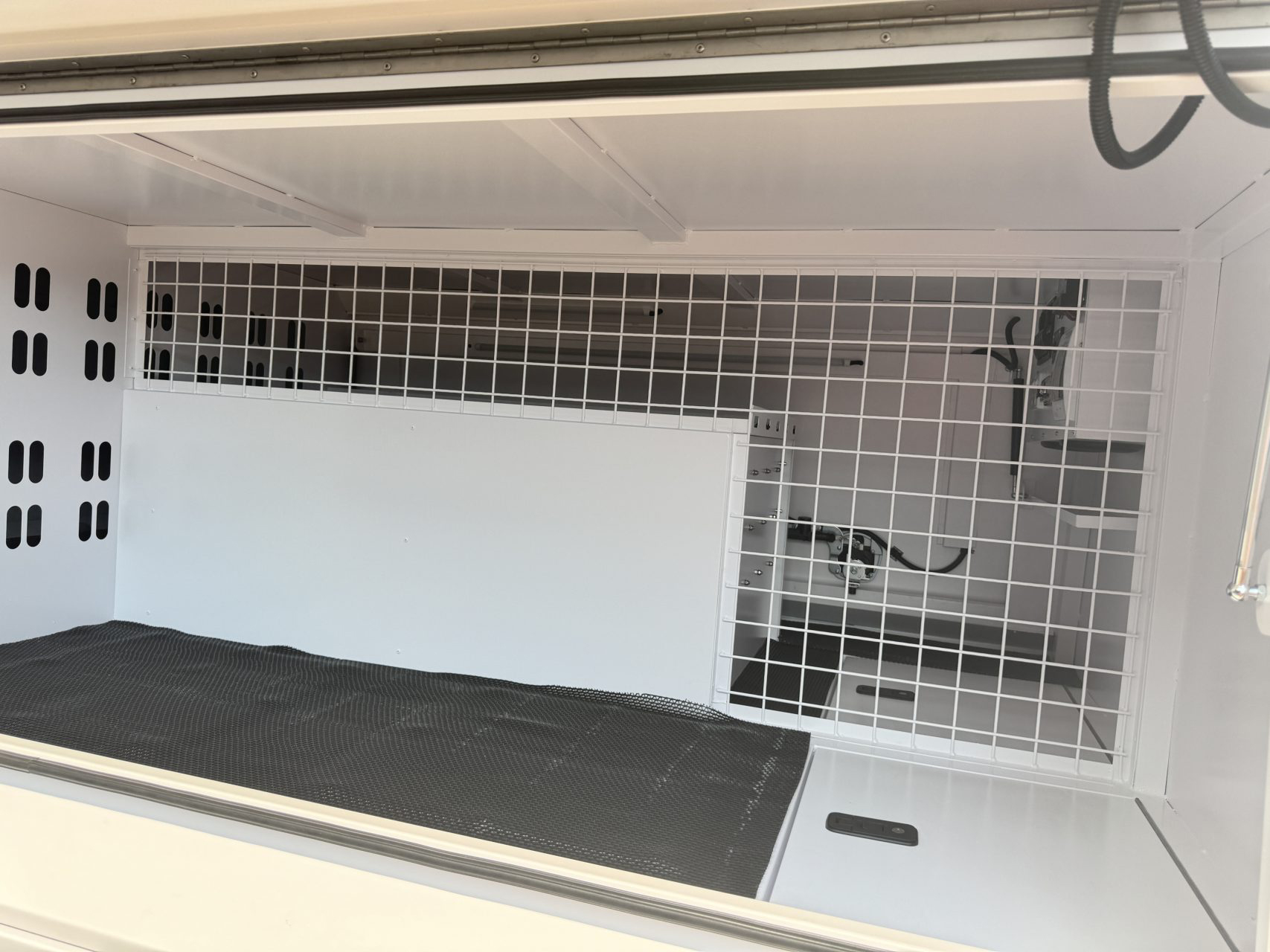

- Main compartment area on either side – 1700 (W) x 1950 (L) x 820 (D)

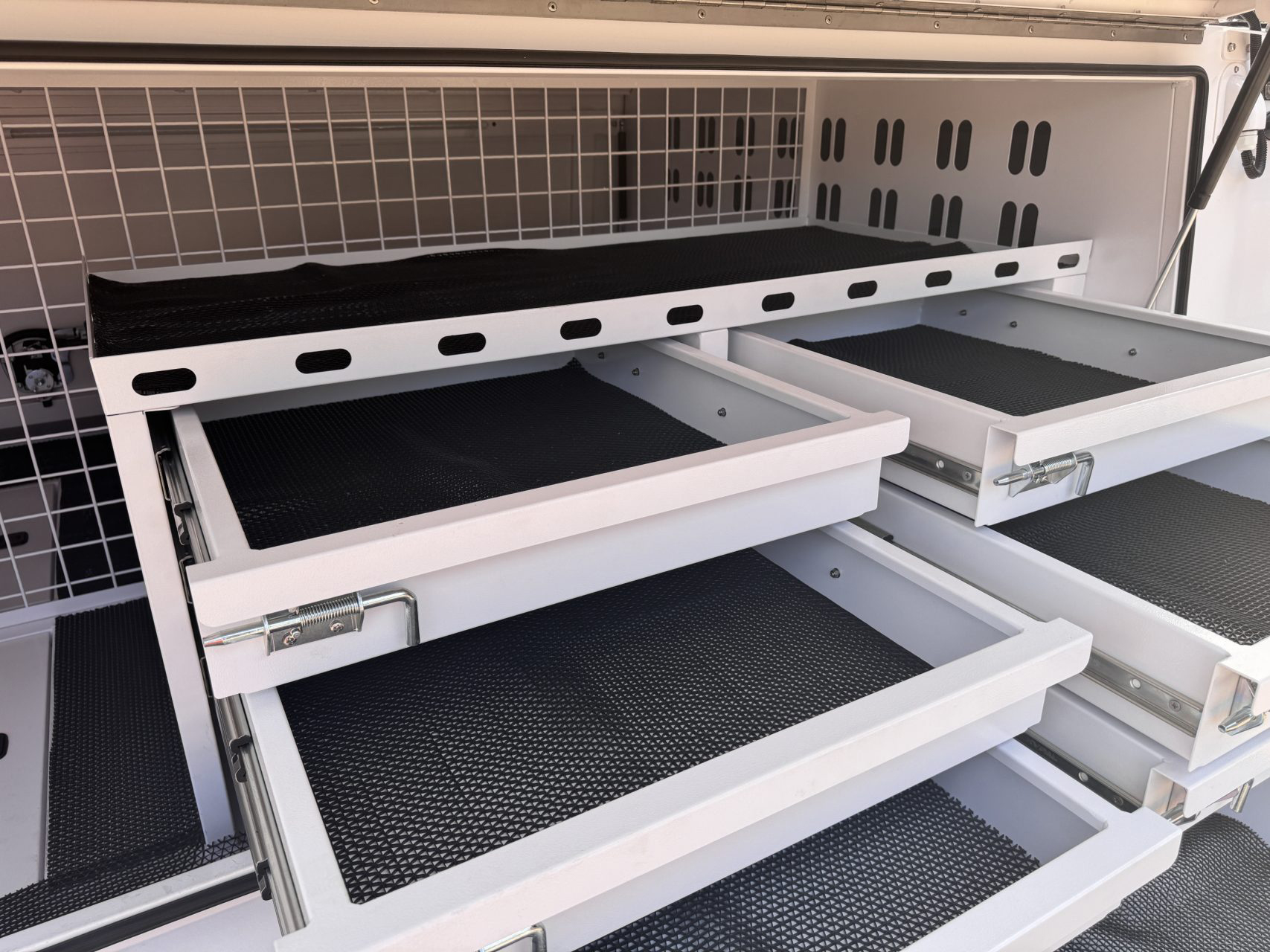

- 2 x smaller drawers underneath the main compartment area – 450 (W) x 450 (L) x 450 (H) each
- Fridge slide-out – 50 Litres, with fan
- Additional compartment above the fridge – 1100 (W) x 600 (L) x 200 (D)

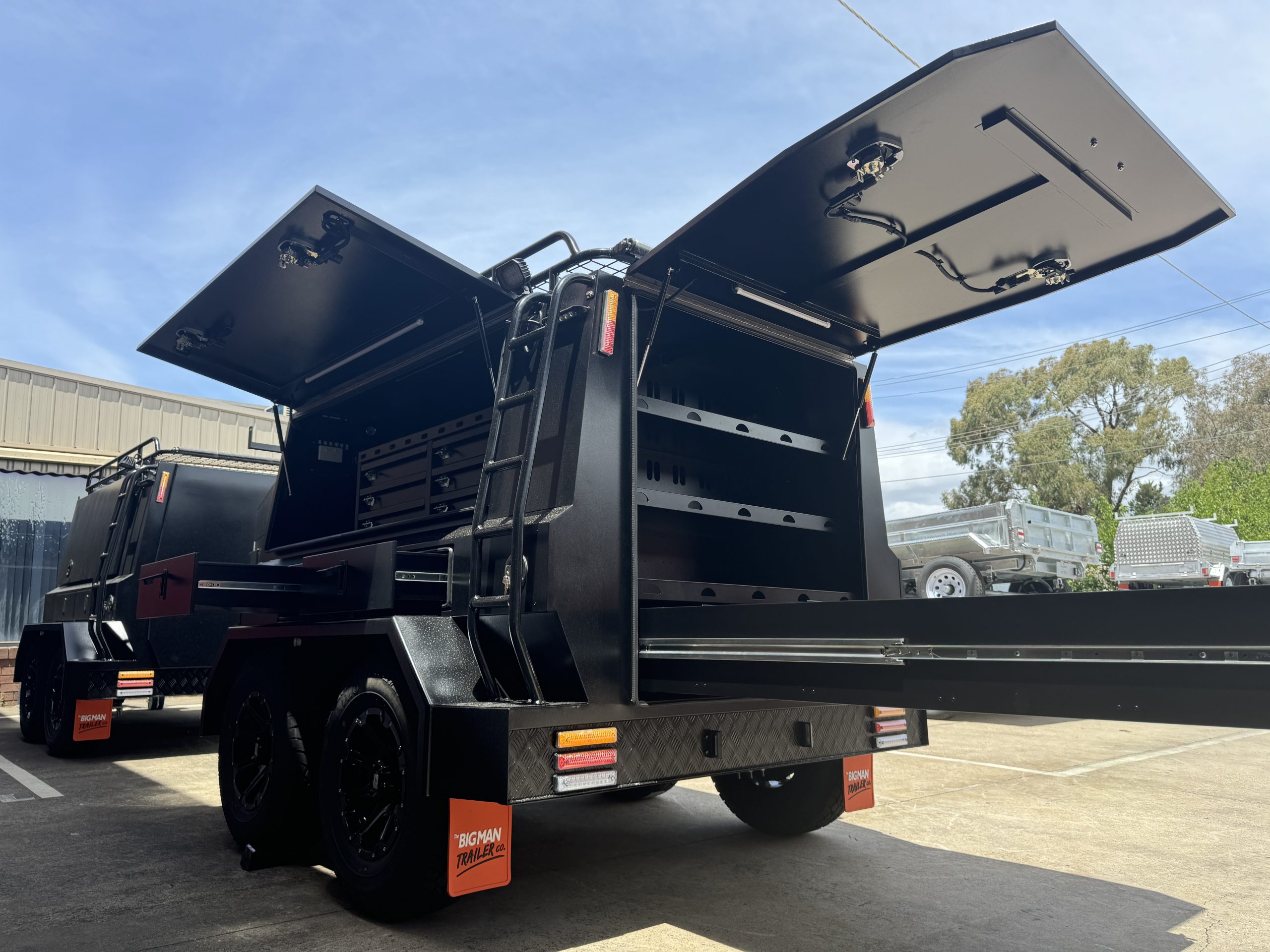

- 3 x shelves located at the rear – bottom shelves 1800 (W) x 450 (L) x 420 (H), top shelf 1500 (W) x 390 (L) x 380 (H)

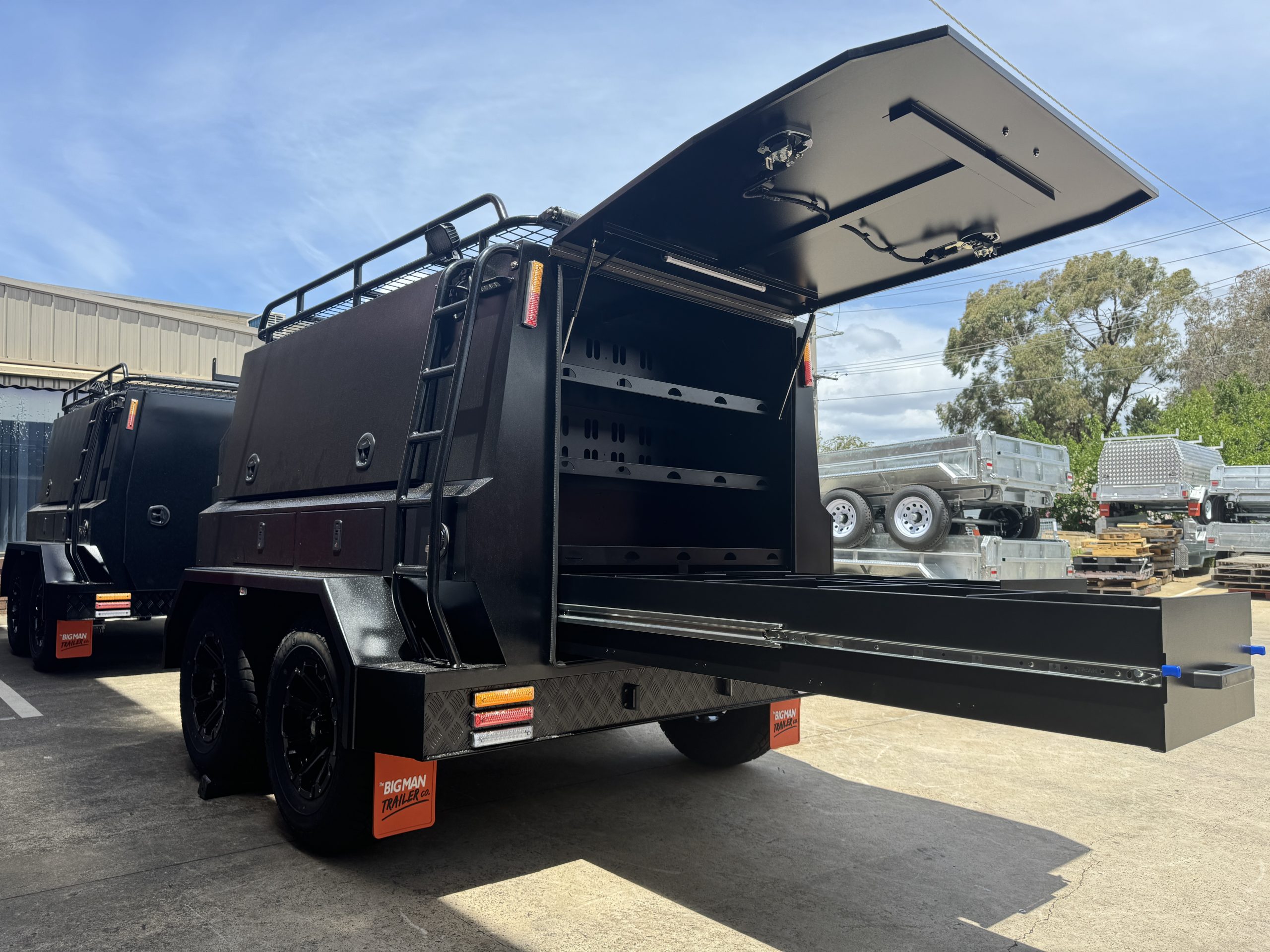

- 2 x slide-out pull-out drawers located at the rear – 500 (W) x 1800 (L) x 400 (H), with latches on the side to open and close
- Additional storage compartment, right side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Additional storage compartment, left side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Internal fans located in front of the wheel holder, behind the fridge
All dimensions in mm.
