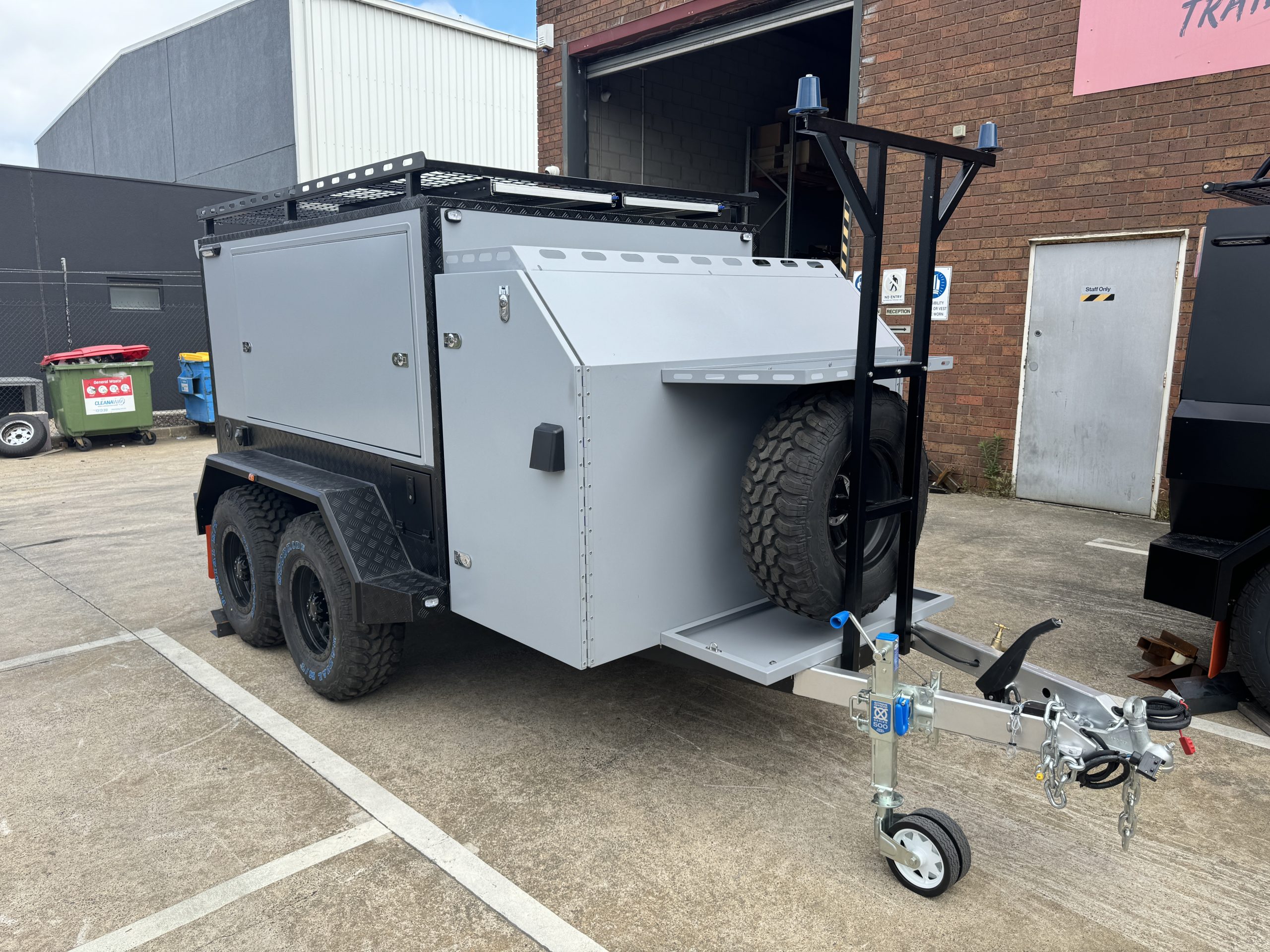

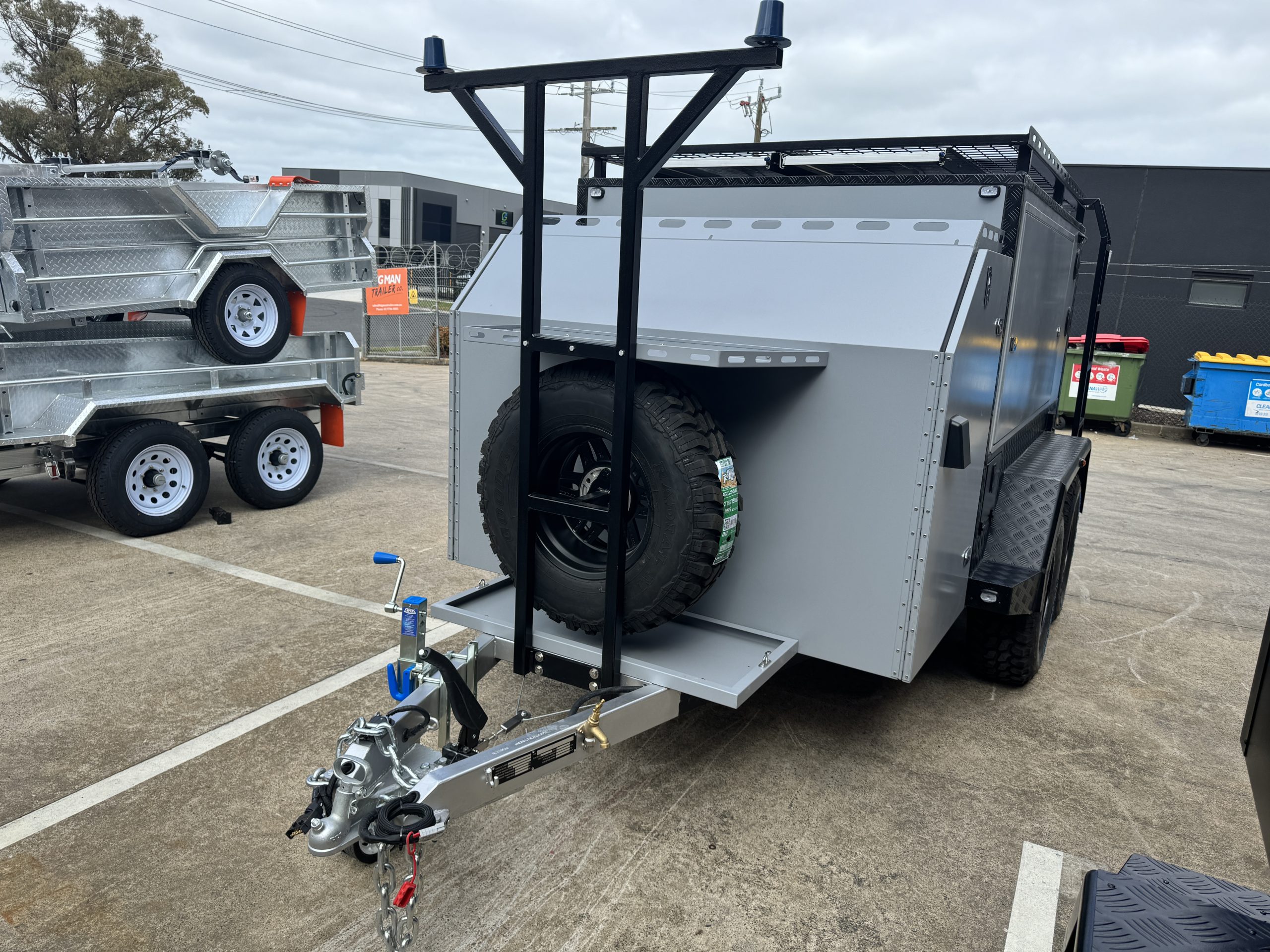

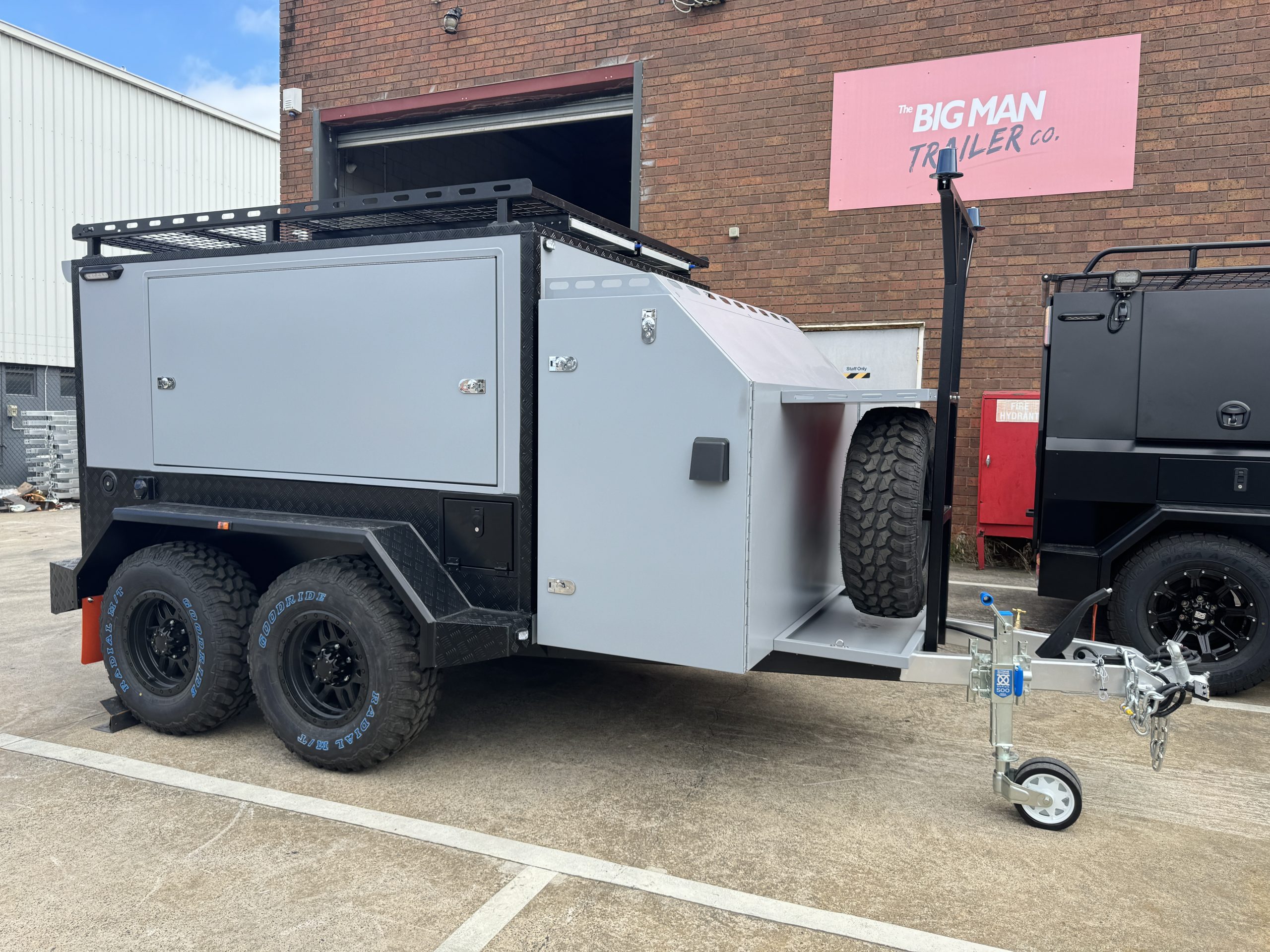

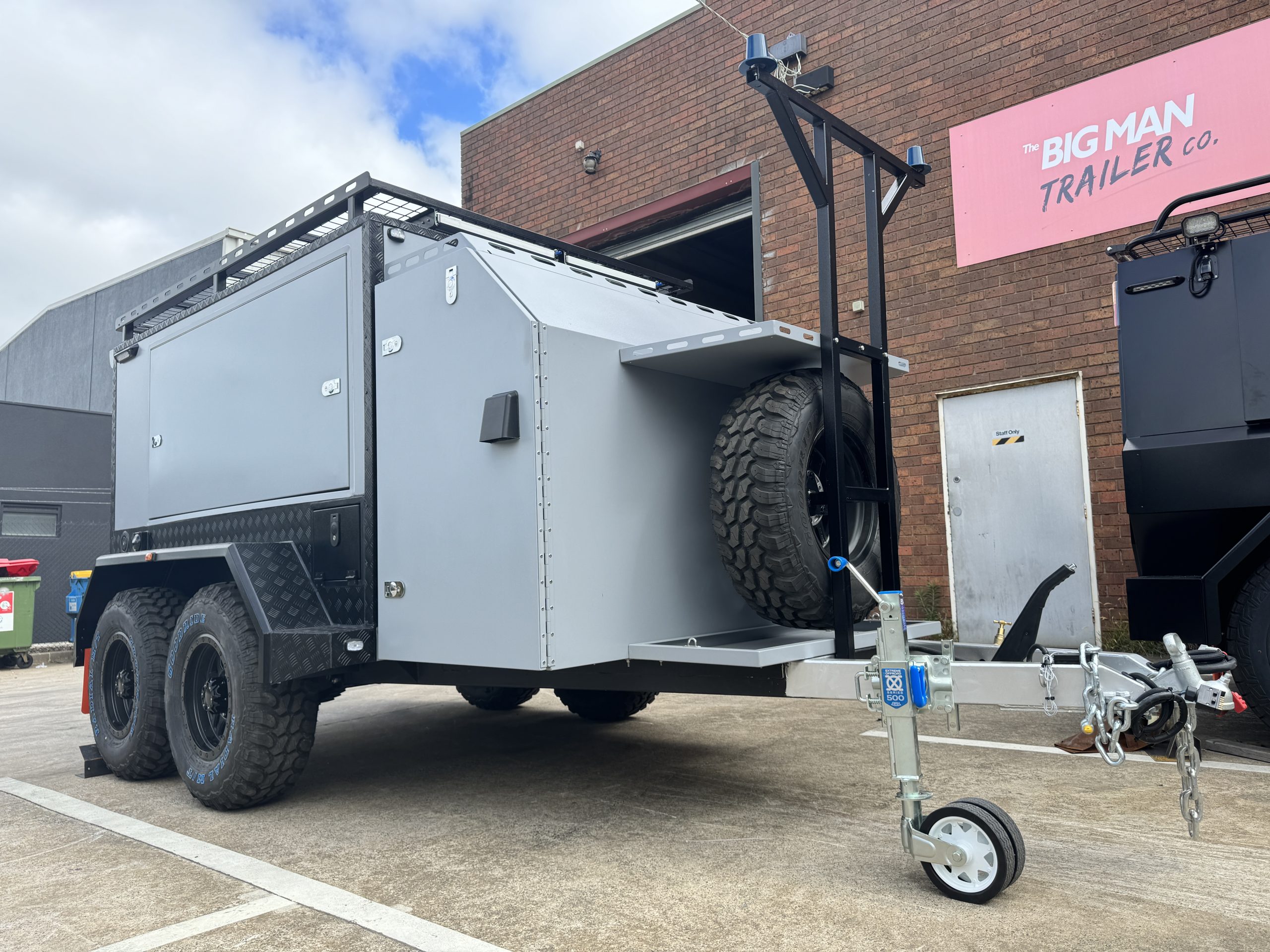

About the 8x5 Carpenter's Trailer - Grey
Designed for the discerning builder and tradesperson, the 8x5 Carpenter's Trailer in Grey is the pinnacle of functionality and durability. Model TT85RG has a tare of 1720kg and an aggregate trailer mass of 3500kg, built on a one-piece galvanised steel chassis.
Storage built around the job

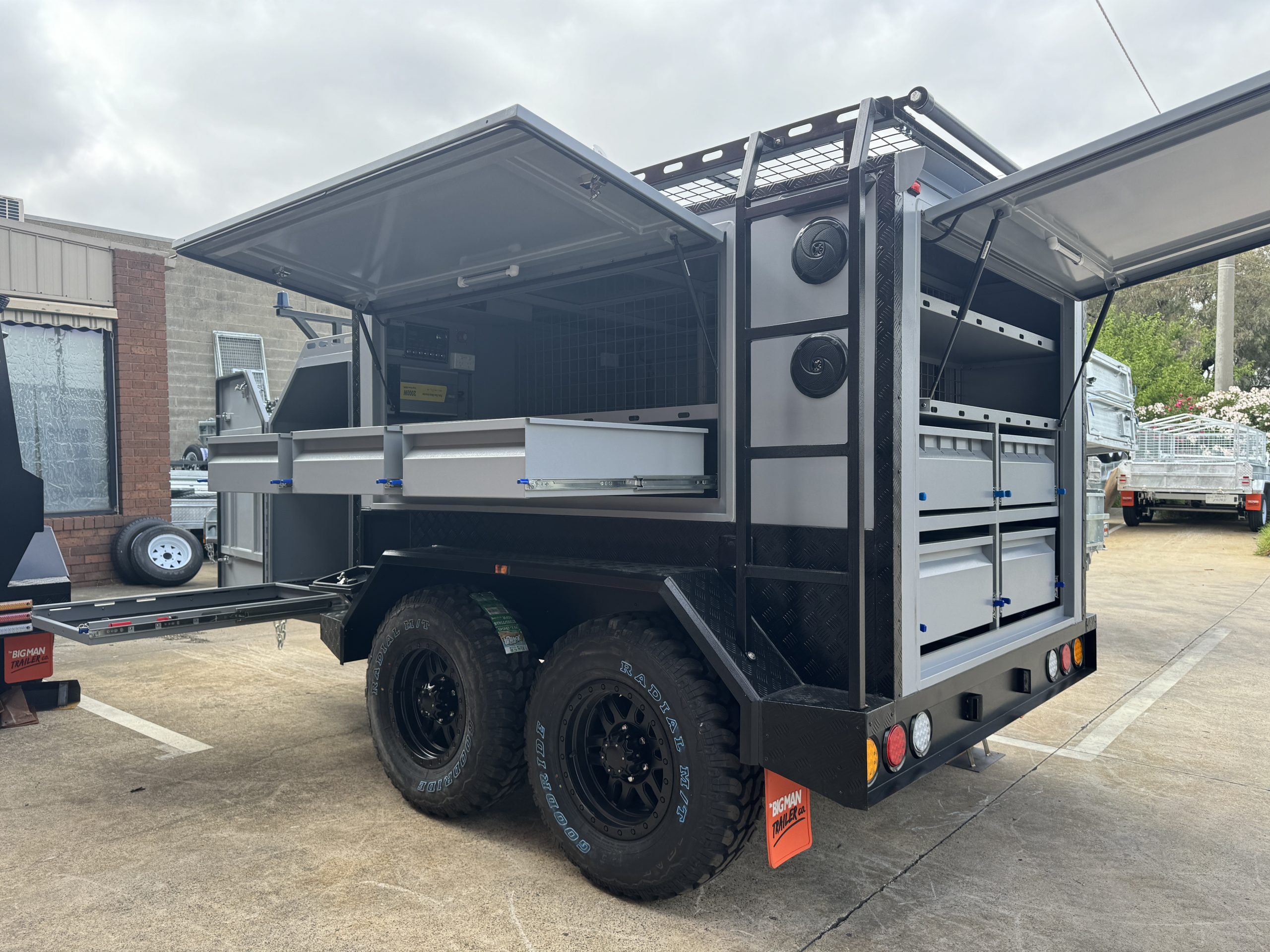

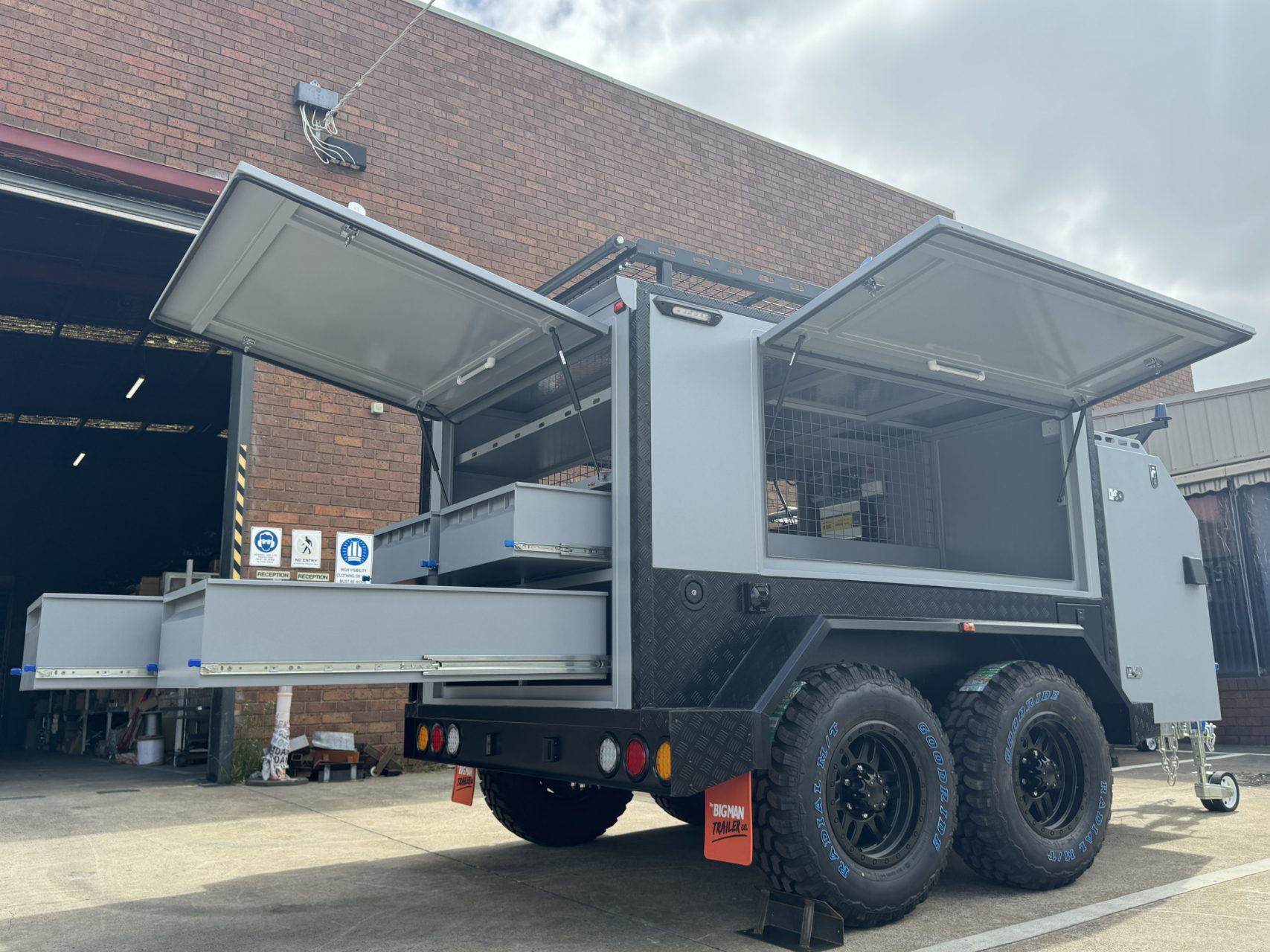

A comprehensive storage system with specialised compartments and slide-out drawers down both sides and across the rear, offering unparalleled organisation for tools and equipment – everything has a home and stays put on the road.
Power and water on board
Fitted with dual batteries, Anderson plugs and external sockets, plus solar panel slide-outs to keep the system charged on site. A 70L water tank with a water gauge means you can wash up and clean down wherever you park.
Built to tow, built to last

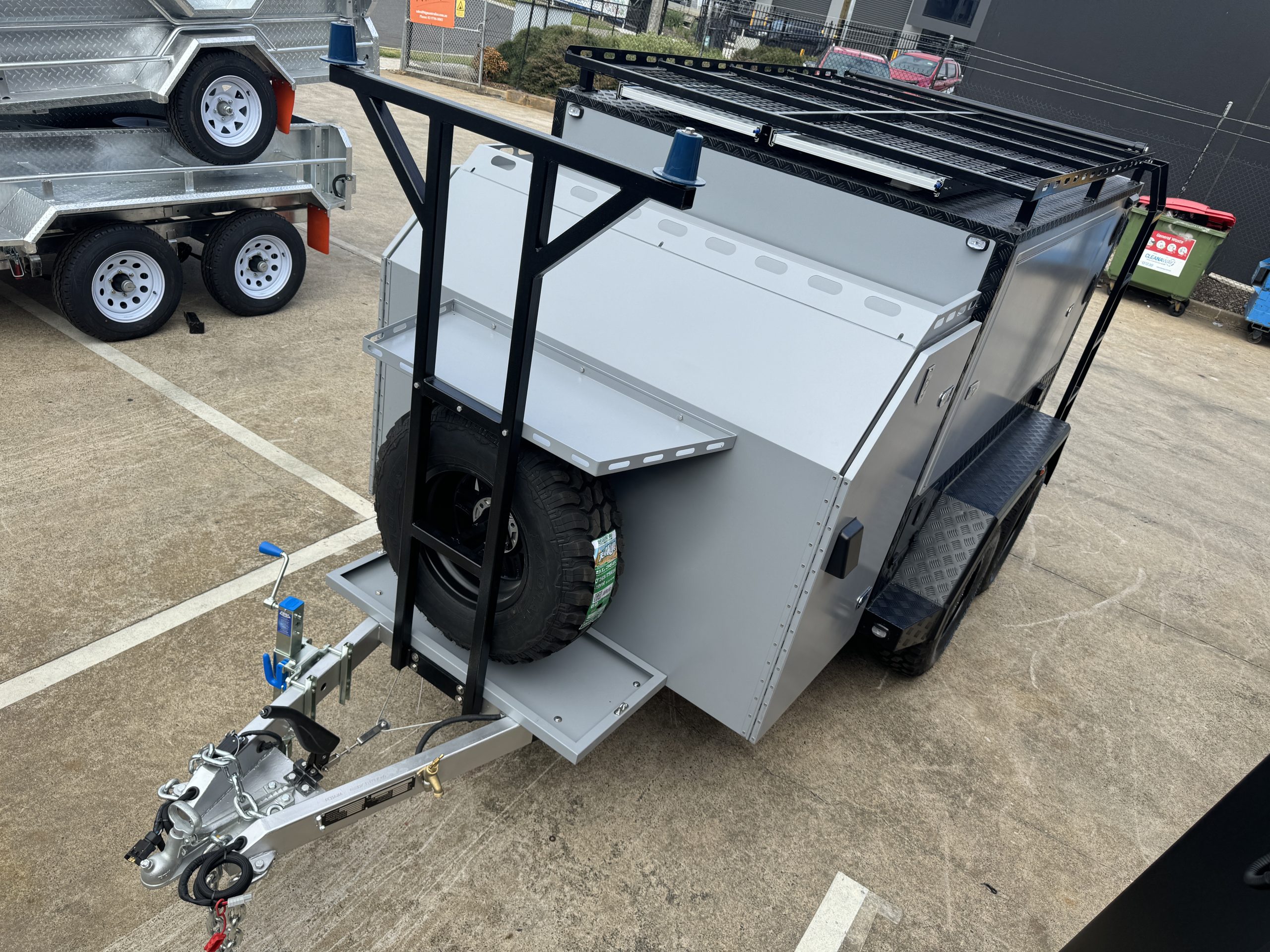

Running 265 75R16 inch tyres, an 1800mm drawbar for superior manoeuvrability and rocker roller 8-leaf suspension. A black ladder rack, roof luggage carrier, compression press-release locks and a Central Locking System add security and convenience, while the black checker plate finish keeps it looking sharp on any job site.
Body Specs & Features
The TT85RG is built on a one-piece galvanised steel chassis with 70mm solid axles, 8-leaf rocker roller suspension and 12-inch electric drum brakes all around. On board you get a 2000W pure sine wave smart inverter running off 2 x 100Ah batteries with slide-out solar panels, a 70L water tank on a 12V pump, LED lighting inside and out, 1900mm rear trundle drawers and roof access via a built-in heavy-duty ladder.
| Model | TT85RG |
| Overall Size | 4800mm (L) x 2100mm (W) x 2170mm (H) |
| Trailer Dimensions | 8 x 5 Dual Solid Axle Model |
| Tare Mass | 1720kg |
| ATM | 3500kg |
| Chassis | One-piece design, made from galvanised steel |
| Axles | 70mm solid axles |
| Suspension | 8-leaf Rocker Roller |
| Brakes | 12-inch electric drum brakes all around |
| Wheels & Tyres | 265/75R16 LT tyres on black alloy wheels, fitted to Landcruiser 6 bolt hubs |
| Tow Ball | 50mm |
| Jockey Wheel | ARK500 – free upgrade |
| Colours | Matte White, Matte Black, Grey |
| Batteries | 2 x 100Ah |
| Solar | 2 x 110W solar panels mounted on slides to get more sun on-site |
| Inverter | 2000W pure sine wave smart inverter |

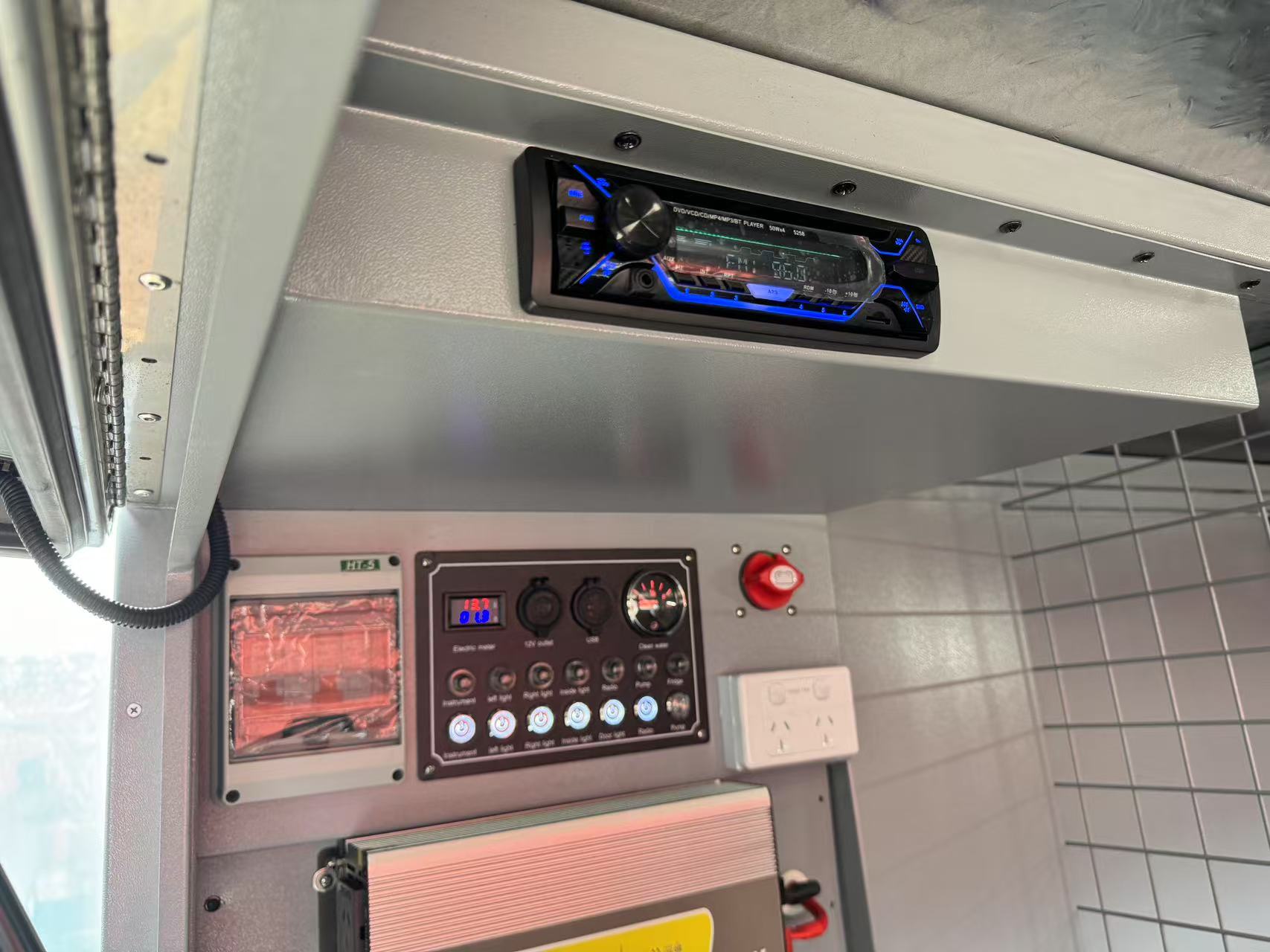

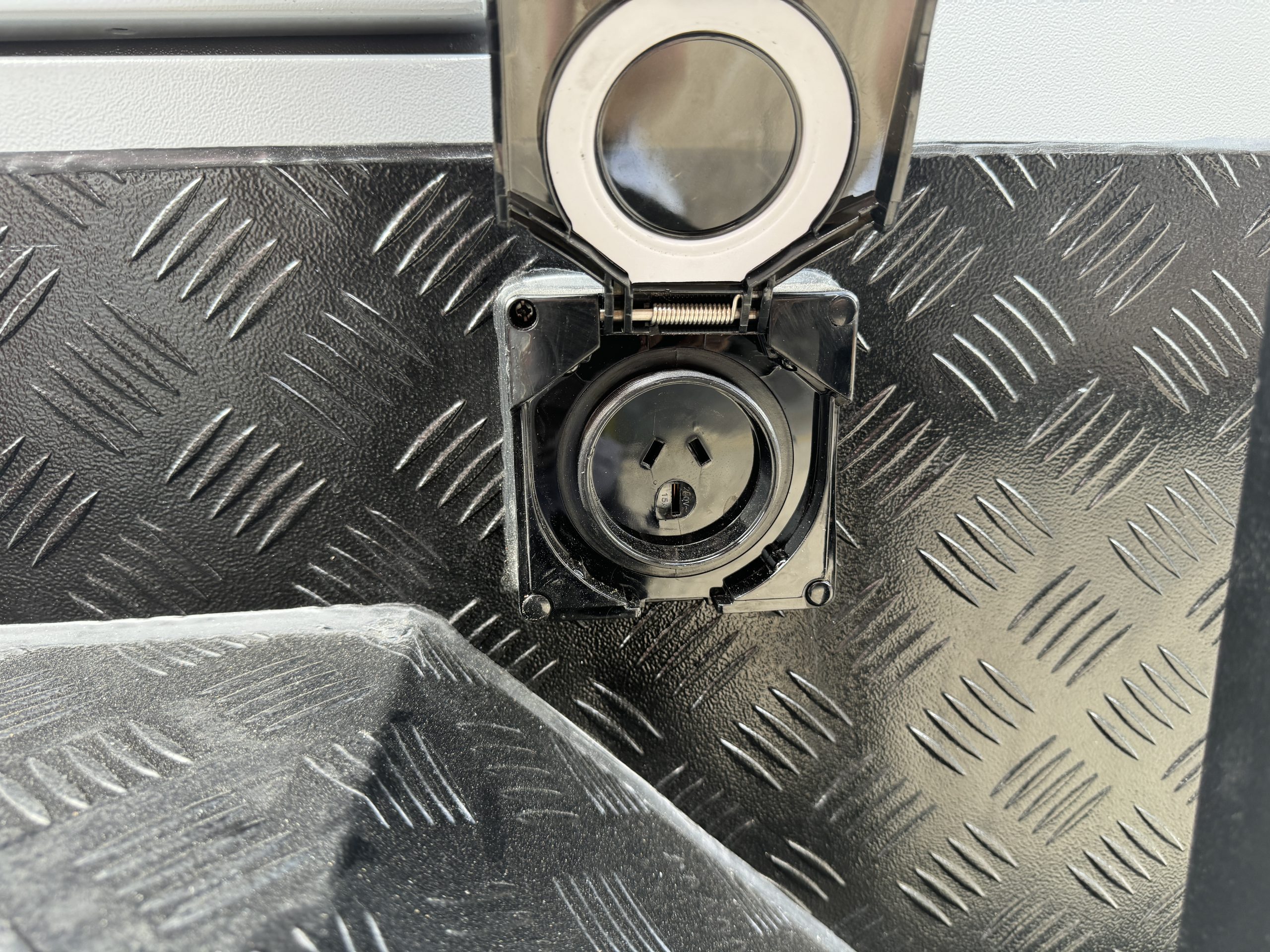

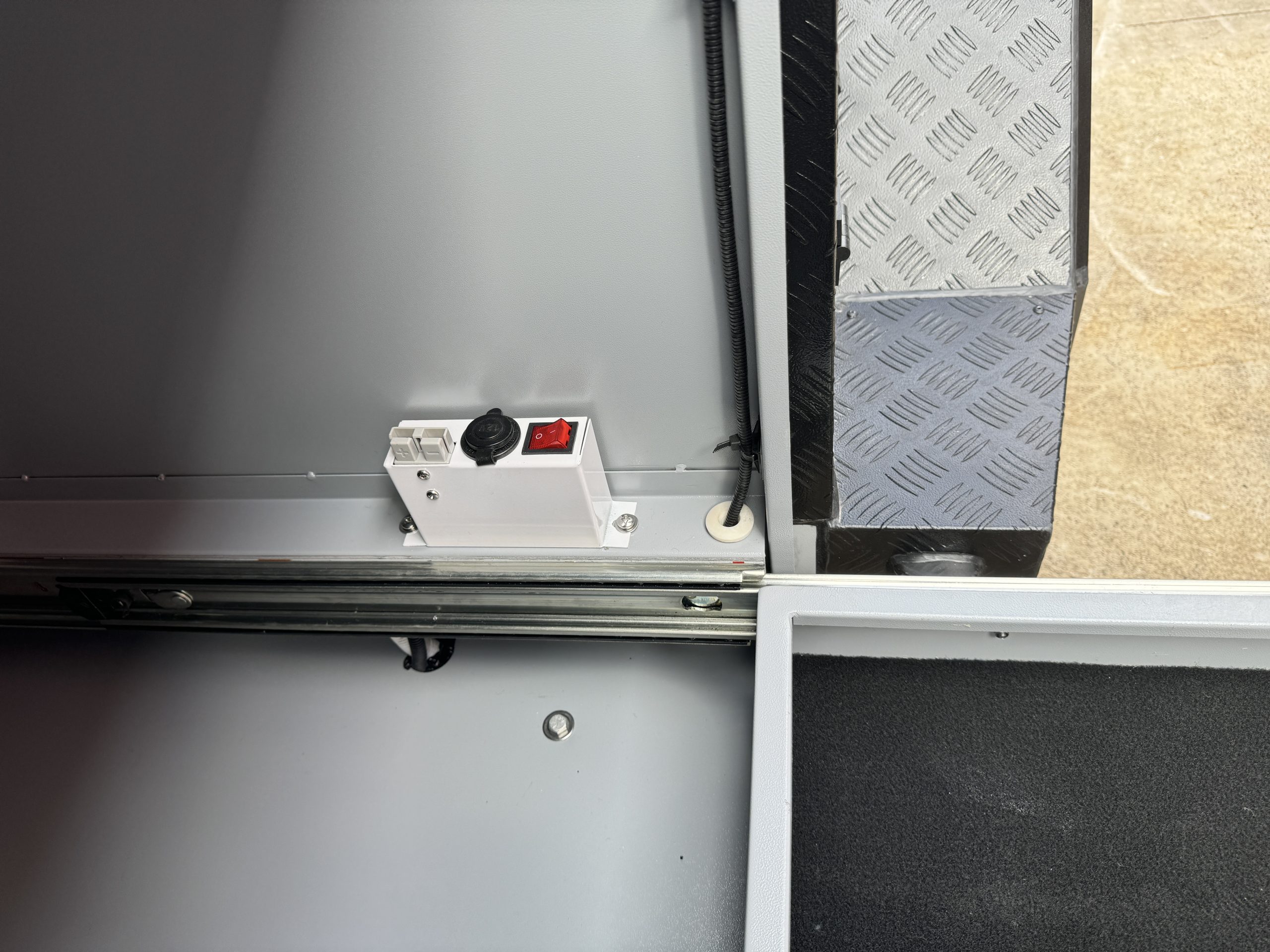

| Power Outlets | Double GPOs, USB phone charger, 12V charger and Anderson plug all included |

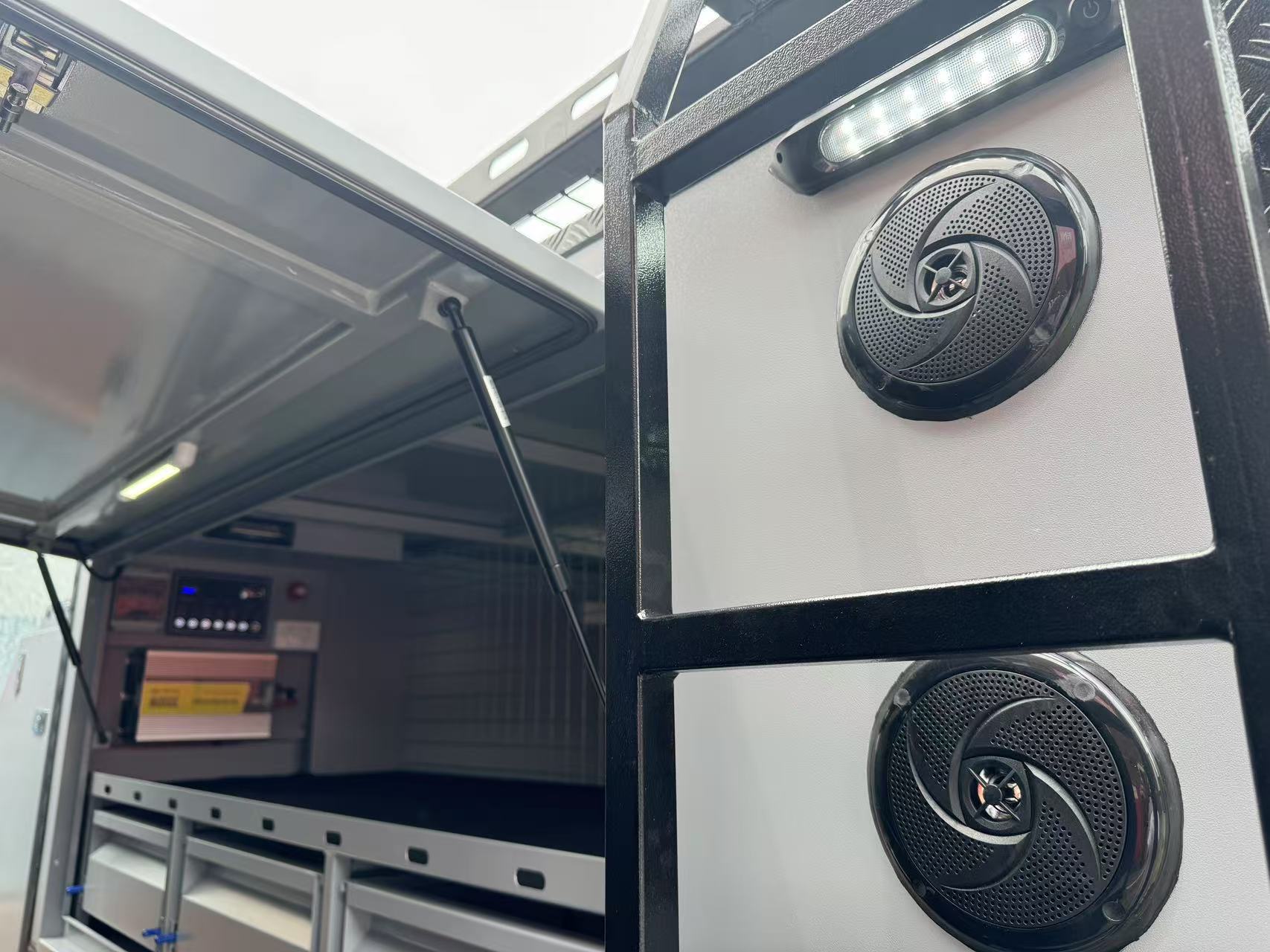

| Audio | Power outlets with 2 speaker radios |
| Lighting | LED lighting inside and outside |
| Water Tank | 70L on a 12V pump with tap |

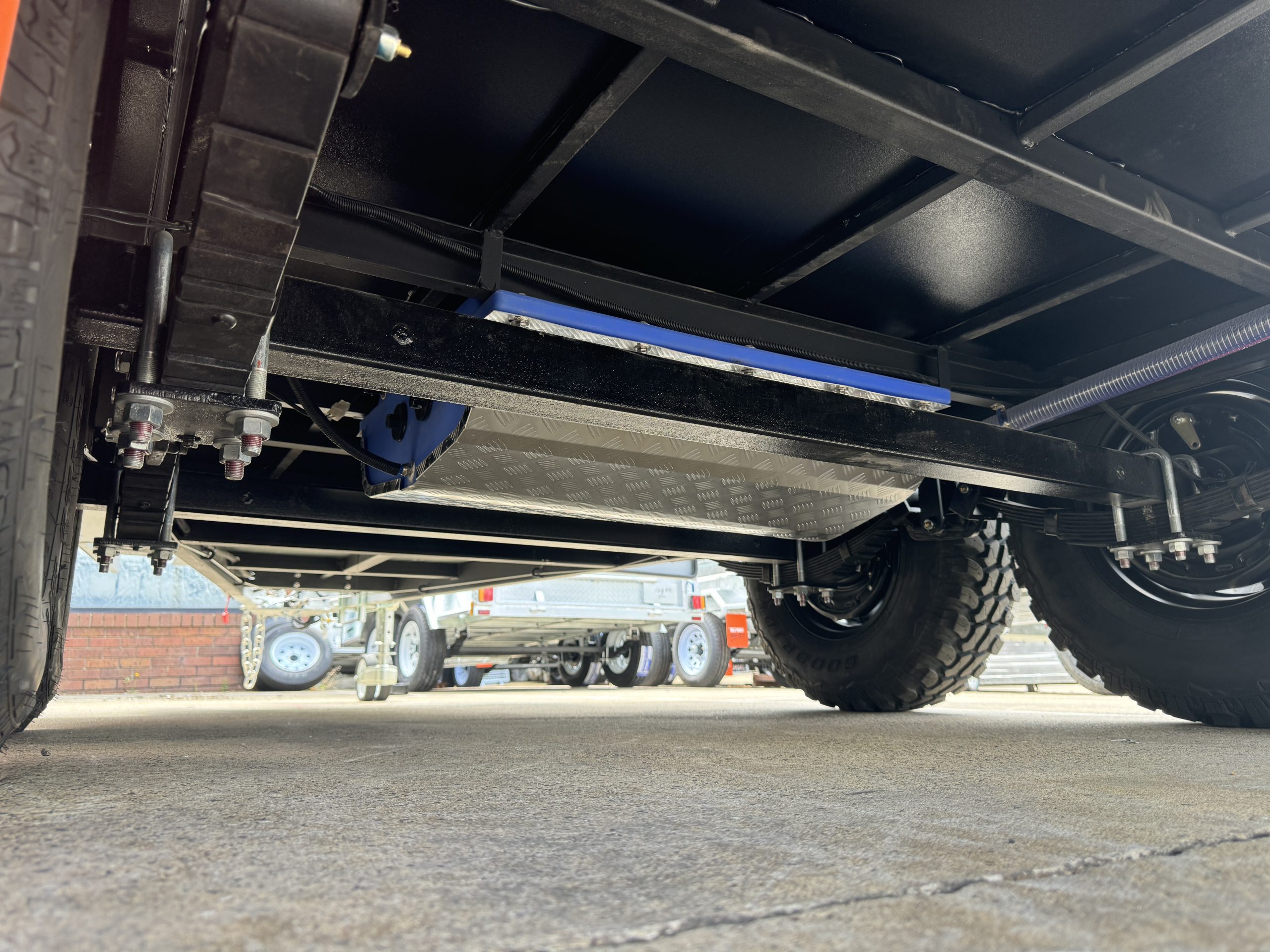

| Water Plumbing | Tank runs inside the chassis and sits on the left-hand side |
| Water Gauge | Level indicator found within the compartment |
| Drawbar Tap | High-pressure tap mounted to the drawbar |
| Rear Trundle Drawers | 1900mm long |
| Ladder Roller | Rear load ball bearing ladder roller |
| Roof Access | Heavy-duty built-in ladder |
| Locking | Compression press-release locks with Central Locking System |
| Doors | Gas struts fitted to all doors |
Finance Options!
You are able to leave a 20% deposit, otherwise our team have multiple brokers able to get the products in your hand whilst you pay how you want to.
Storage Features

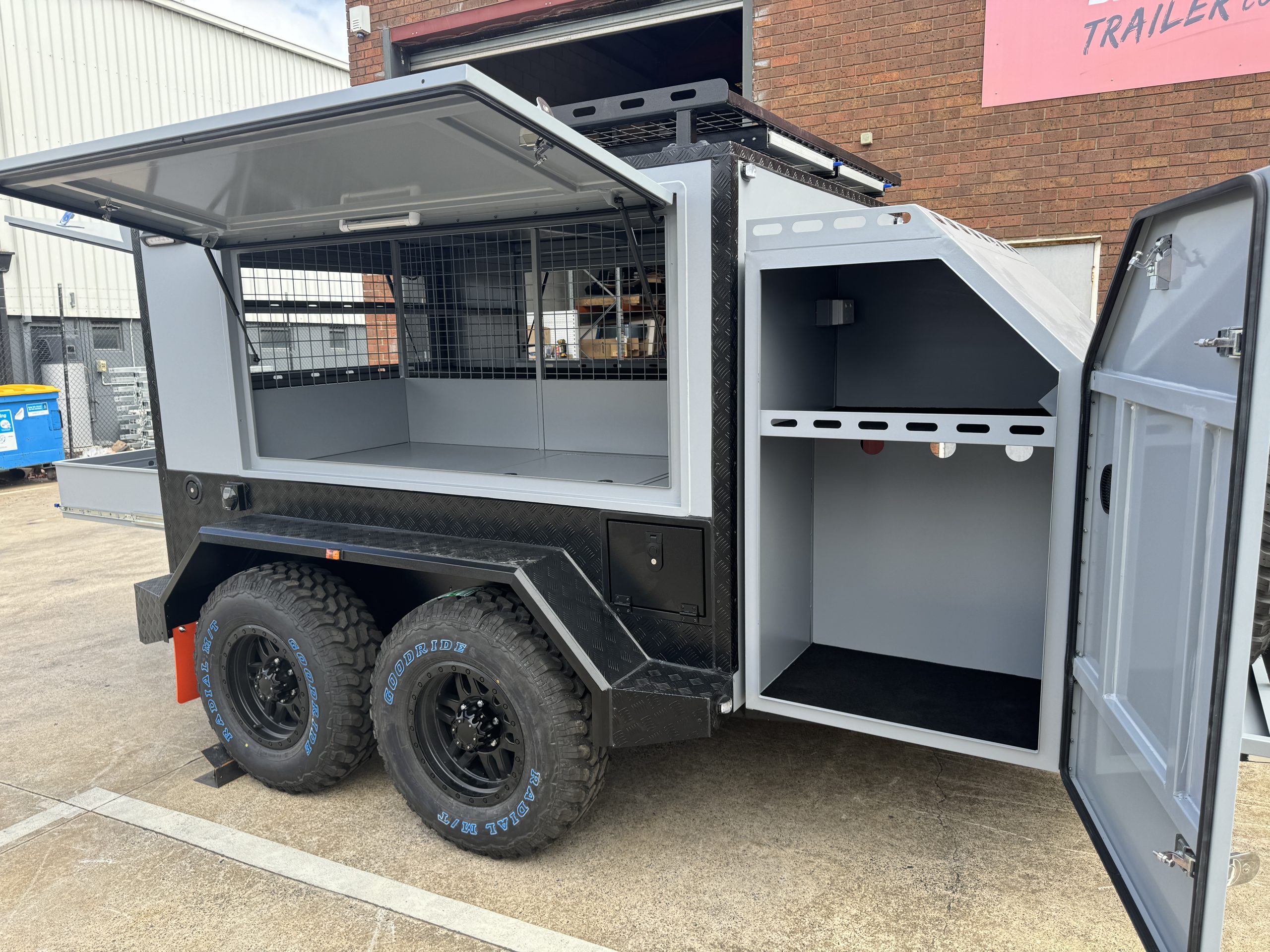

- Main compartment area, left side – 1850 (W) x 810 (L) x 610 (H)

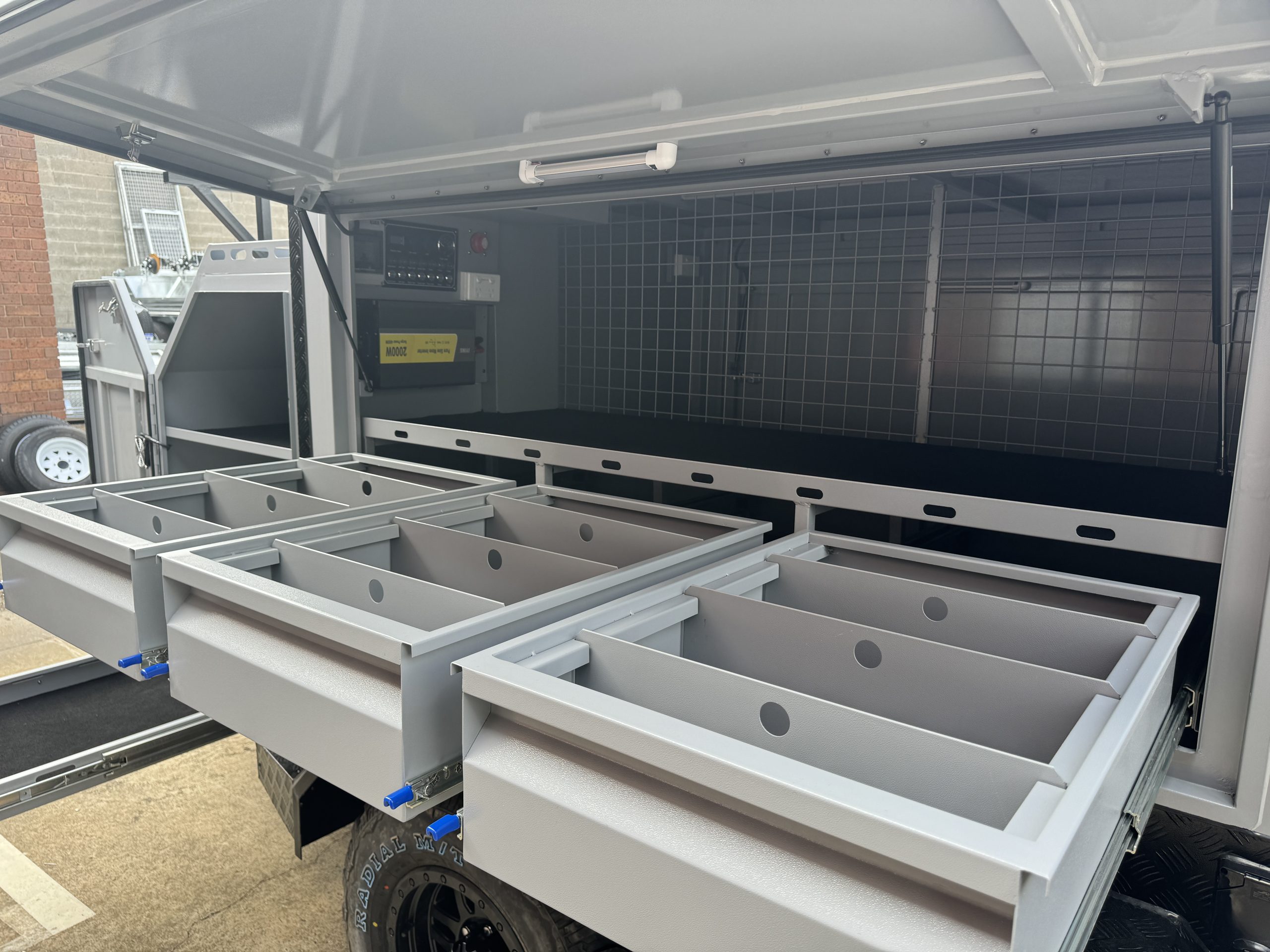

- 3 x drawers in the main compartment area – 480 (W) x 740 (L) x 200 (H) each
- Left side slide-out storage – 670 (W) x 1090 (L) x 660 (H)

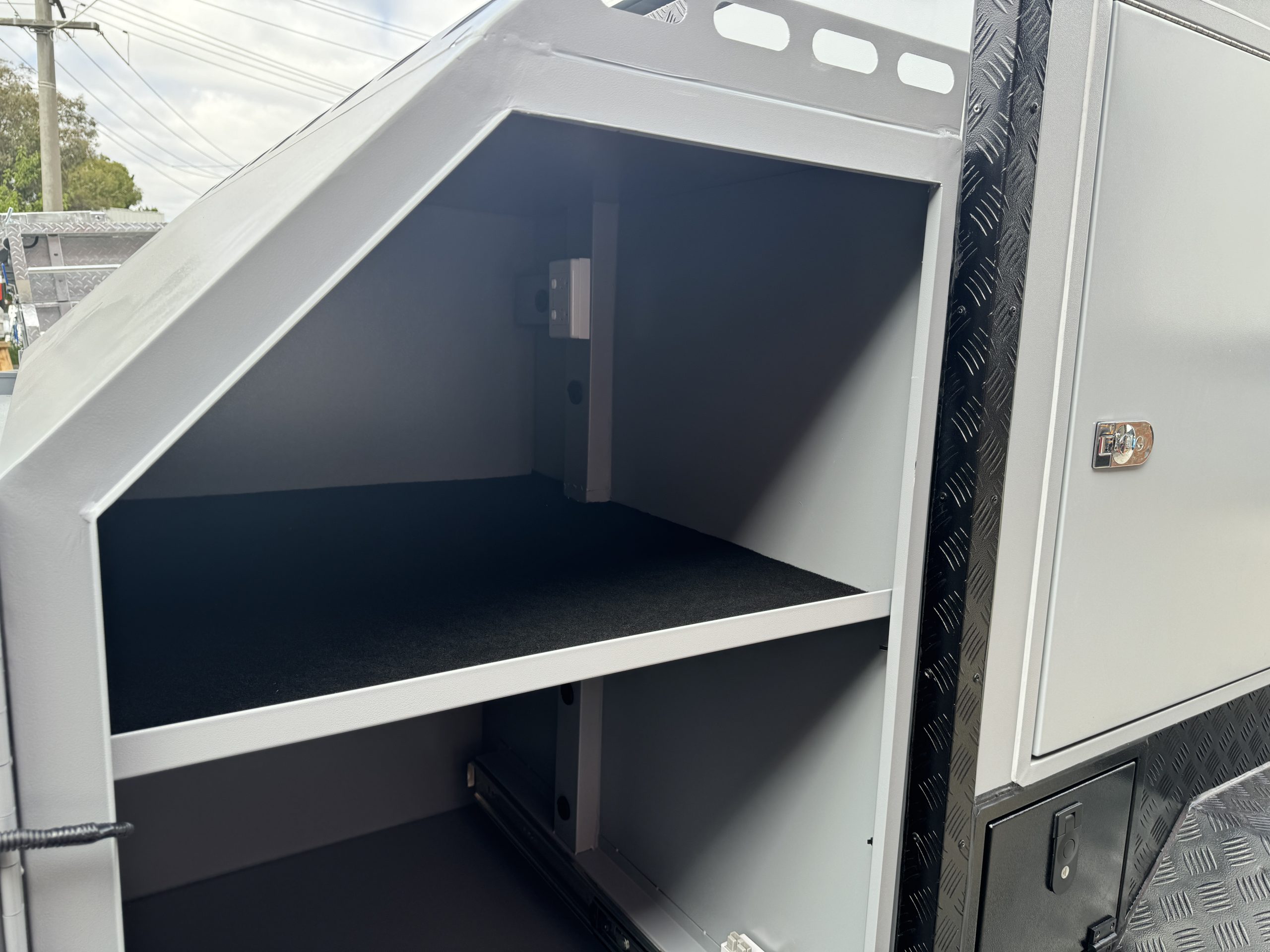

- Left side additional compartment above the slide-out storage – 670 (W) x 760 (L) x 380 (H)
- Main compartment area, right side – 1930 (W) x 810 (L) x 850 (H)
- Right side toolbox storage – 670 (W) x 550 (L) x 700 (H)
- Right side additional compartment above the toolbox storage – 670 (W) x 870 (L) x 340 (H)

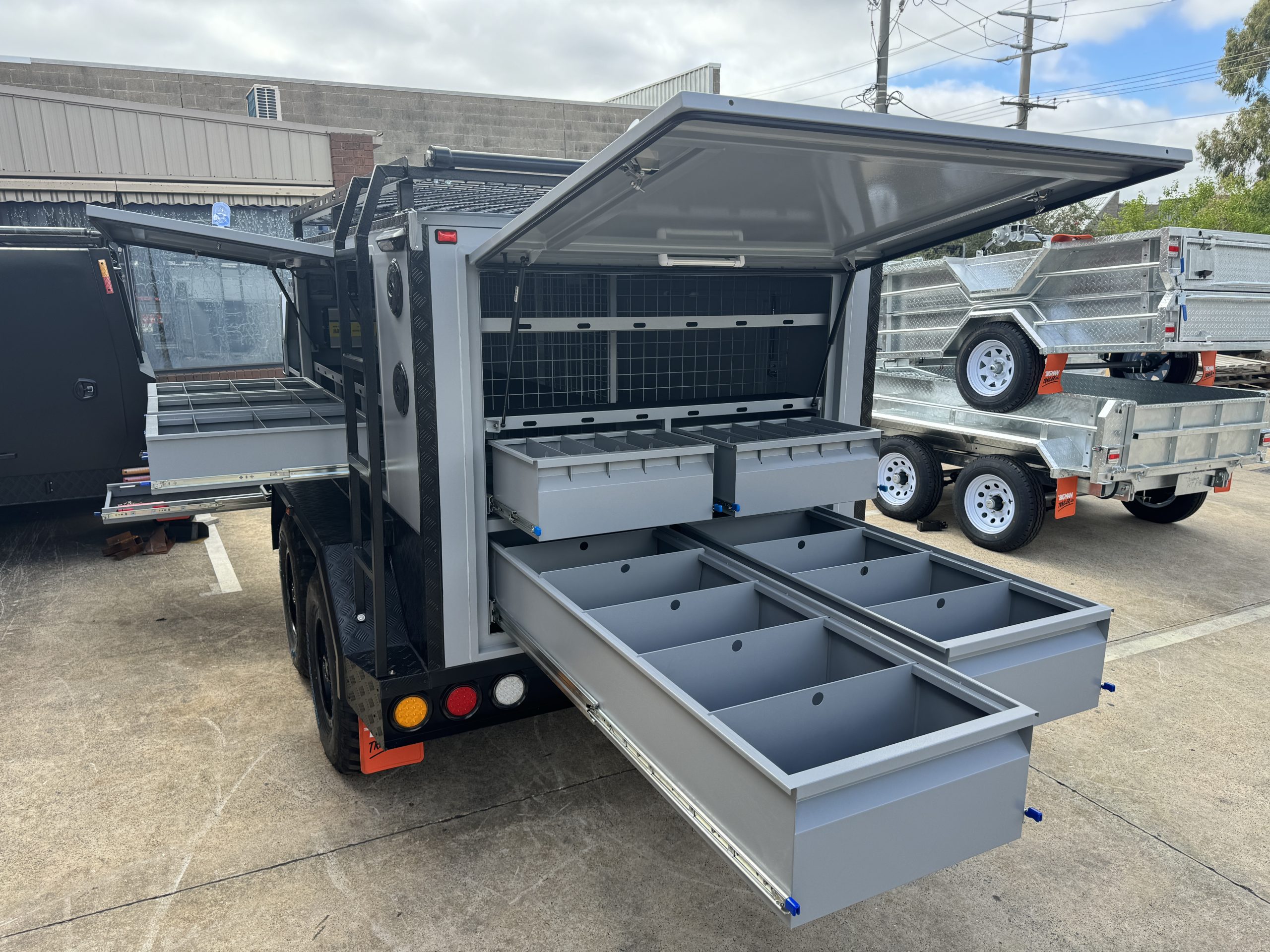

- 2 x shelves located at the rear – 1680 (W) x 400 (L) x 220 (H)
- 2 x pull-out drawers located at the rear middle – 570 (W) x 330 (L) x 210 (H)

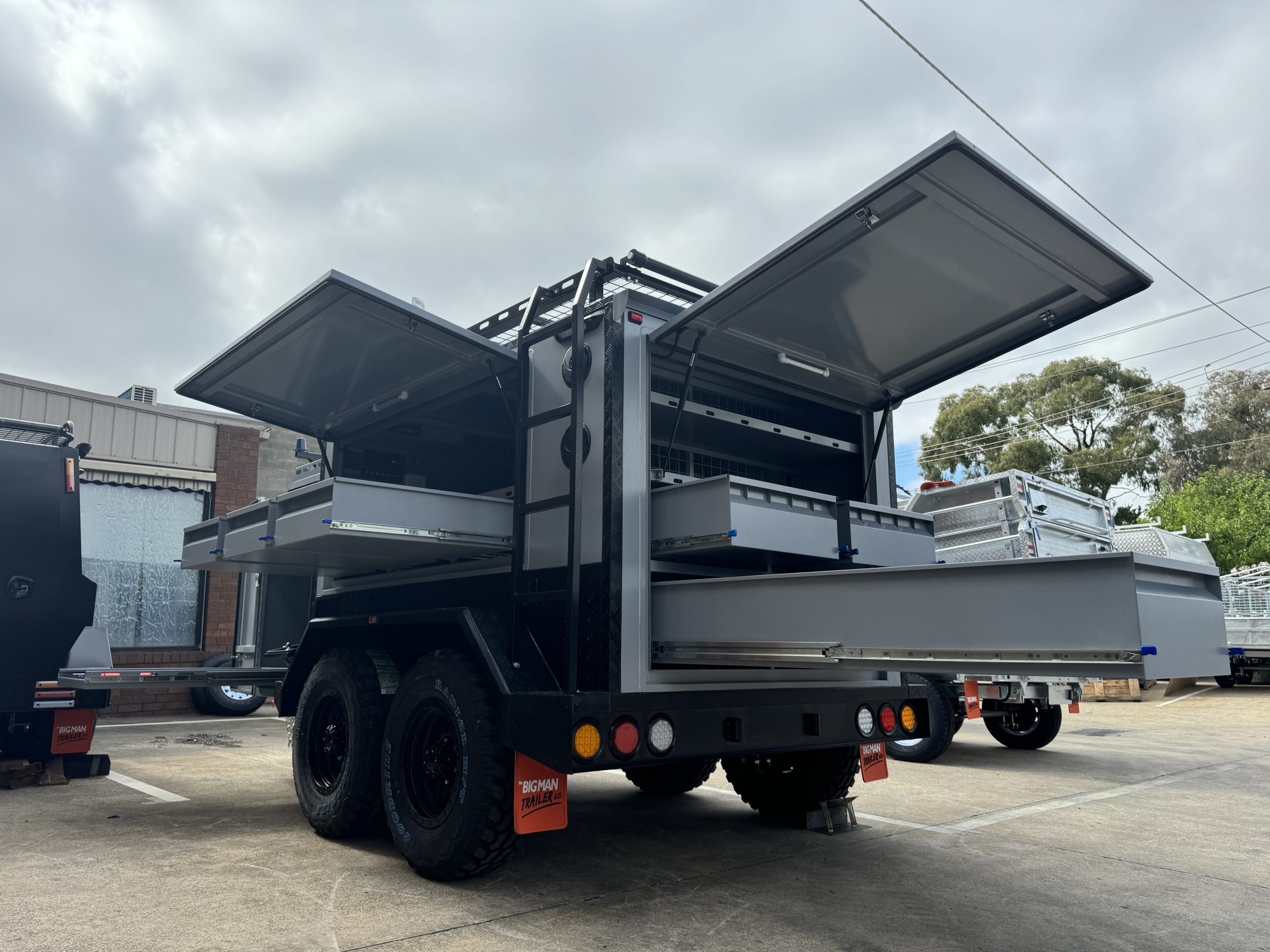

- 2 x pull-out drawers located at the rear bottom – left 570 (W) x 1900 (L) x 360 (H), right 570 (W) x 1240 (L) x 360 (H)
- Power outlets with 2 speaker radios
All dimensions in mm.
