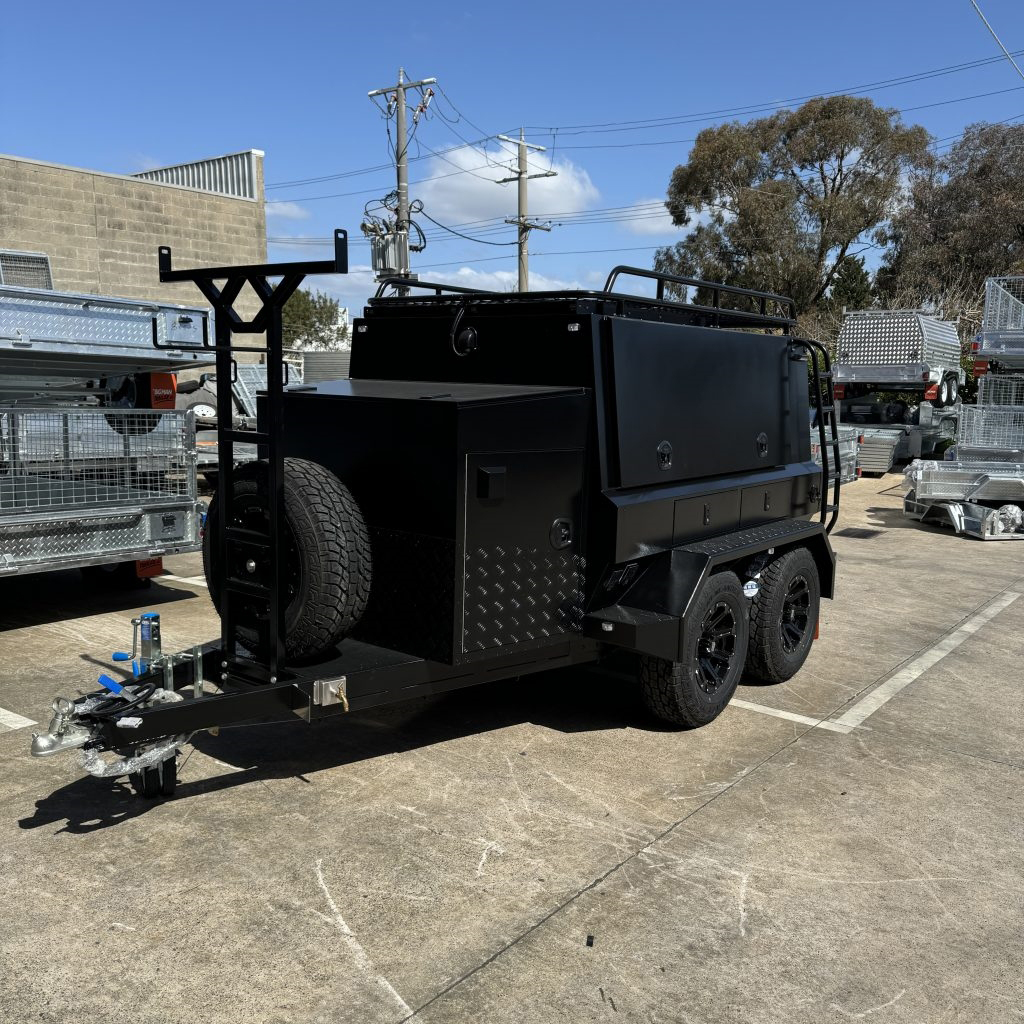

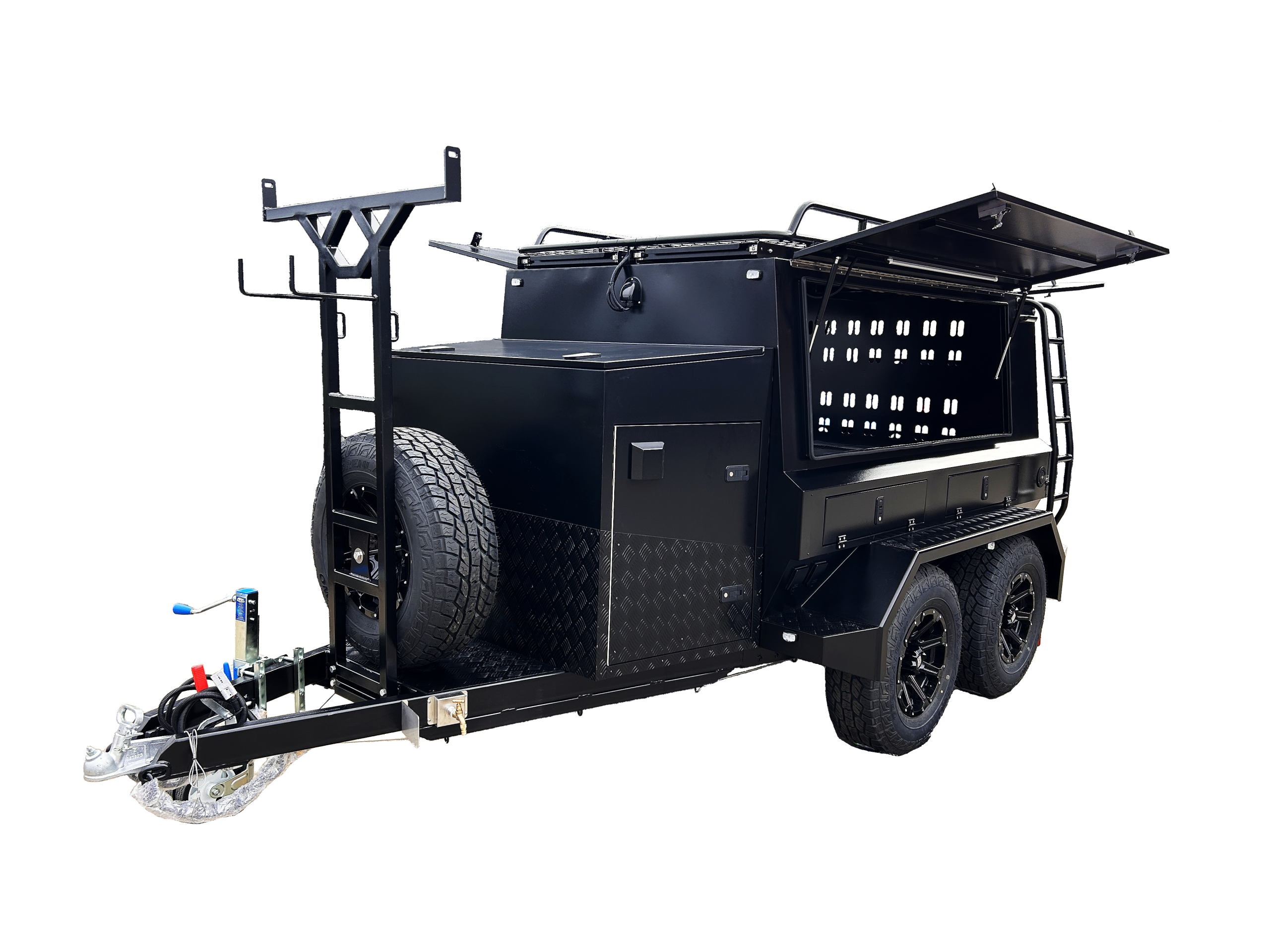

About the 8x5 Tandem Builders Trailer - Black
The 8x5 Tandem Builders Trailer in Black is a dual-axle tradesman trailer designed for durability and convenience – a full workshop, kitchen and store room that follows you to site. Model TT85BV1 has a tare of 1650KG and an aggregate trailer mass of 3500KG, so there is real payload left once your gear is on board.
Storage for the whole kit

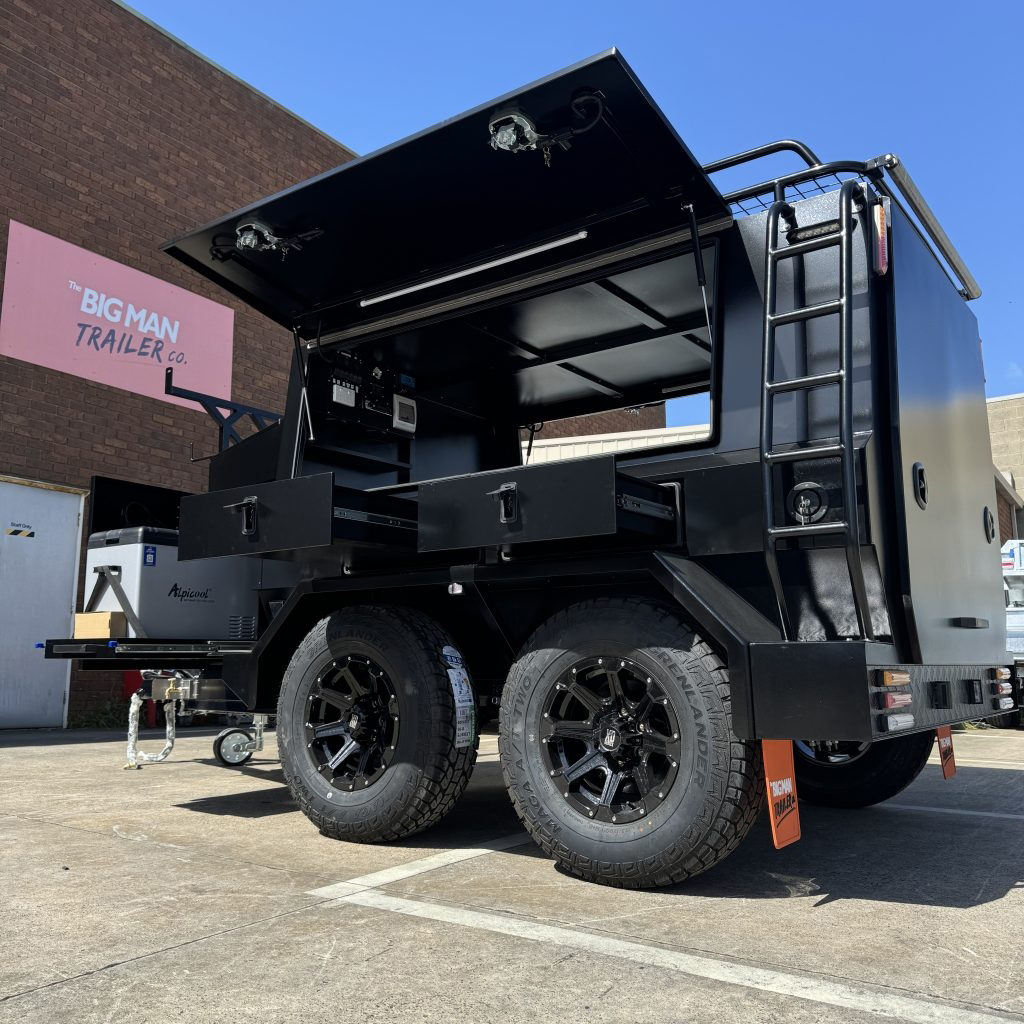

An array of storage solutions: main compartments on either side, smaller compartments underneath, and a fridge slide-out to keep drinks and lunch cold. Above the fridge there are additional compartments, with shelves at the rear and slide-out drawers, all with latches for secure storage.
Power and water on board
Fitted with dual batteries, Anderson plugs and external sockets so you can run tools and lights away from mains power, plus solar panel slide-outs to keep the system topped up. A 70L dual water tank with a water gauge means you can wash up, mix and clean down wherever you park.
Built to tow, built to last
Riding on rocker roller 9-leaf suspension with 265 75R16 inch tyres – double king tyres on Off-rise series GR wheels – and an 1800mm drawbar for a stable tow. A black ladder rack with a spare tyre sits at the front, the roof luggage carrier is powder-coated black, gas struts take the weight of every door, and a Central Locking System secures the lot in one turn. Matt black inside and out with black checker plate on all step-on areas.
Body Specs & Features
The TT85BV1 is built on a fully welded 3500KG ATM tandem chassis riding on rocker roller 9 leaf suspension with double king tyres on Off-rise series GR wheels, finished in matt black inside and out with black checker plate on every step-on area. On board you get a 2000W inverter running off 2 x 135Ah AGM deep cycle batteries with solar slide-outs, a 70L dual water tank with pump and gauge, a slide-out fridge, front and rear ladder racks, a powder-coated roof luggage carrier, gas struts on every door and a Central Locking System.
| Model | TT85BV1 |
| Overall Size | 4800mm (L) x 2100mm (W) x 2190mm (H) |
| Tare | 1650KG |
| ATM | 3500KG |
| Axle Group Loading | 3500KG |
| Suspension | Rocker roller 9 leaf |
| Tyre Size | 265 75R16 Inch |
| Wheels & Tyres | Double king tyres with Off-rise series GR wheels |
| Cold Tyre Pressure | 275kPa |

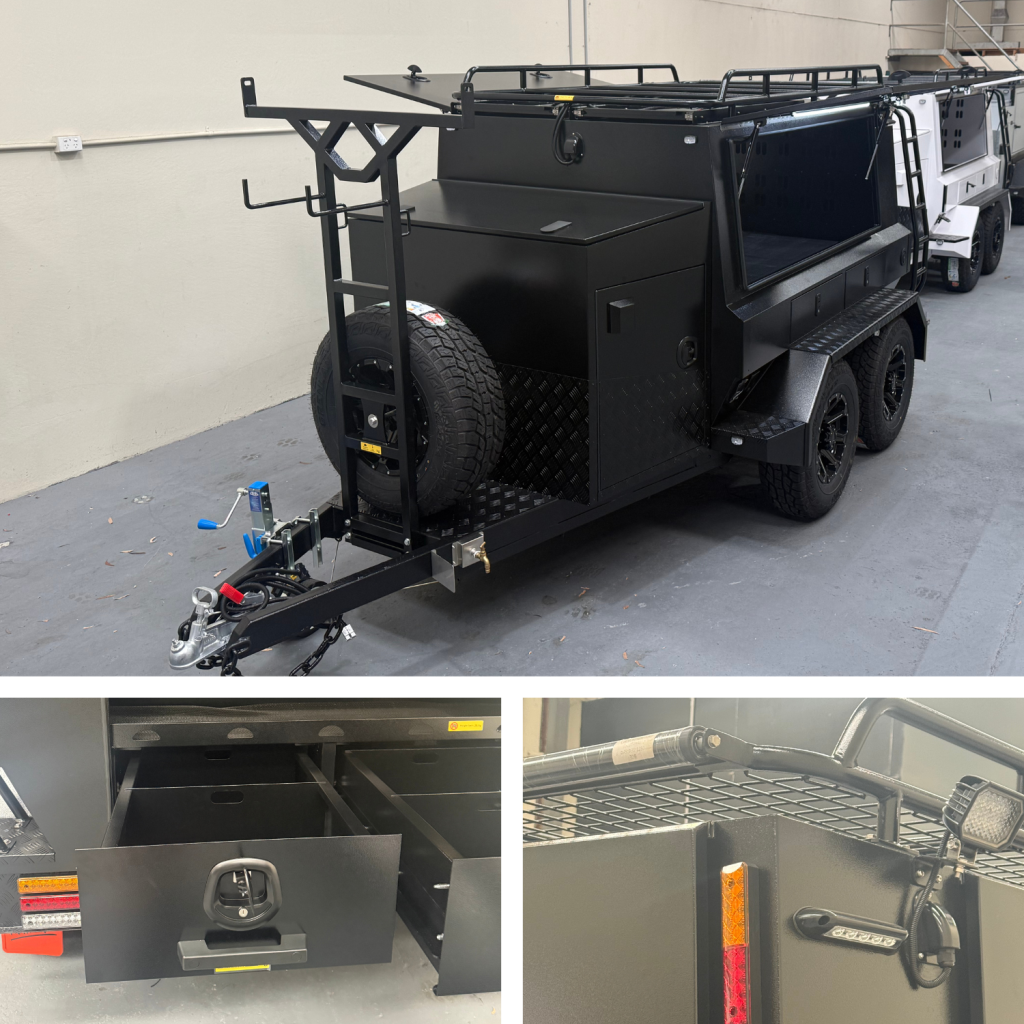

| Drawbar | 1800mm long, 50 x 100 |
| Jockey Wheel | ARK XO500 – free upgrade |
| External Finish | Matt Black |
| Internal Finish | Matt Black |
| Step-On Areas | Black checker plate finish |
| Lighting | Brake, parker, reverse and number plate lights with a black checker plate finish |
| Inverter | 2000W, located within the main compartment |
| Batteries | 2 x 135Ah AGM Deep Cycle |
| Solar | 2 x solar panel slide-outs located underneath the roof cage |
| Power Outlets | Anderson plugs, external sockets and a power button in the fridge compartment |
| Audio | Power outlets with 2 speaker radios |
| Water Tank | 70L dual water tank found underneath |
| Water Pump | Fitted |

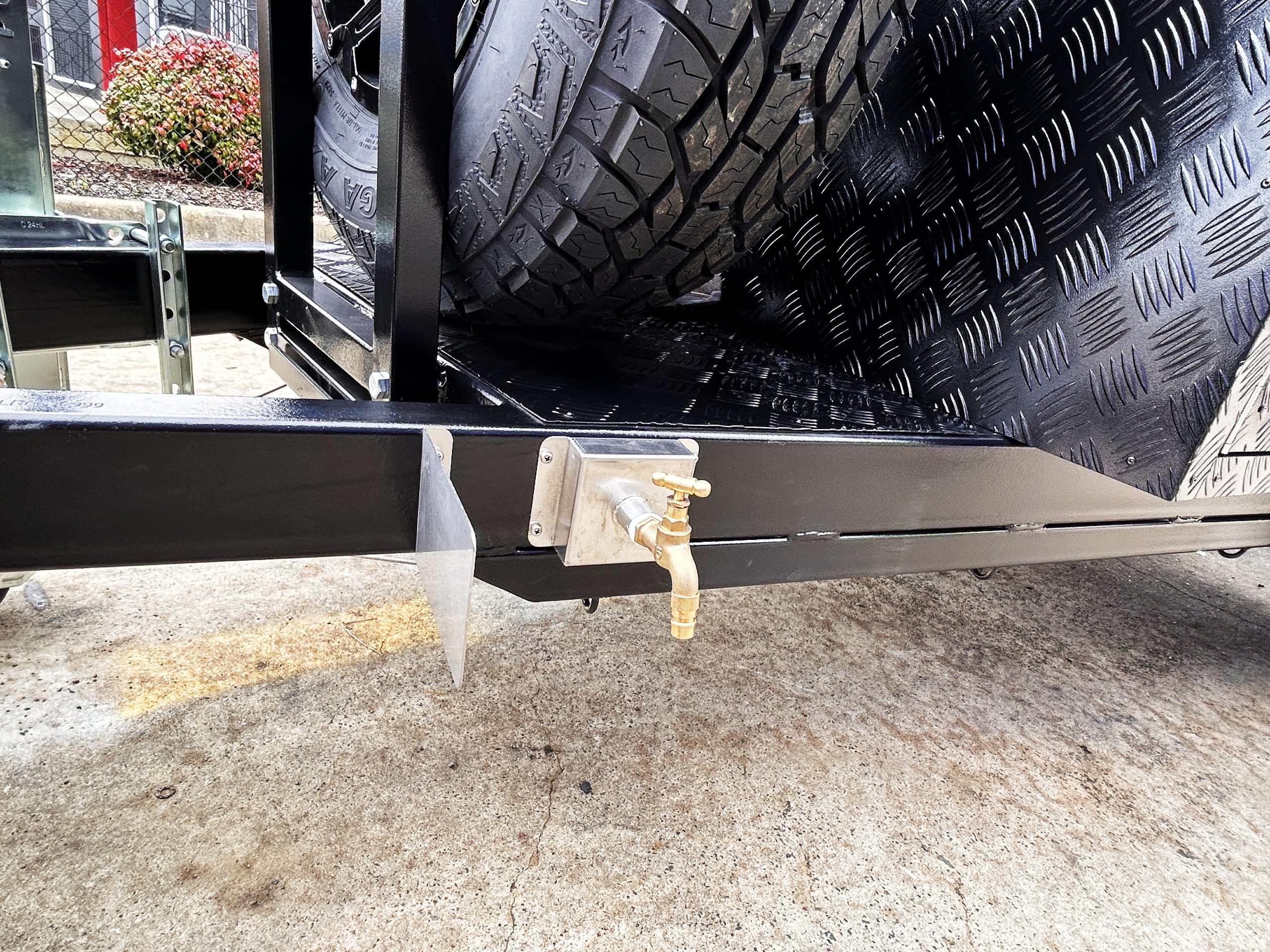

| Water Plumbing | Hoses run inside the chassis on the left-hand side, with a tap you can open |
| Water Gauge | Level indicator found within the compartment |
| Fridge | Slide-out fridge with fan |

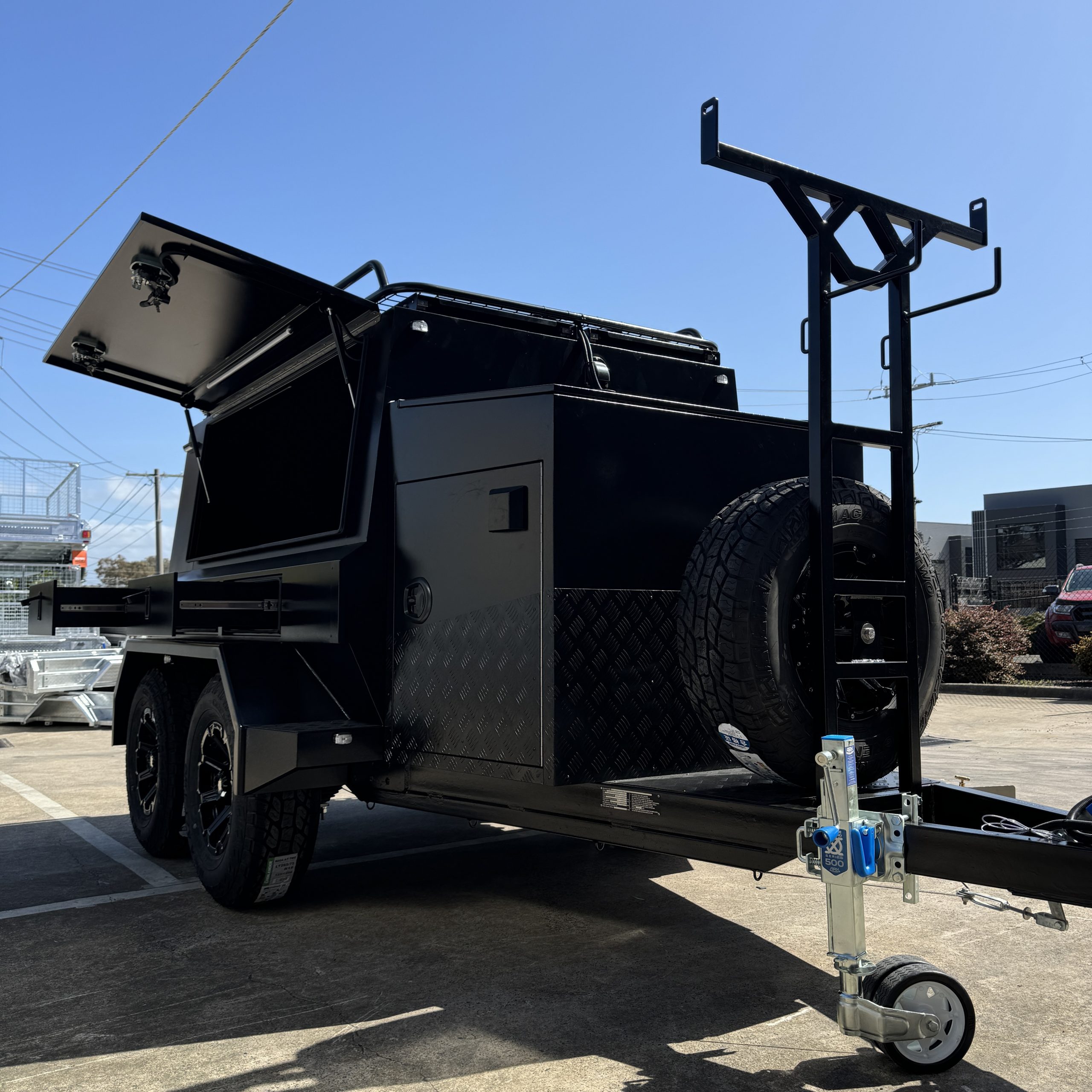

| Front Ladder Rack | Black ladder rack with a spare tyre |
| Rear Ladder Rack | 1300mm height |
| Roof Luggage Carrier | Powder coated black, included |
| Locking | Compression press-release locks with Central Locking System |
| Doors | Gas struts fitted to all doors |
Trailer Finance Options Available!
Storage Features

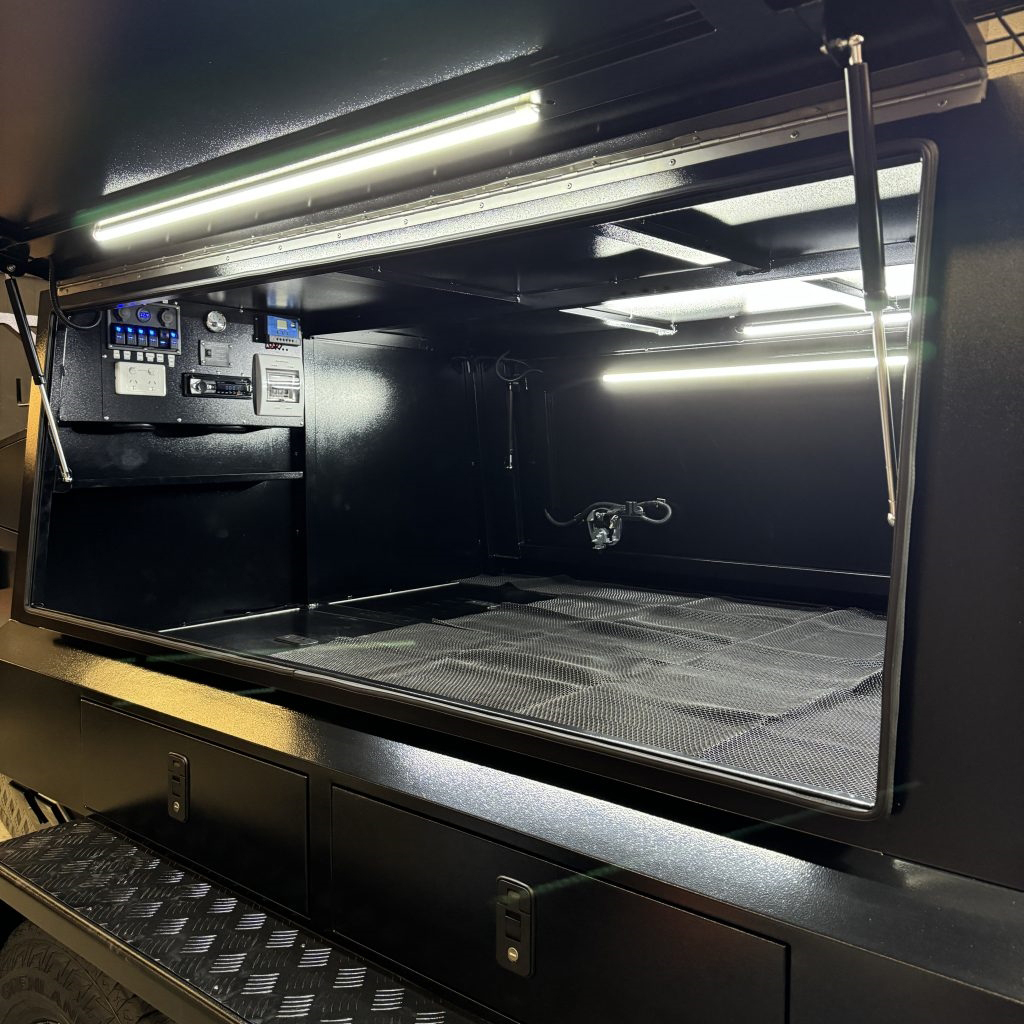

- Main compartment area on either side – 1700 (W) x 1950 (L) x 820 (D)
- 2 x smaller compartments underneath the main compartment area on the left – 450 (W) x 450 (L) x 450 (H) each
- Fridge slide-out – 50 Litres, with fan
- Additional compartment above the fridge – 1100 (W) x 600 (L) x 200 (D)
- 2 x shelves located at the rear – bottom shelves 1800 (W) x 450 (L) x 420 (H), top shelf 1500 (W) x 390 (L) x 380 (H)

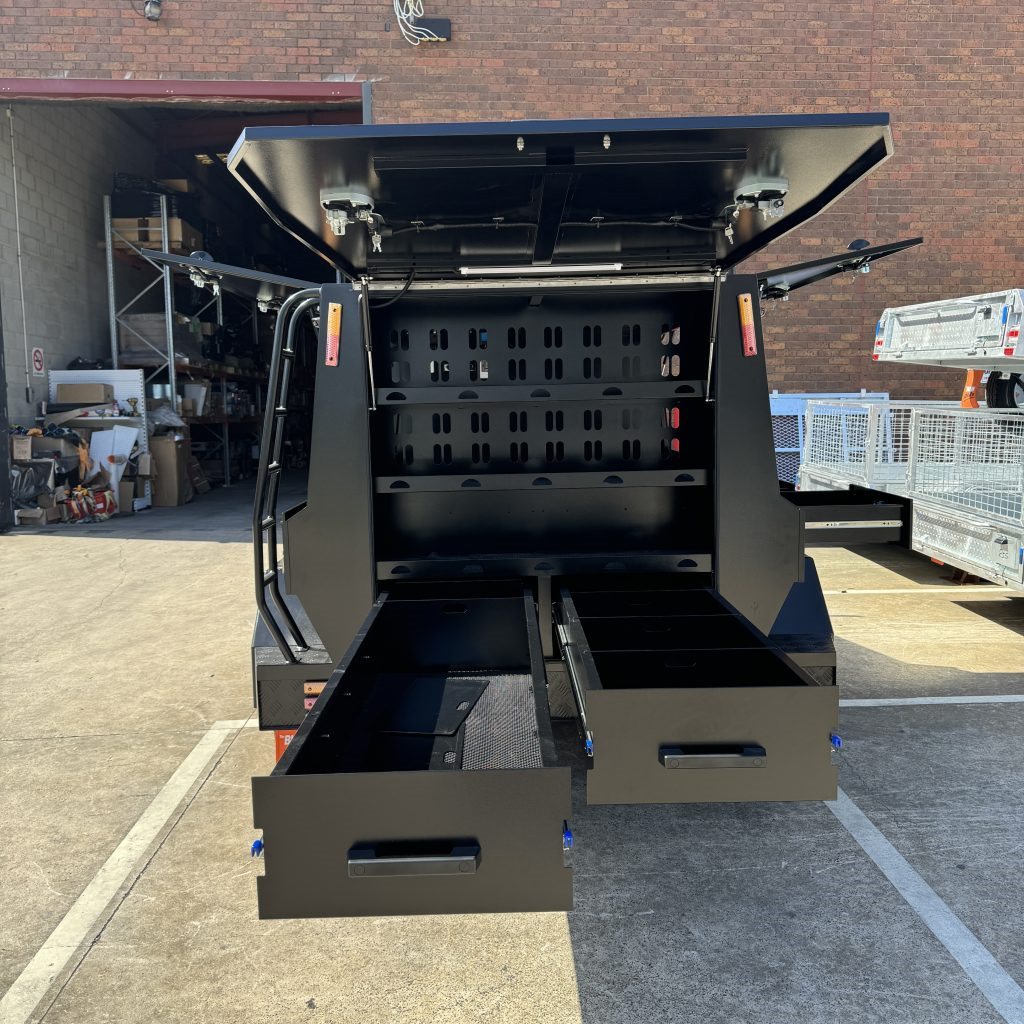

- 3 x slide-out pull-out drawers located at the rear – 500 (W) x 1800 (L) x 400 (H), with latches on the side to open and close
- Additional storage compartment, right side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Additional storage compartment, left side – longest point 450 (L) x 700 (W) x 200 (H), lowest point 340 (L) x 700 (W) x 200 (H)
- Internal fans located in front of the wheel holder, behind the fridge
All dimensions in mm.
