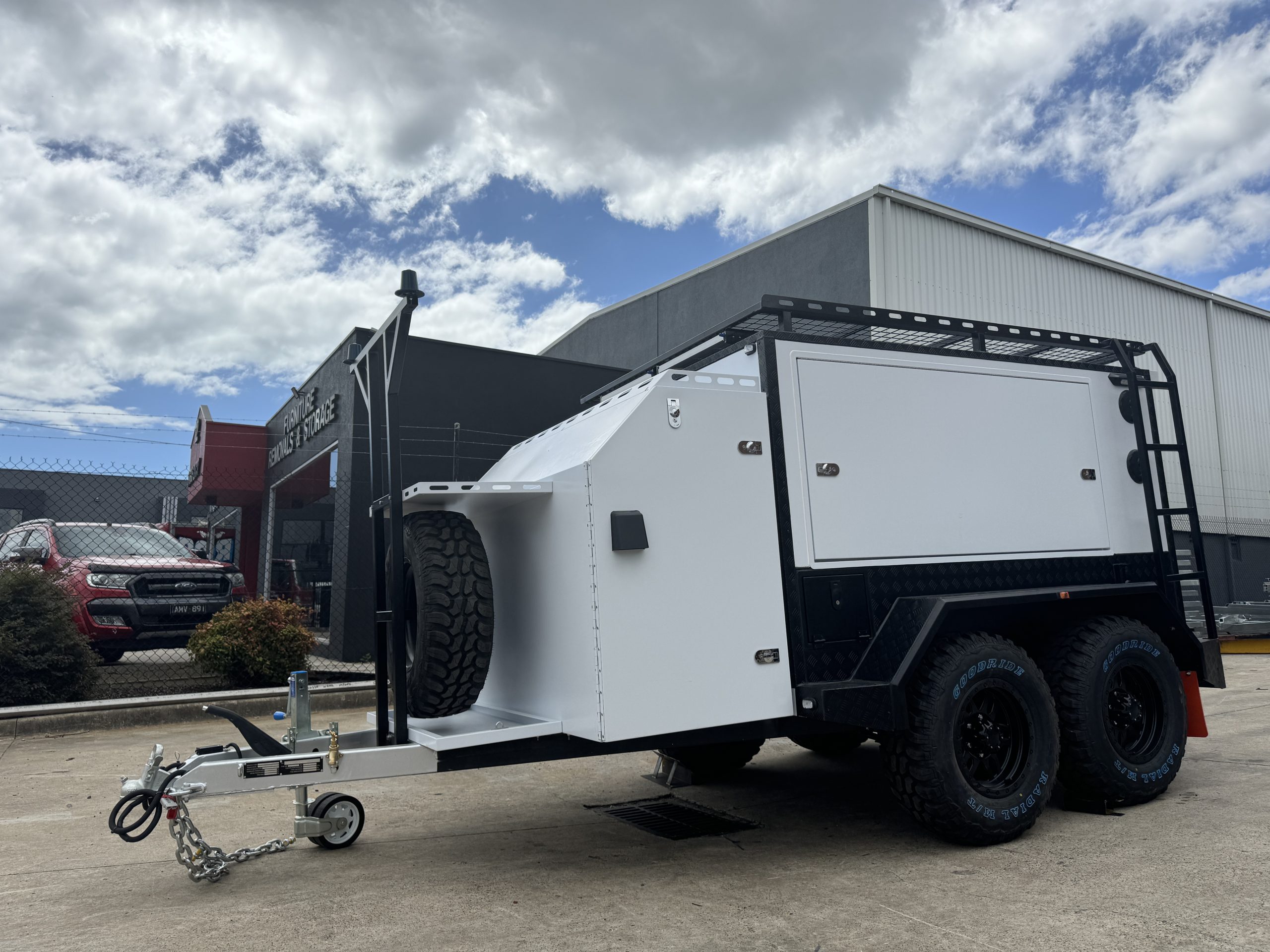

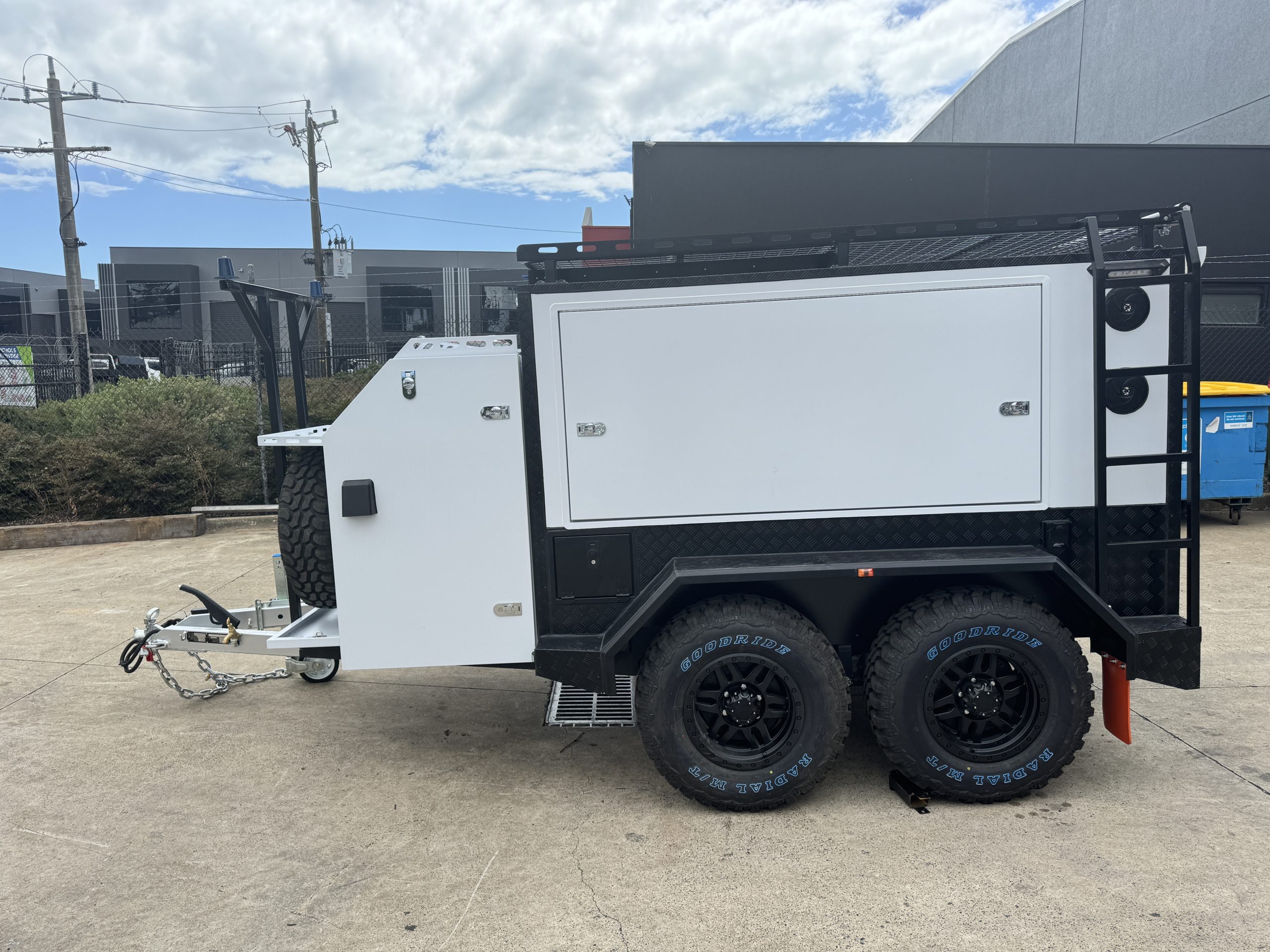

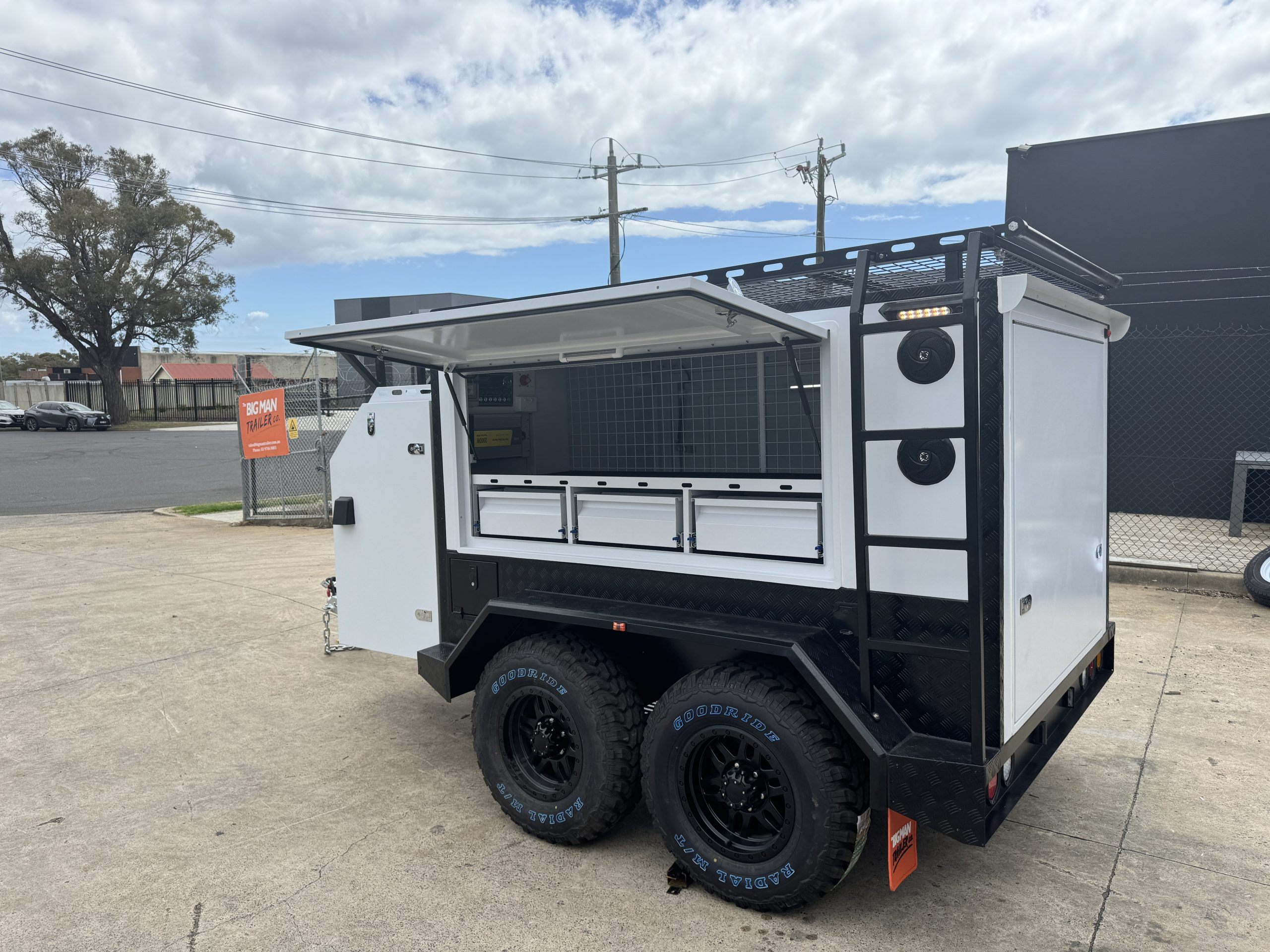

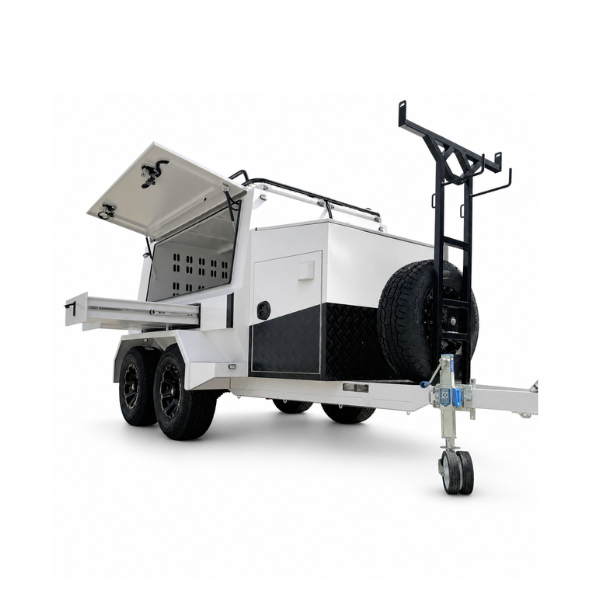

About the 8x5 Carpentry Trailer - Matte White
Tailored for the professional builder or tradesperson, the 8x5 Carpentry Trailer in Matte White merges style with substance. Model TT85RW has a tare weight of 1720kg and a maximum load capacity of 3500kg, built on a one-piece galvanised steel chassis.
Storage built around the job

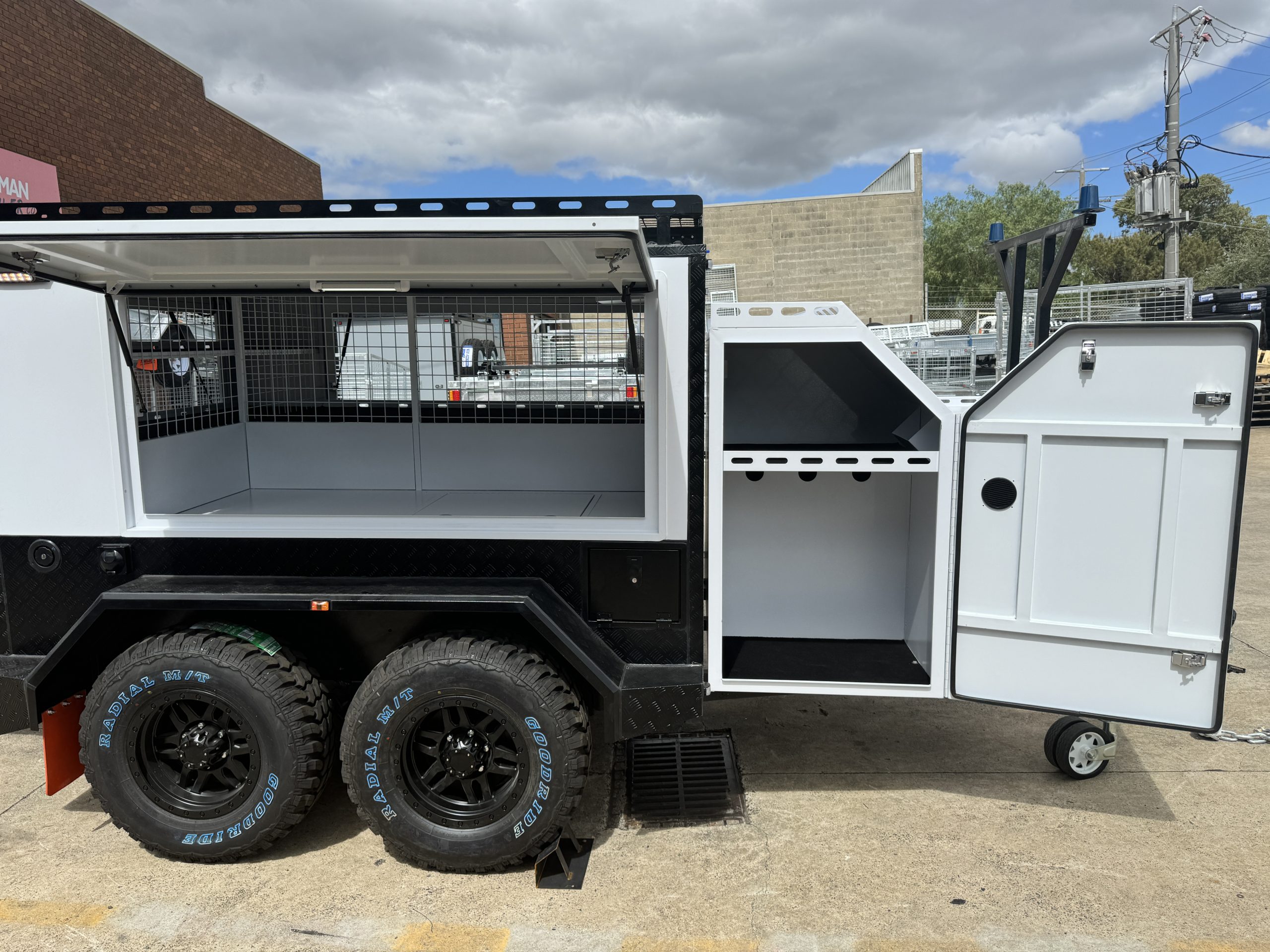

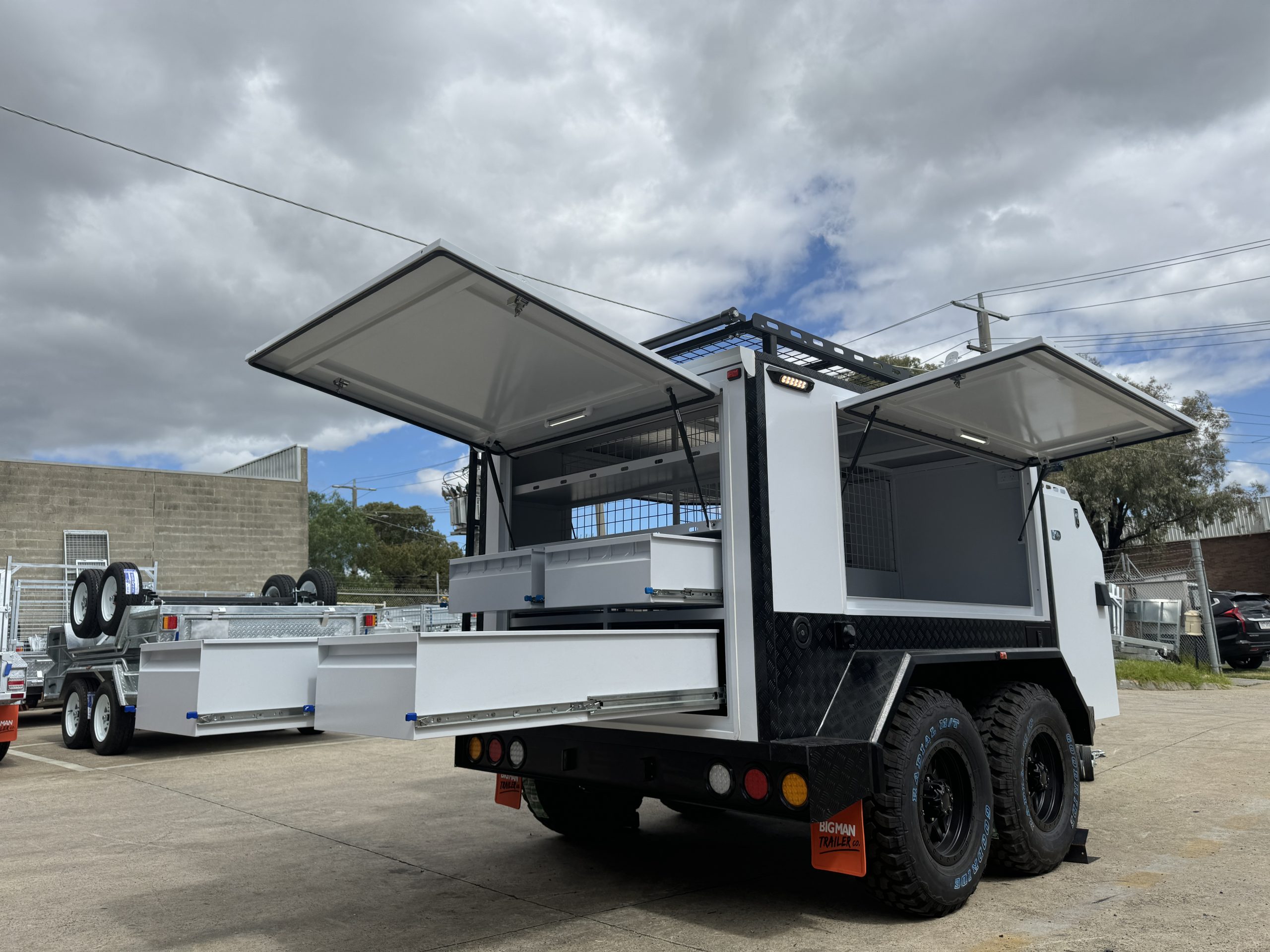

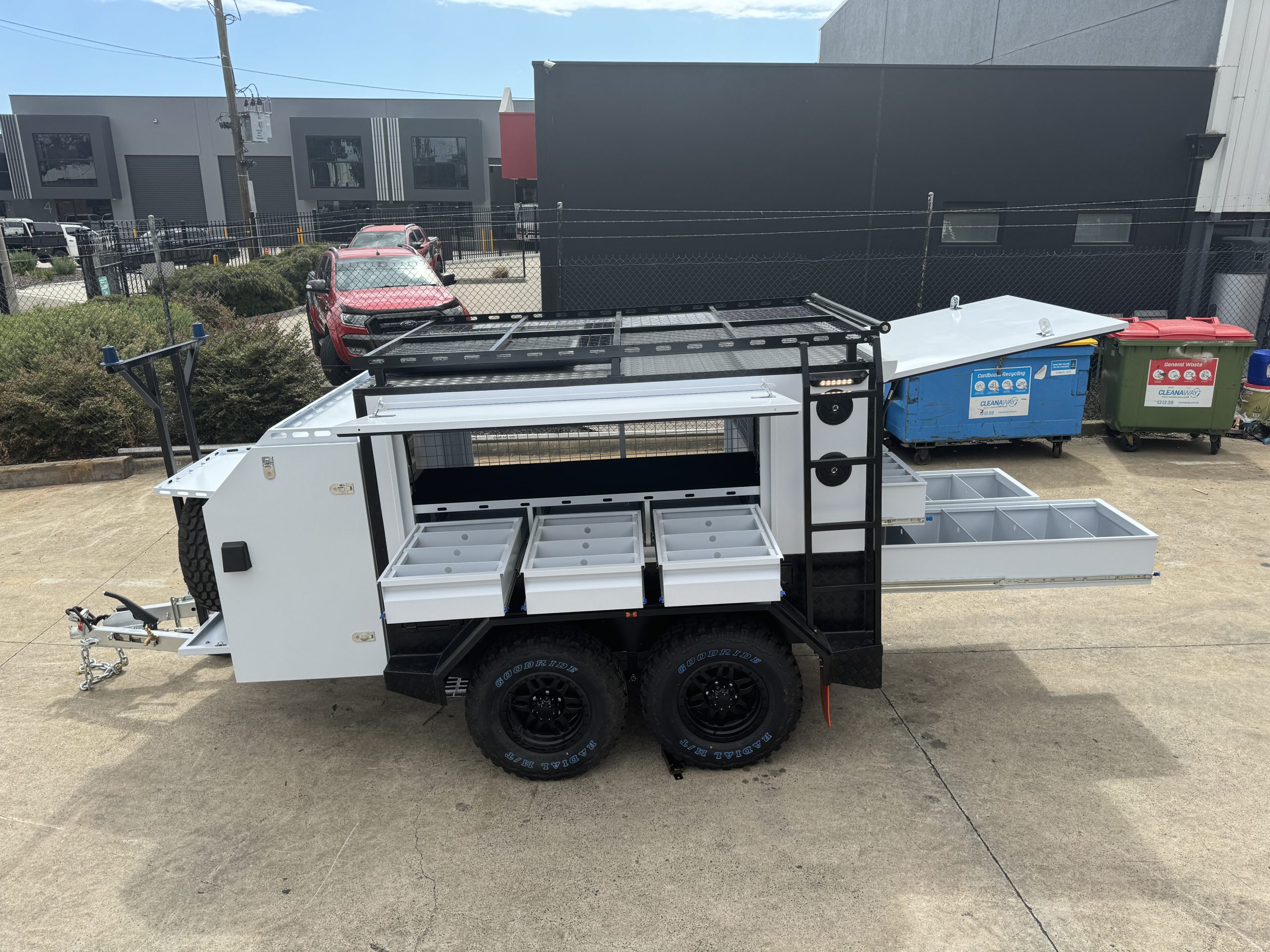

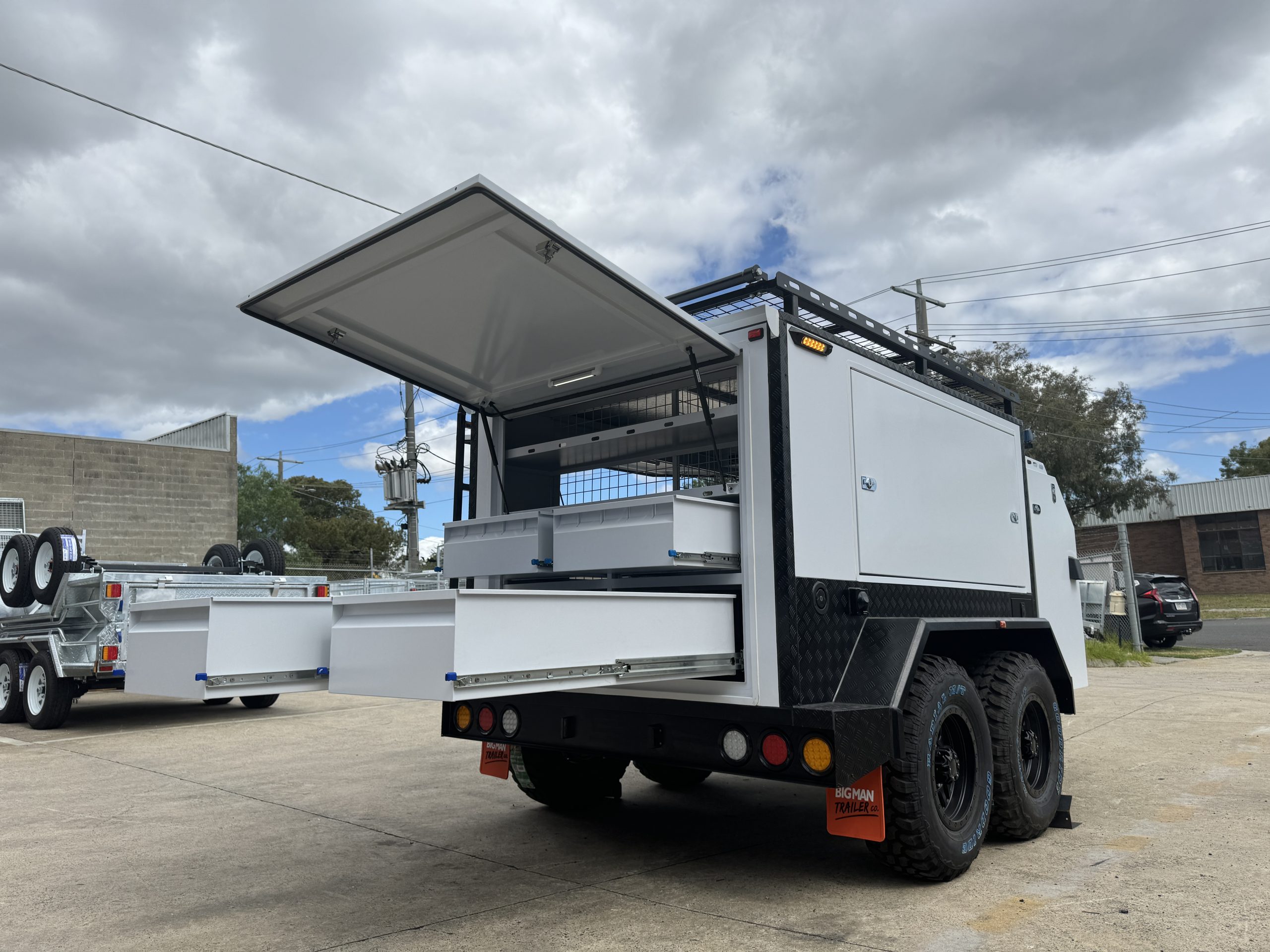

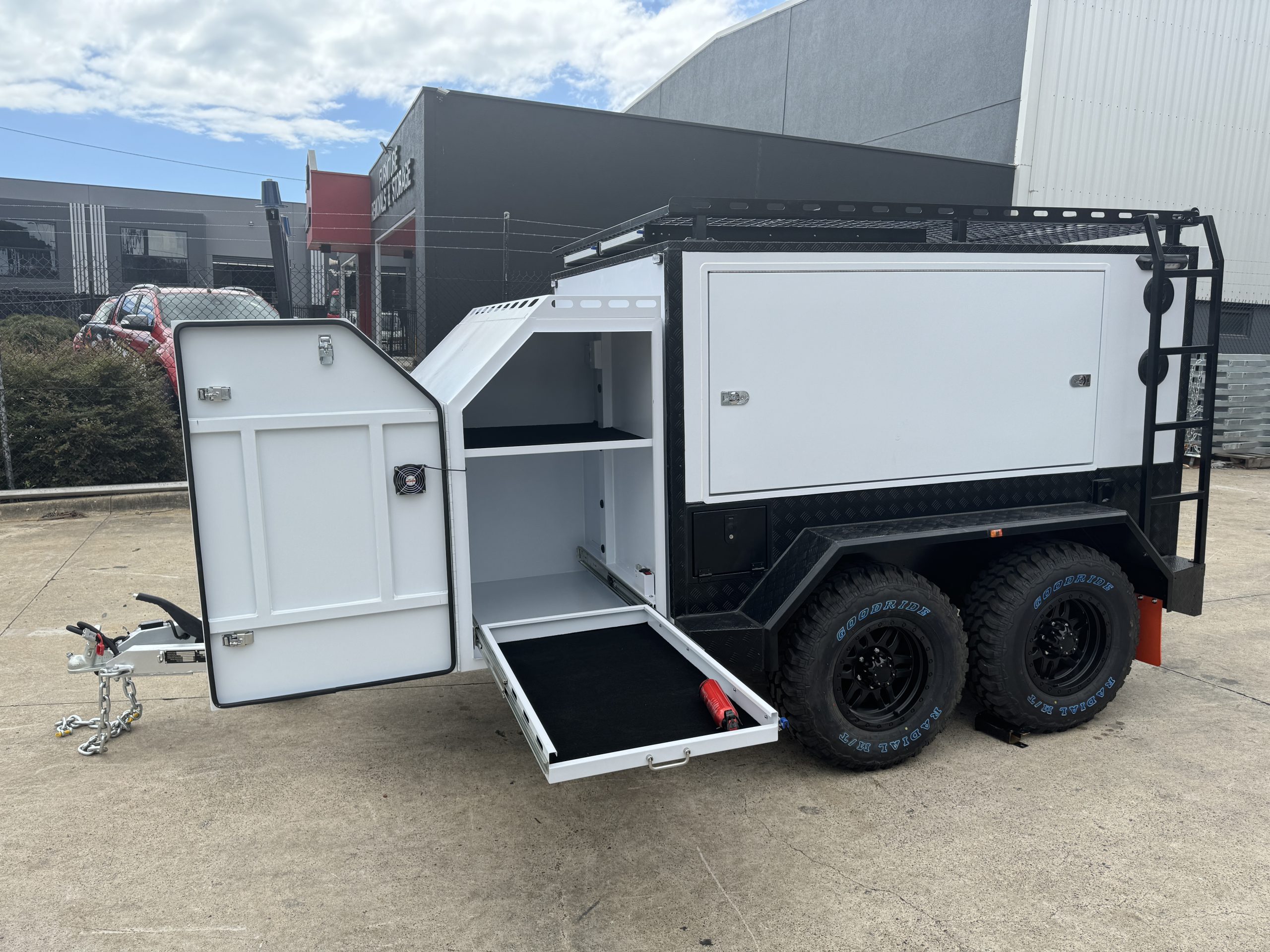

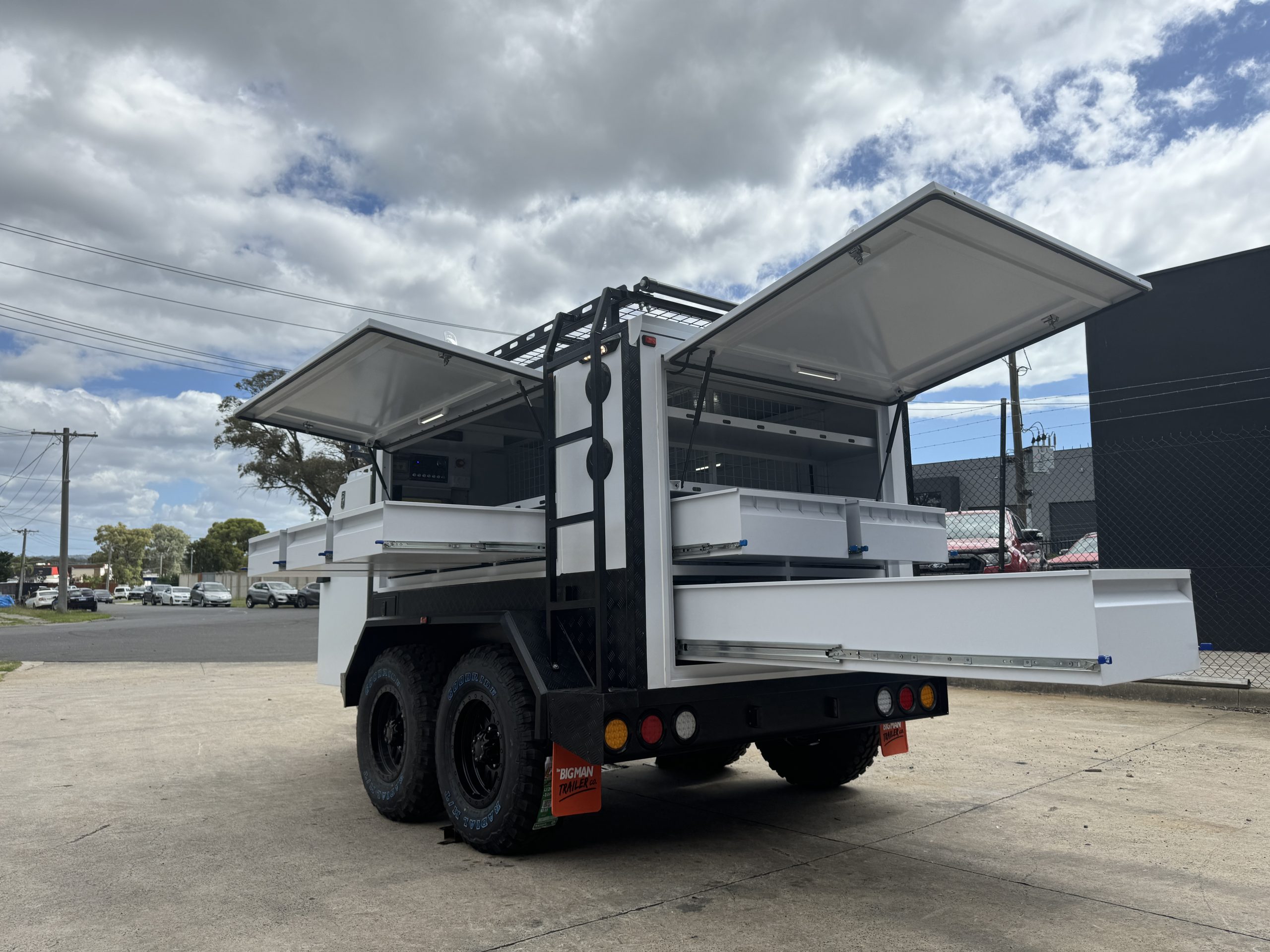

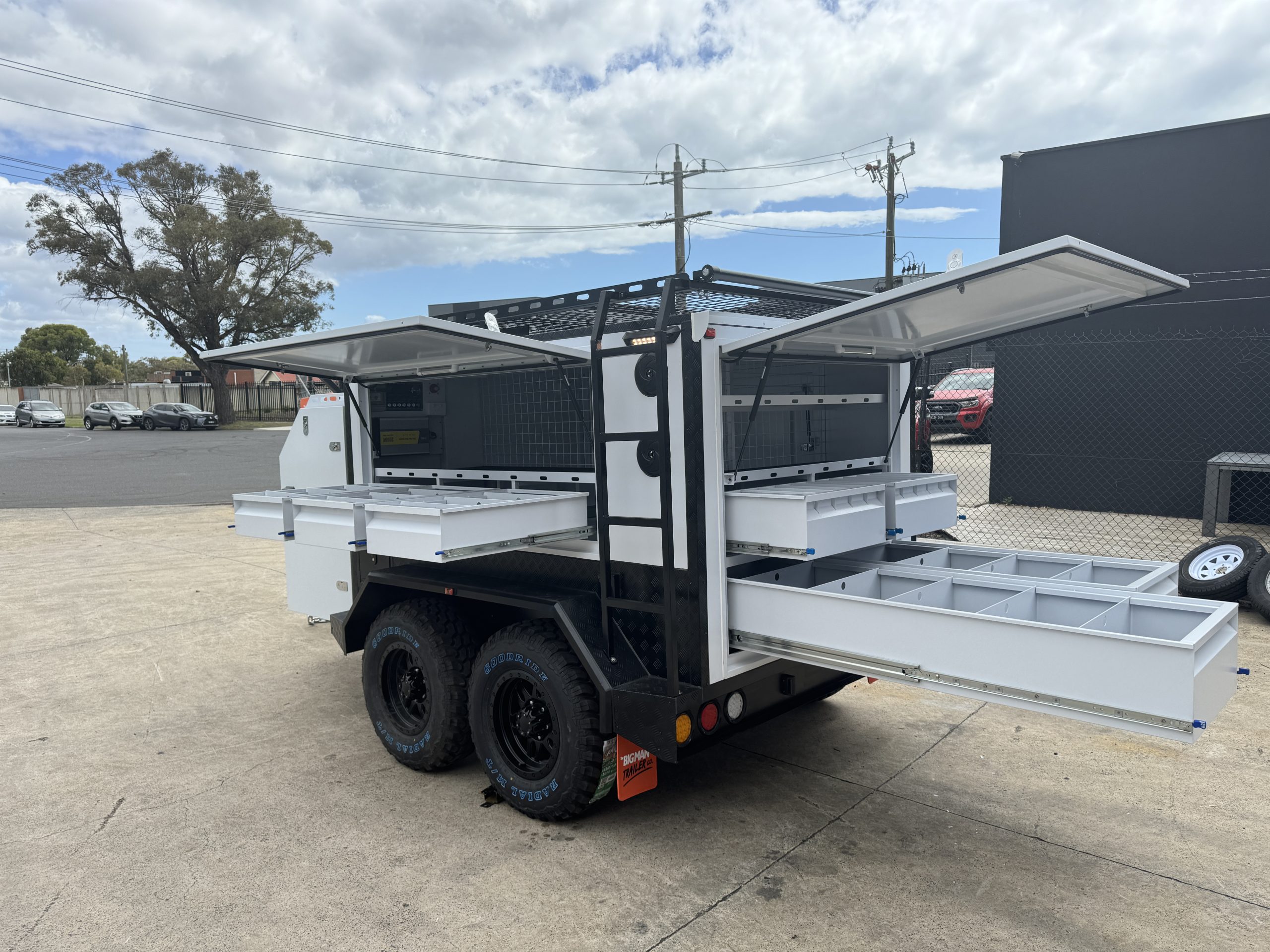

An extensive storage system with large compartments on each side, under-compartment storage and rear slide-out drawers, so all your tools and materials stay organised and easily accessible.
Power and water on board
Practicality is enhanced by dual batteries, Anderson plugs and external sockets, plus solar panel slide-outs to keep the system charged on site. A 70L water tank with a water gauge covers wash-up and clean-down wherever you park.
Built to tow, built to last

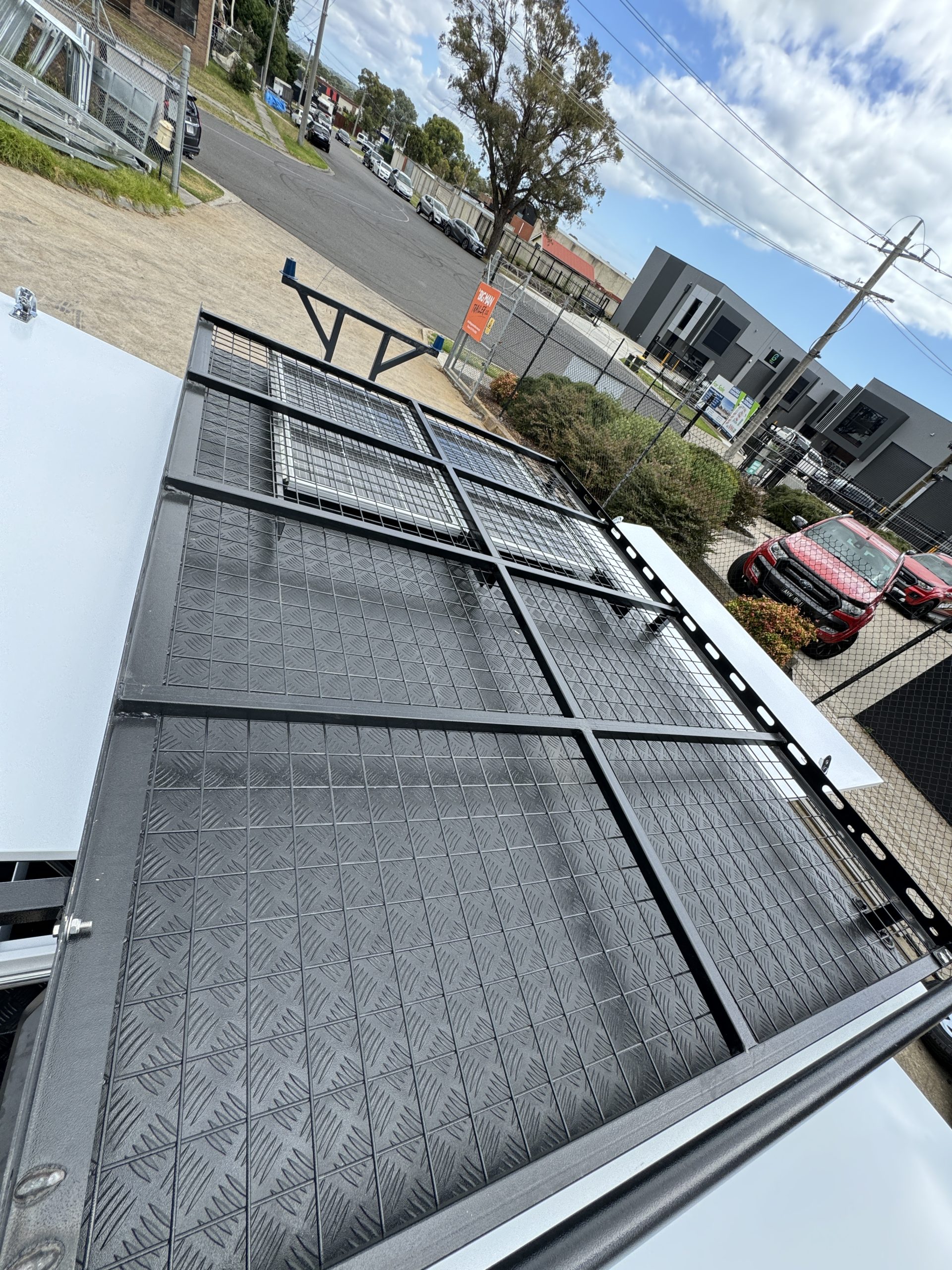

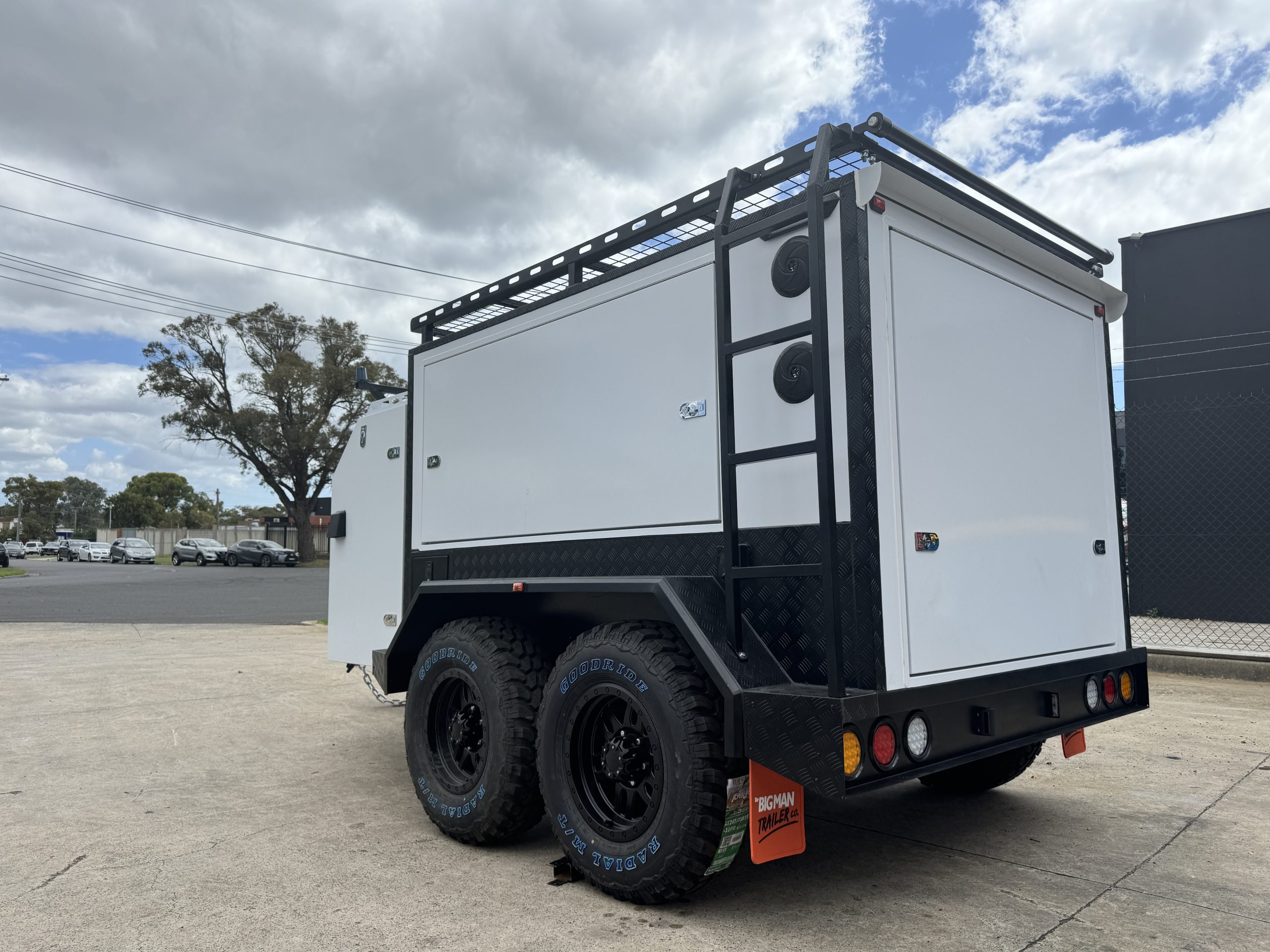

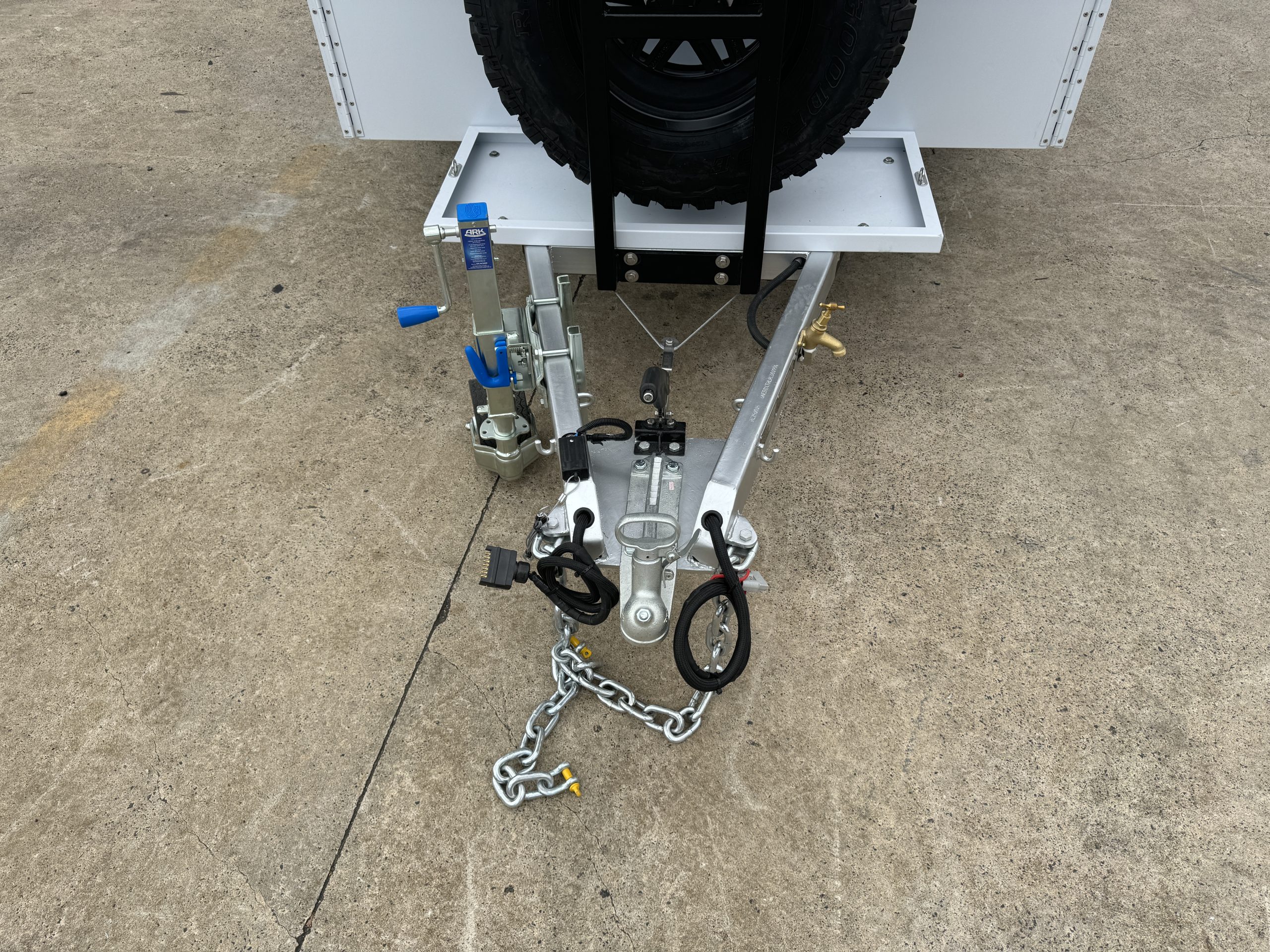

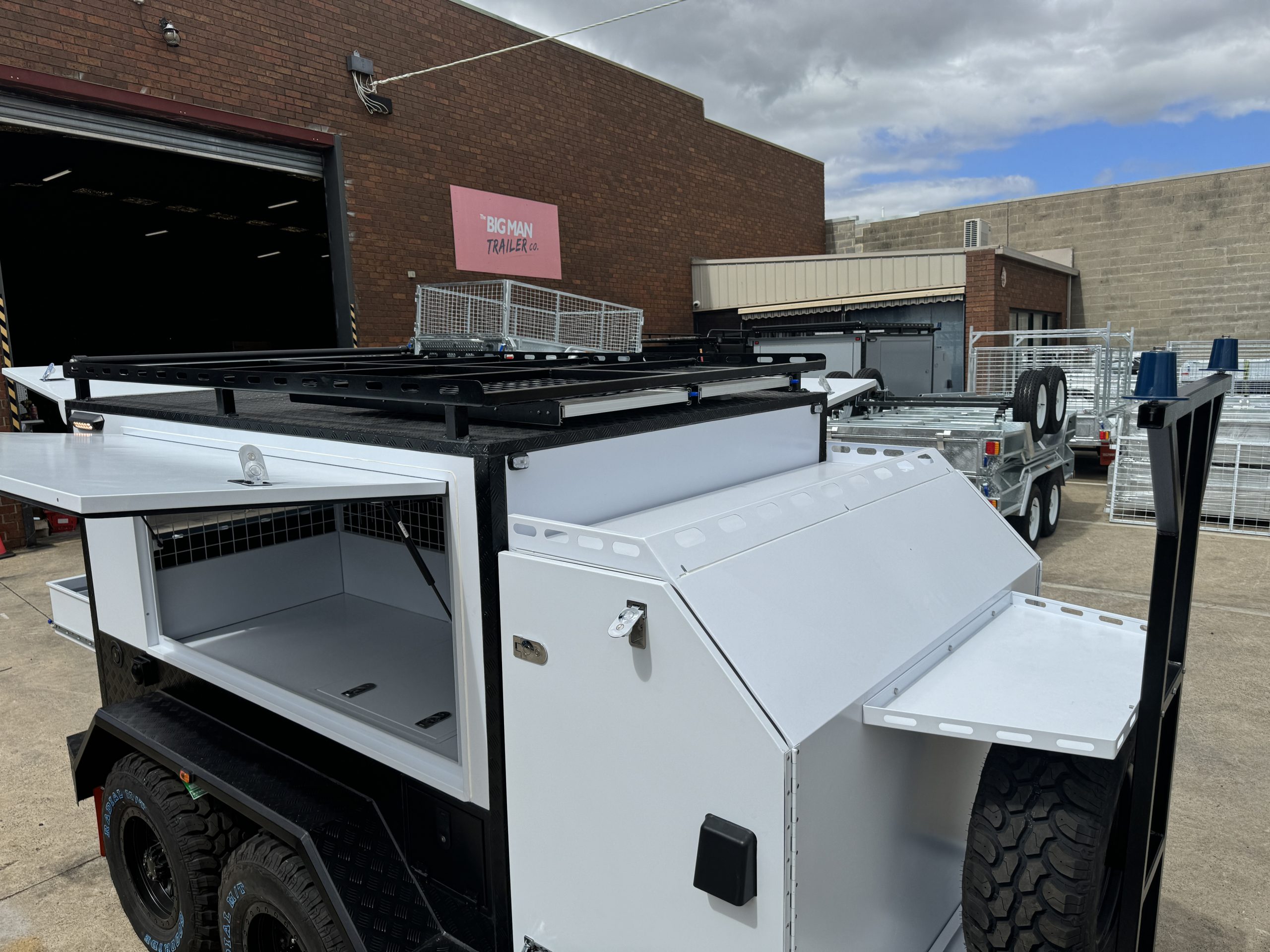

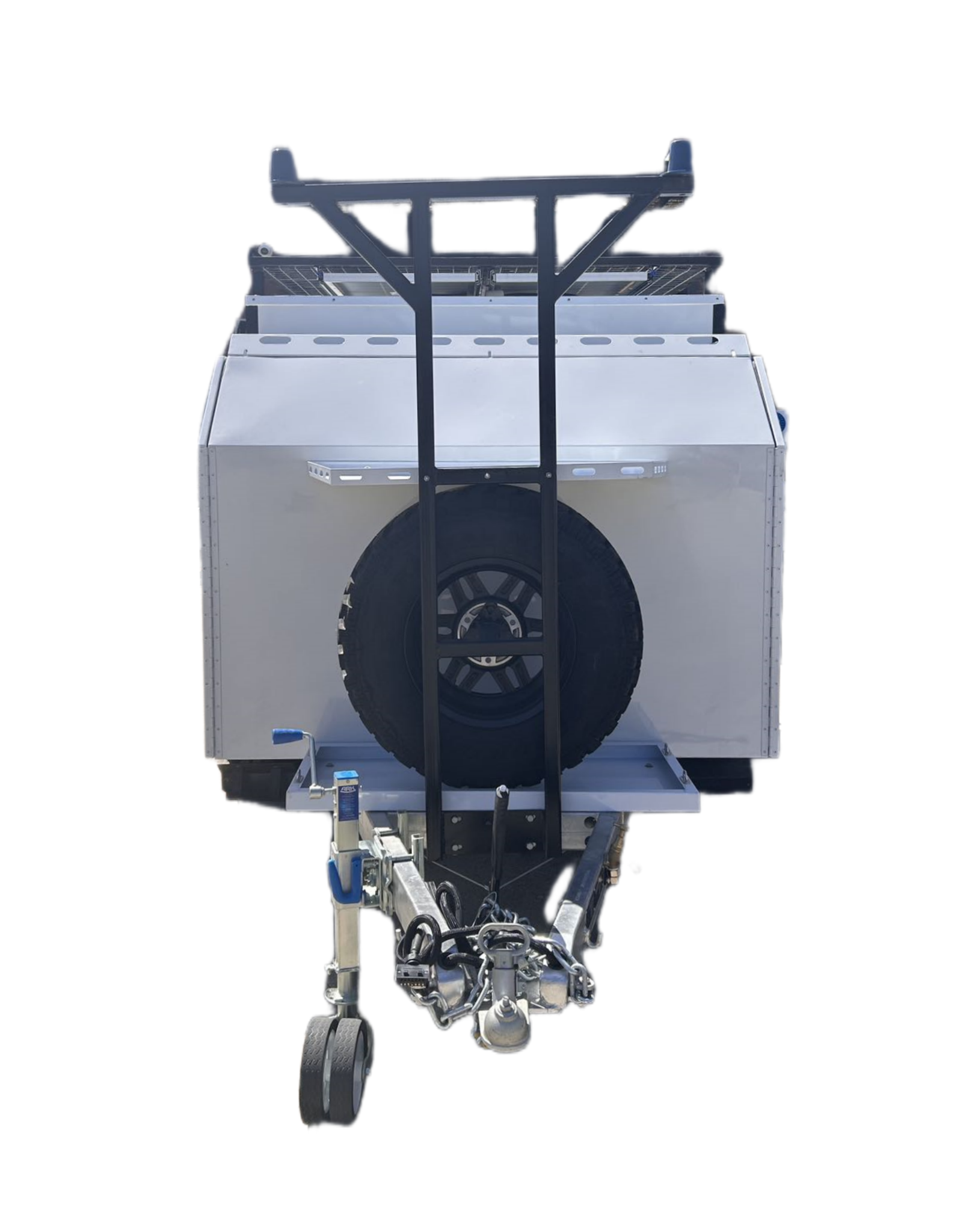

Standing on 265 75R16 inch tyres with a sturdy 1800mm drawbar and rocker roller 8-leaf suspension. Safety and security come from a black ladder rack with spare tyre, compression locks on all doors and a Central Locking System, while the sleek black checker plate finish on step-on areas affirms its status as a premier choice for carpentry professionals.
Body Specs & Features
The TT85RW is built on a one-piece galvanised steel chassis with 70mm solid axles, 8-leaf rocker roller suspension and 12-inch electric drum brakes all around. On board you get a 2000W pure sine wave smart inverter running off 2 x 100Ah batteries with slide-out solar panels, a 70L water tank on a 12V pump, LED lighting inside and out, 1900mm rear trundle drawers and roof access via a built-in heavy-duty ladder.
| Model | TT85RW |
| Overall Size | 4800mm (L) x 2100mm (W) x 2170mm (H) |
| Trailer Dimensions | 8 x 5 Dual Solid Axle Model |
| Tare Mass | 1720kg |
| ATM | 3500kg |
| Chassis | One-piece design, made from galvanised steel |
| Axles | 70mm solid axles |
| Suspension | 8-leaf Rocker Roller |
| Brakes | 12-inch electric drum brakes all around |
| Wheels & Tyres | 265/75R16 LT tyres on black alloy wheels, fitted to Landcruiser 6 bolt hubs |
| Tow Ball | 50mm |

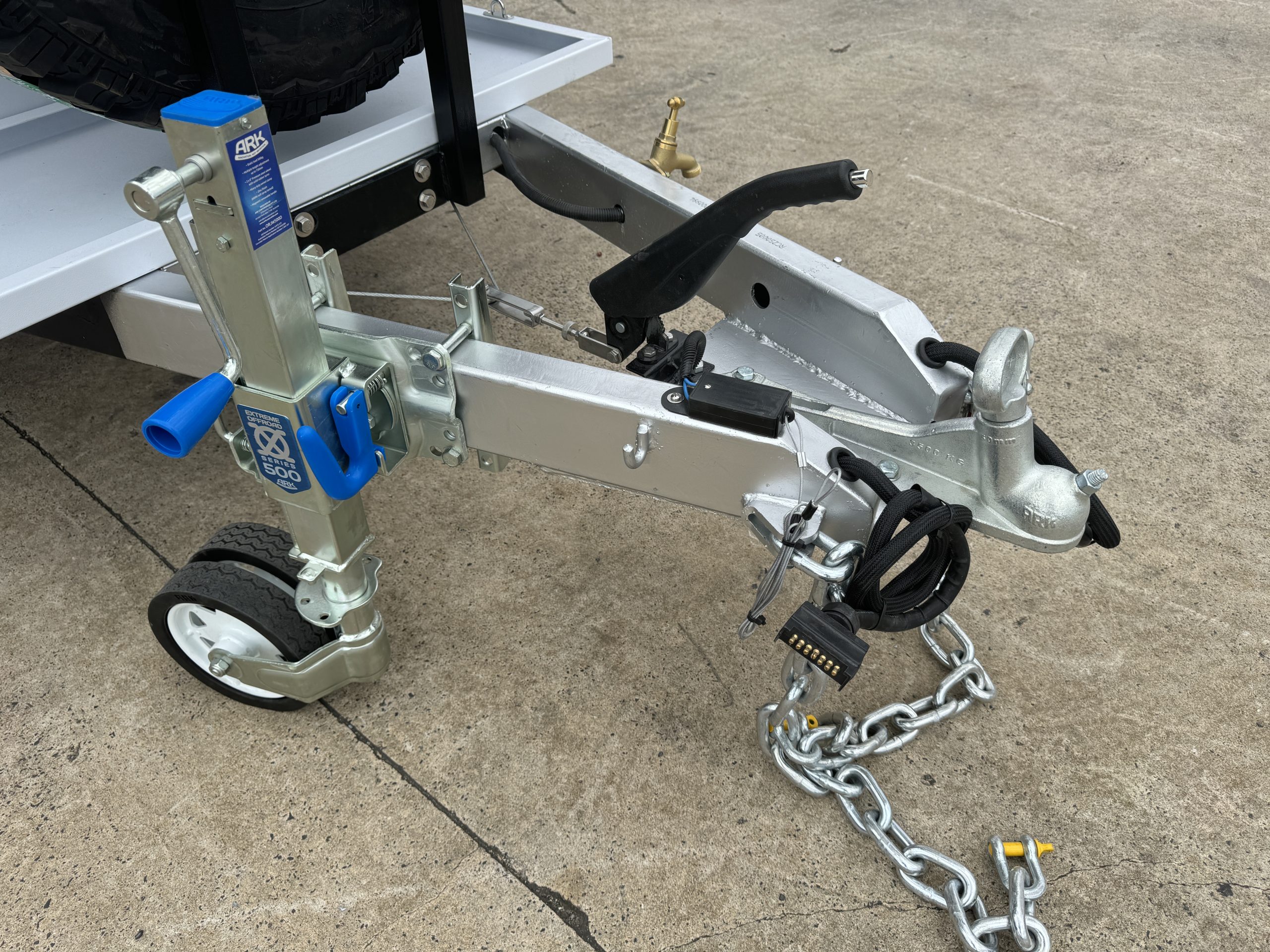

| Jockey Wheel | ARK500 – free upgrade |
| Colours | Matte White, Matte Black, Grey |

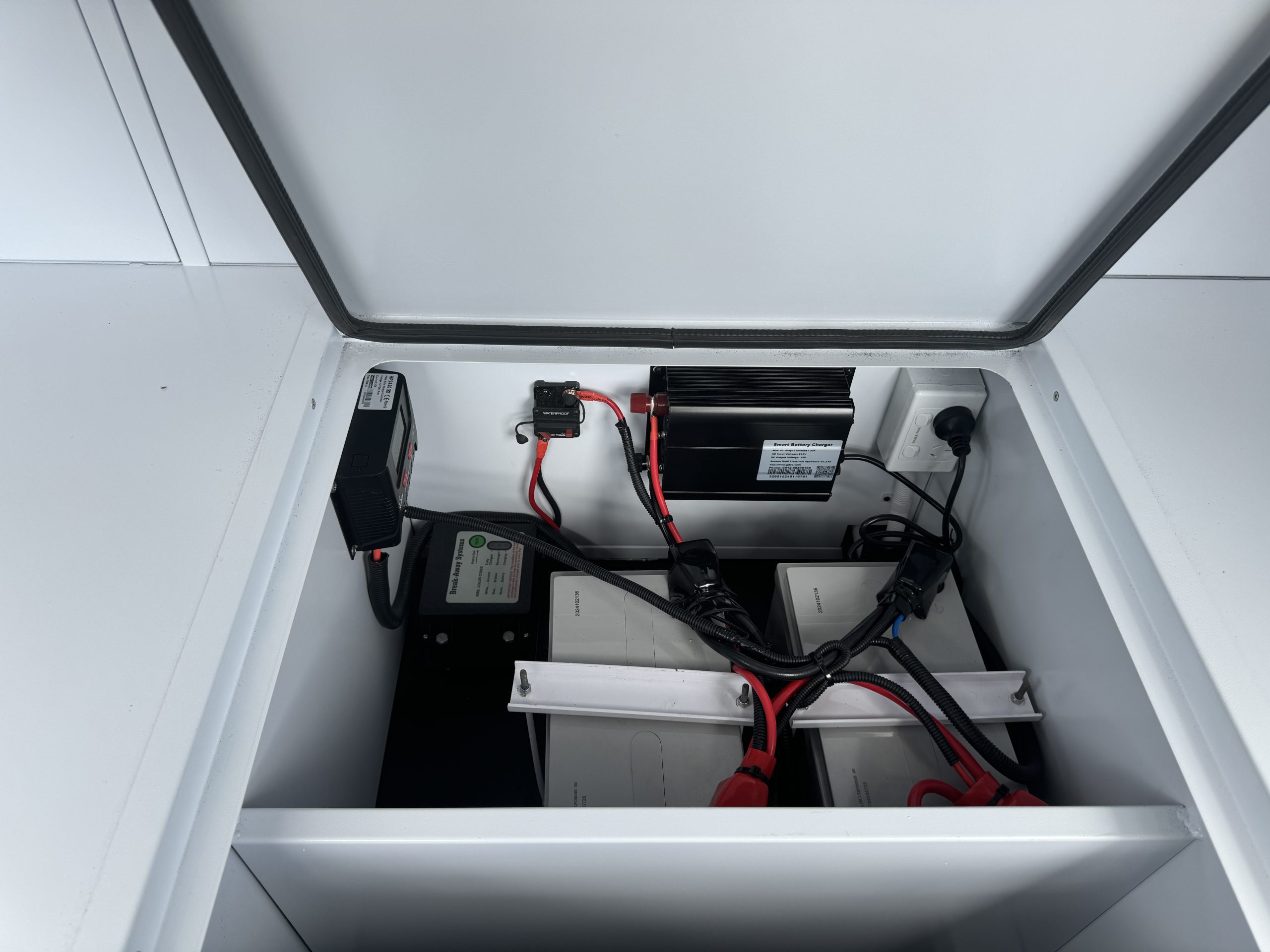

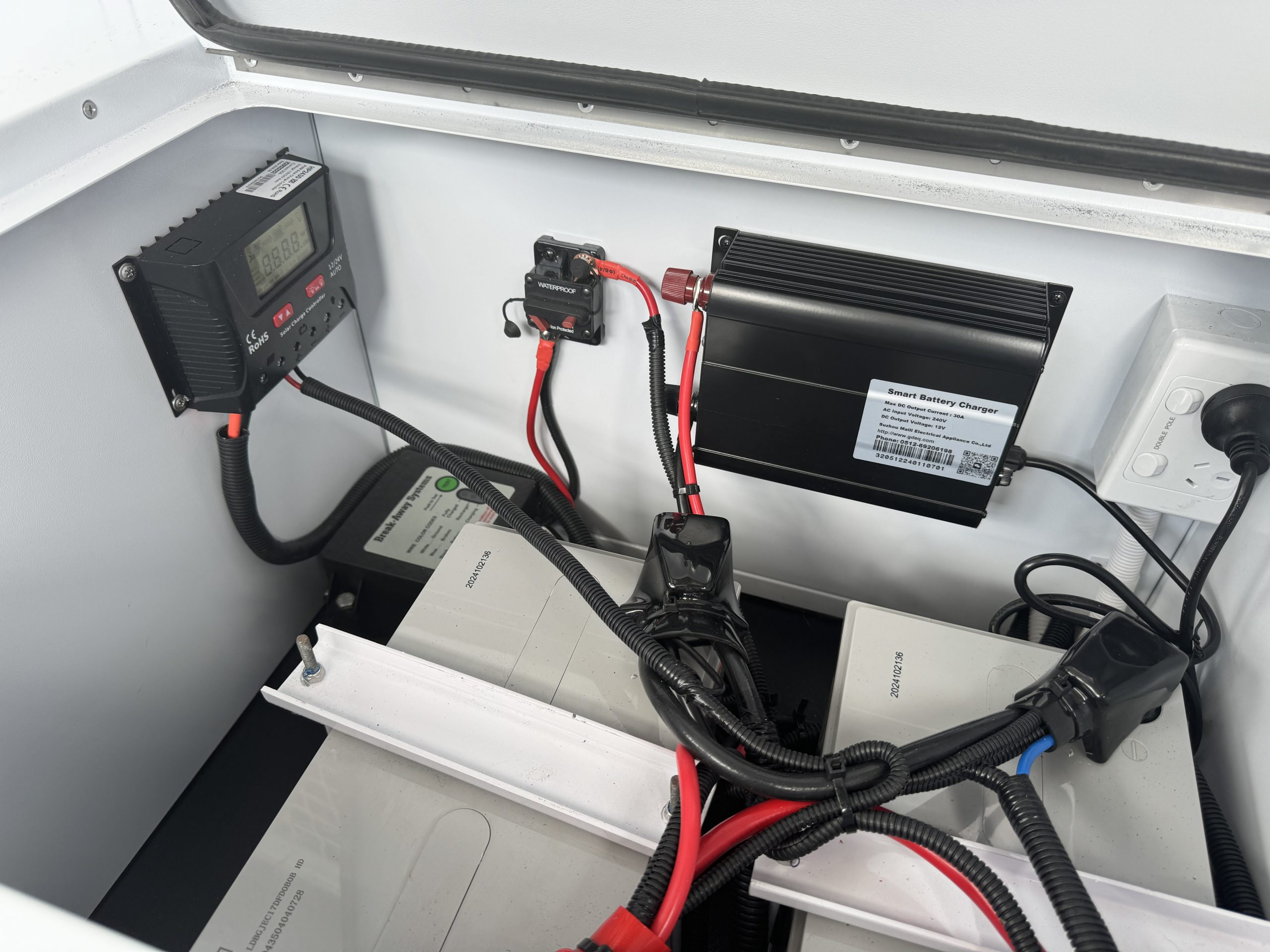

| Batteries | 2 x 100Ah |
| Solar | 2 x 110W solar panels mounted on slides to get more sun on-site |
| Inverter | 2000W pure sine wave smart inverter |

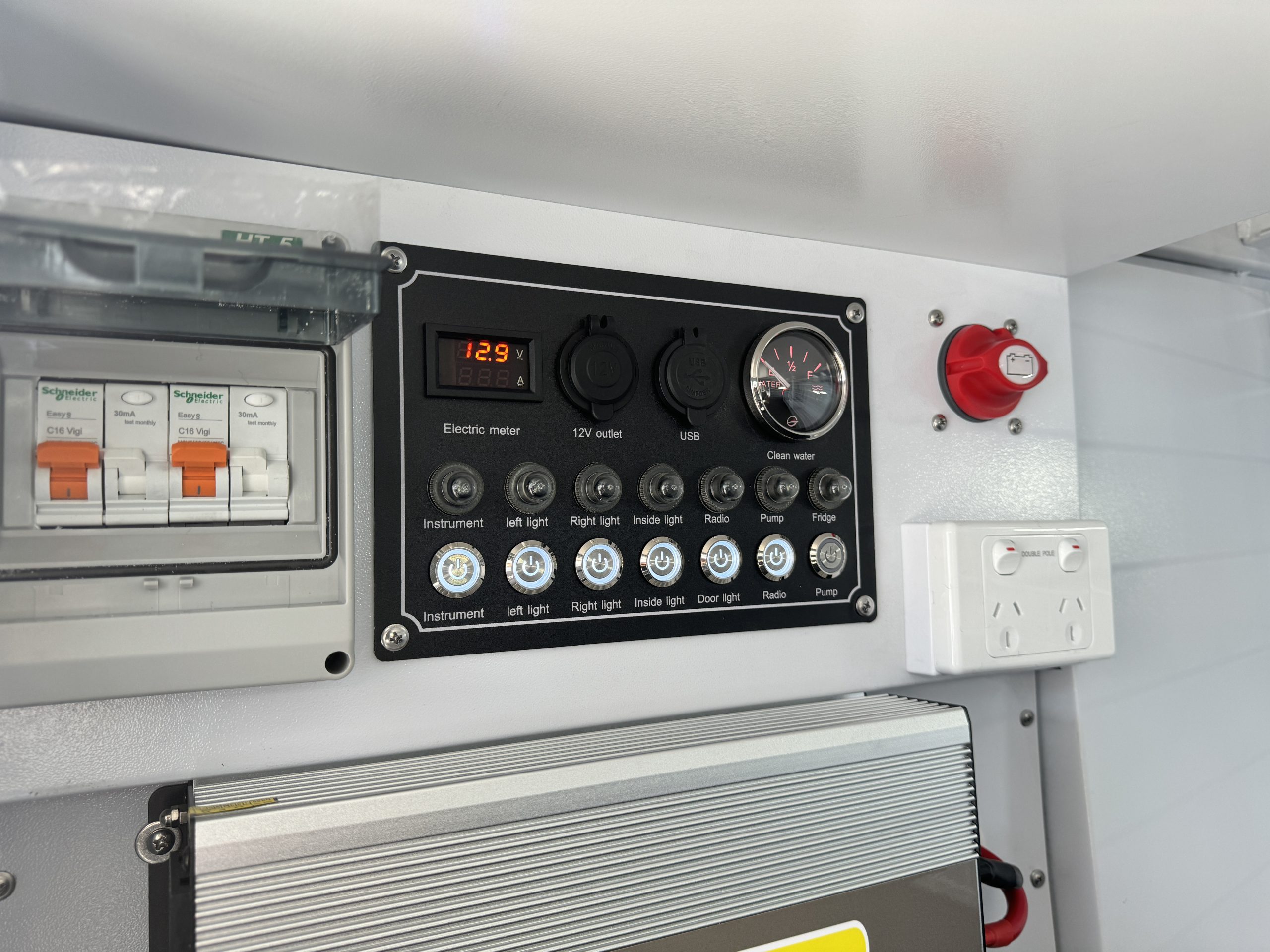

| Power Outlets | Double GPOs, USB phone charger, 12V charger and Anderson plug all included |
| Audio | Power outlets with 2 speaker radios |
| Lighting | LED lighting inside and outside |
| Water Tank | 70L on a 12V pump with tap |
| Water Plumbing | Tank runs inside the chassis and sits on the left-hand side |
| Water Gauge | Level indicator found within the compartment |
| Drawbar Tap | High-pressure tap mounted to the drawbar |

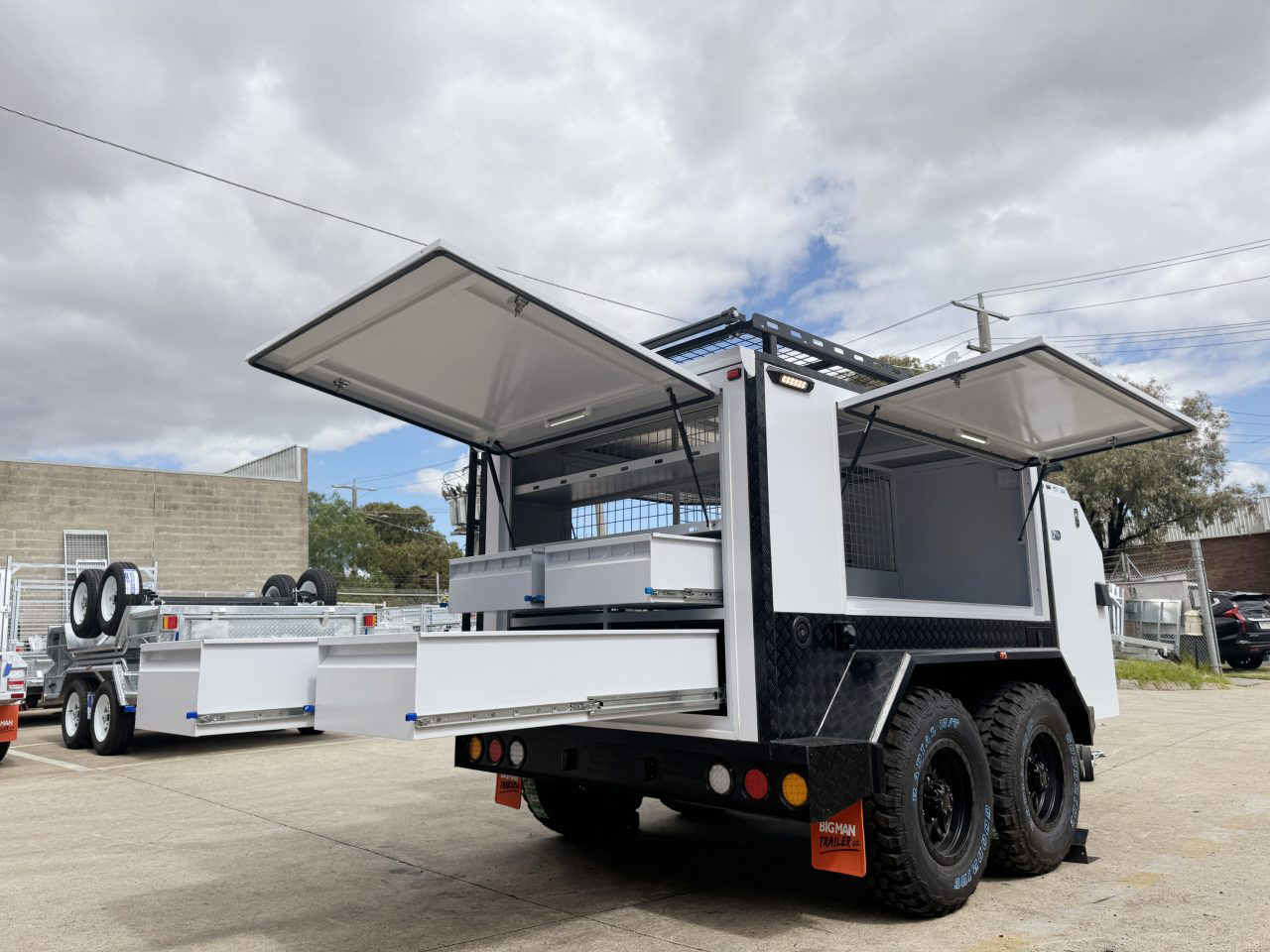

| Rear Trundle Drawers | 1900mm long |
| Ladder Roller | Rear load ball bearing ladder roller |
| Roof Access | Heavy-duty built-in ladder |

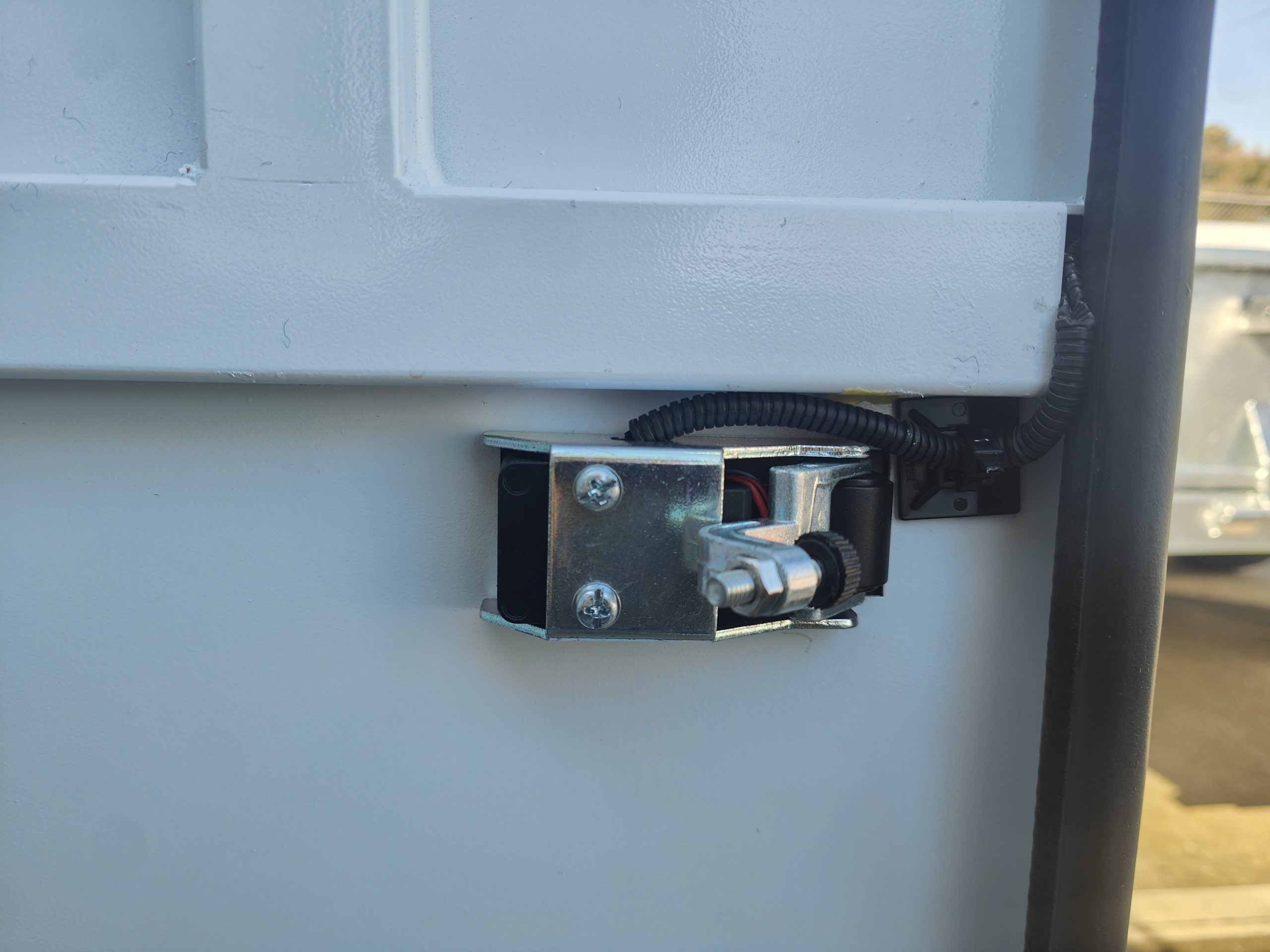

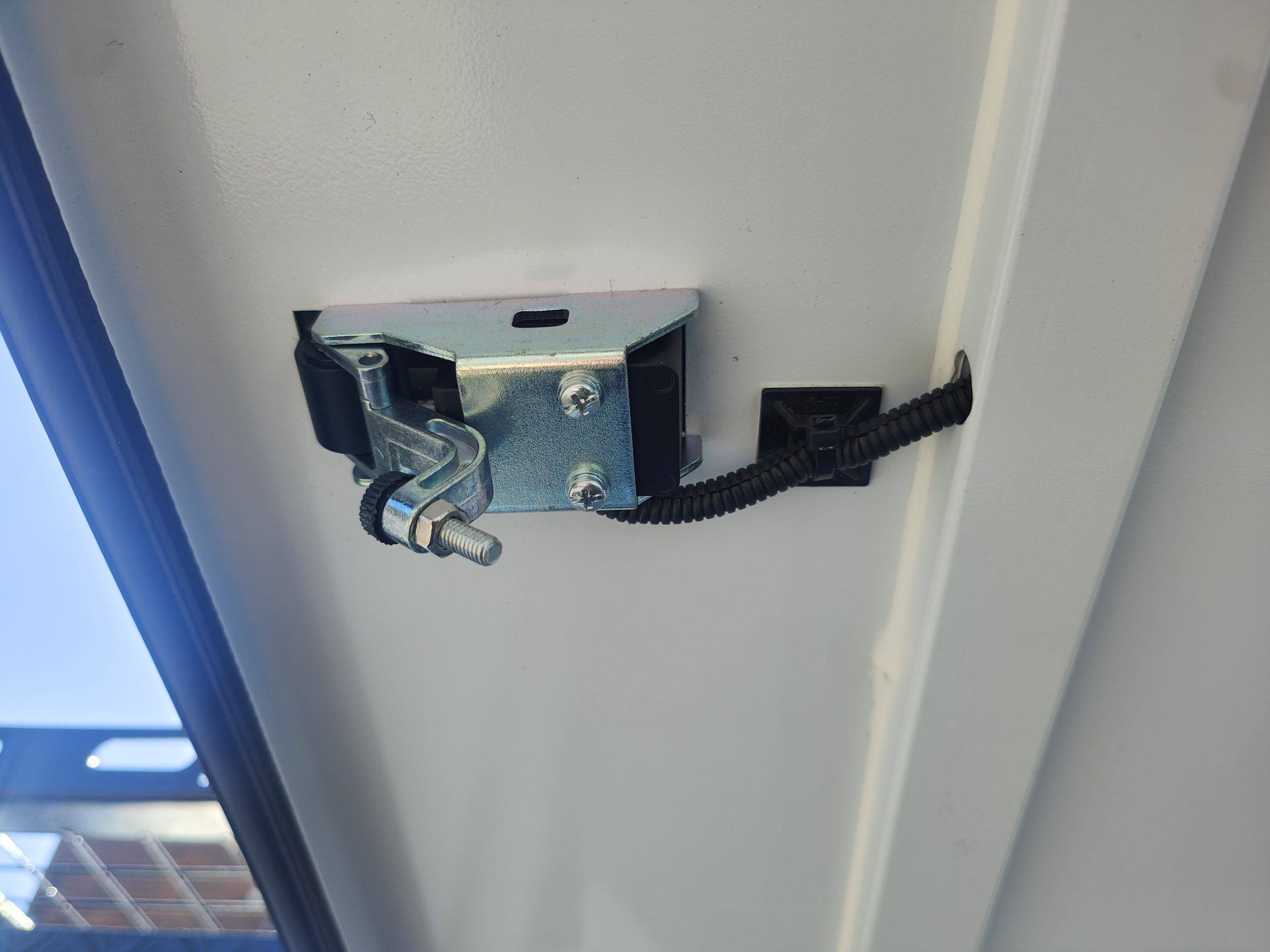

| Locking | Compression press-release locks with Central Locking System |
| Doors | Gas struts fitted to all doors |
Finance Options!
You are able to leave a 20% deposit, otherwise our team have multiple brokers able to get the products in your hand whilst you pay how you want to.
Storage Features
- Main compartment area, left side – 1850 (W) x 810 (L) x 610 (H)
- 3 x drawers in the main compartment area – 480 (W) x 740 (L) x 200 (H) each
- Left side slide-out storage – 670 (W) x 1090 (L) x 660 (H)
- Left side additional compartment above the slide-out storage – 670 (W) x 760 (L) x 380 (H)
- Main compartment area, right side – 1930 (W) x 810 (L) x 850 (H)
- Right side toolbox storage – 670 (W) x 550 (L) x 700 (H)
- Right side additional compartment above the toolbox storage – 670 (W) x 870 (L) x 340 (H)

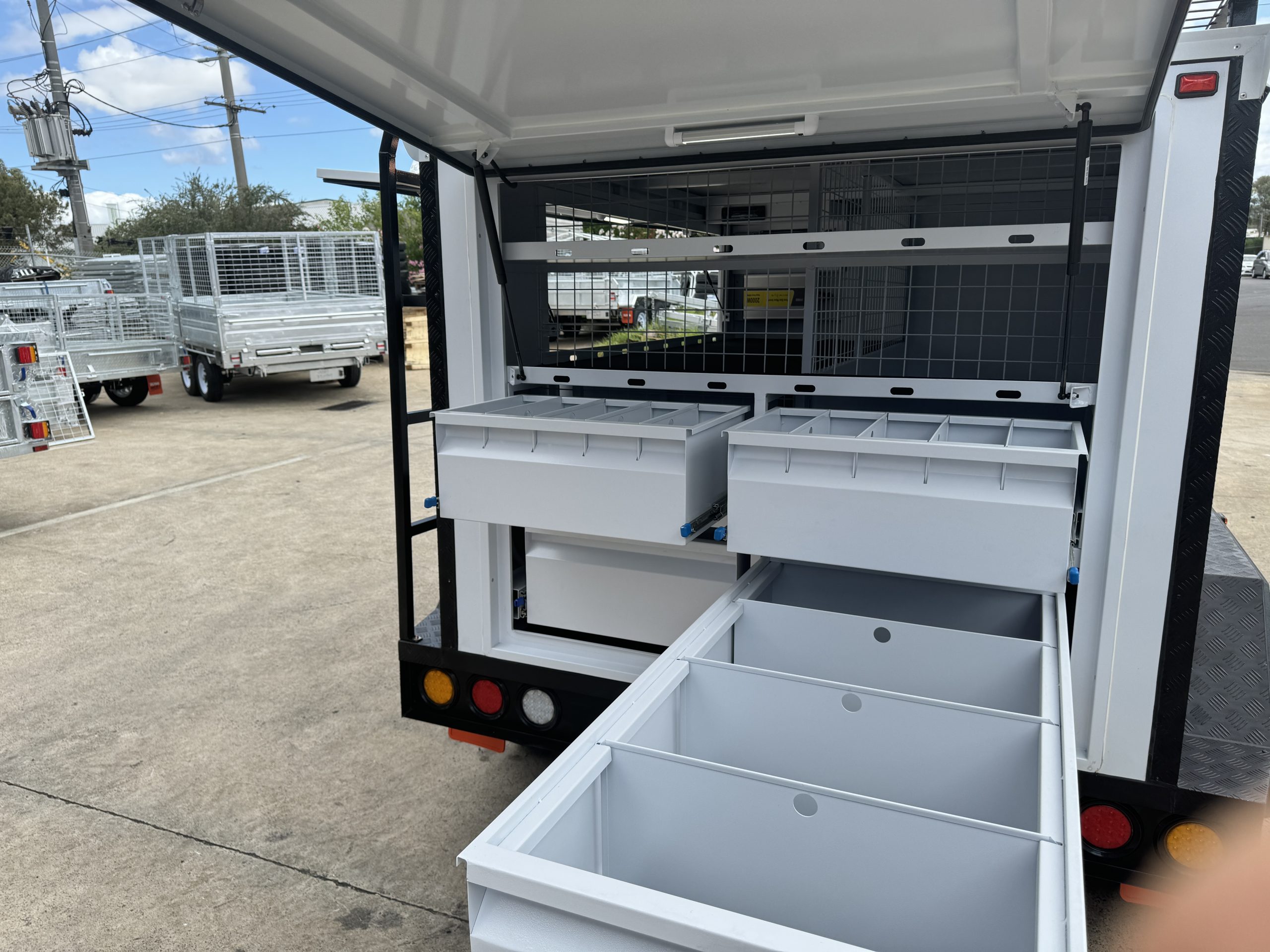

- 2 x shelves located at the rear – 1680 (W) x 400 (L) x 220 (H)
- 2 x pull-out drawers located at the rear middle – 570 (W) x 330 (L) x 210 (H)
- 2 x pull-out drawers located at the rear bottom – left 570 (W) x 1900 (L) x 360 (H), right 570 (W) x 1240 (L) x 360 (H)
- Power outlets with 2 speaker radios
All dimensions in mm.
